Prisma Petal Bambu Lab Led Kit Version

Designer

ModularMapping

Designer relation

Followed

Kategori

Household

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

Patreon

Først set

2026-07-14 16:37

Sidst set

2026-09-15 20:28

Tags

hook organizer box stand gradient ams lamp toy holder mount storage

Beskrivelse

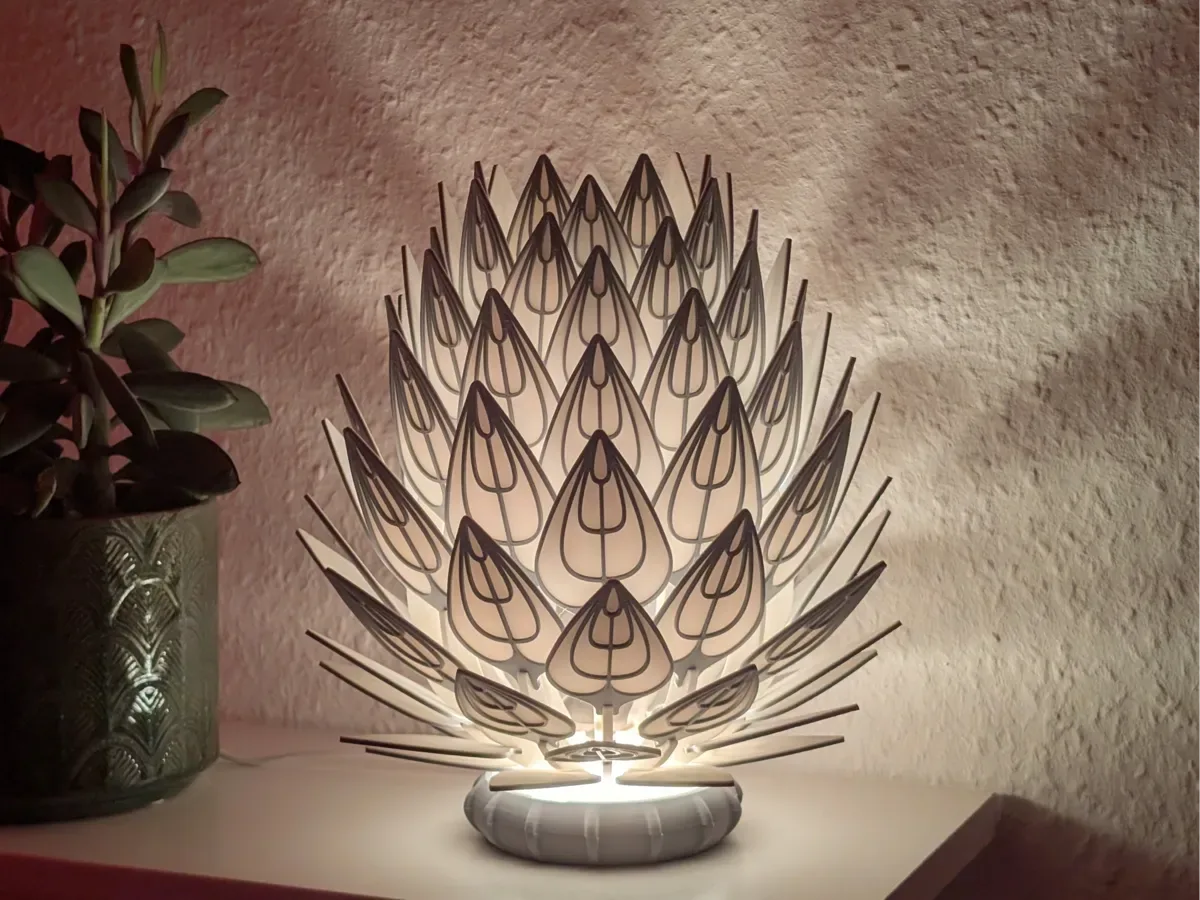

This is a modified Version of the Prisma Petal V2. Its designed especially for the Bambu Lab LED kit! It comes with all features the V2 has just for the LED kit! Assembly Instructions 1. Print the Required Parts Print the following parts (or all plates of the provided print profile): 1x Bambu Labe LED Kit Vase 1x Base/Window 1x Top Connector 7x Spline Even and 7x Spline Odd Leaf Parts: 21x Leaf 1, 28x Leaf 2, 28x Leaf 3, 14x Leaf 4 2. Prepare the base Pull the cable of the LED kit through the vase. Position the LED correctly 3. Assemble the Splines and Leafs Attach all splines (Spline Even and Spline Odd) to the Window/Base and put the top connector ring on top of the splines. Clip the leaf parts to the splines: Sort the leafs by size: The smallest is Leaf 1, and the largest is Leaf 4. Attach the leafs in the following order: For Spline Even: 1 - 2 - 3 - 4 - 3 - 2 - 1 For Spline Odd: 1 - 2 - 3 - 4 - 3 - 2 Start by inserting Leaf 1 (the smallest) into the top slot of each spline. 4. Final Assembly Place the base on top of the vase. Turn it by 30 degree to secure it in place. There you go! Hope you will have fun with this build and the lamp! If you have any suggestions or questions feel free to write me! Id love to see some pictures of your build if you happen to print this! I plan to make some variations of the leafs and the base in the future, so come back again at some point ;) If you want to support me further or want to sell all my models commercially, check out my PATREON! Or if you want to support me once, buy me a coffee ☕💡 Membership You can now subscribe to my Membership program to support me or to get access to commercial use of my models! Thanks for all your help! Join Boost Me (for free) If you like this model, consider giving me a boost! This really helps putting this much work into the designs ;) Boost Also have a look at my other lights, some are 100% 3D printable! Water Lily Lamp Shade PrismaPetal V2 - A Fully 3D Printed Lamp Orbiflora - A 100% 3D printable Lamp! Grid Light Icosaeder Christmas Light
