Support Panda Touch P1s P1p

Designer

mc2.project3D

Designer relation

Ingen

Kategori

3D Printer

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

MakerWorld Commercial License

Først set

2026-07-14 16:37

Sidst set

2026-07-14 16:37

Tags

panda touch case accessory p1s p1p support Bigtreetech bambu print functional electronics check display

Beskrivelse

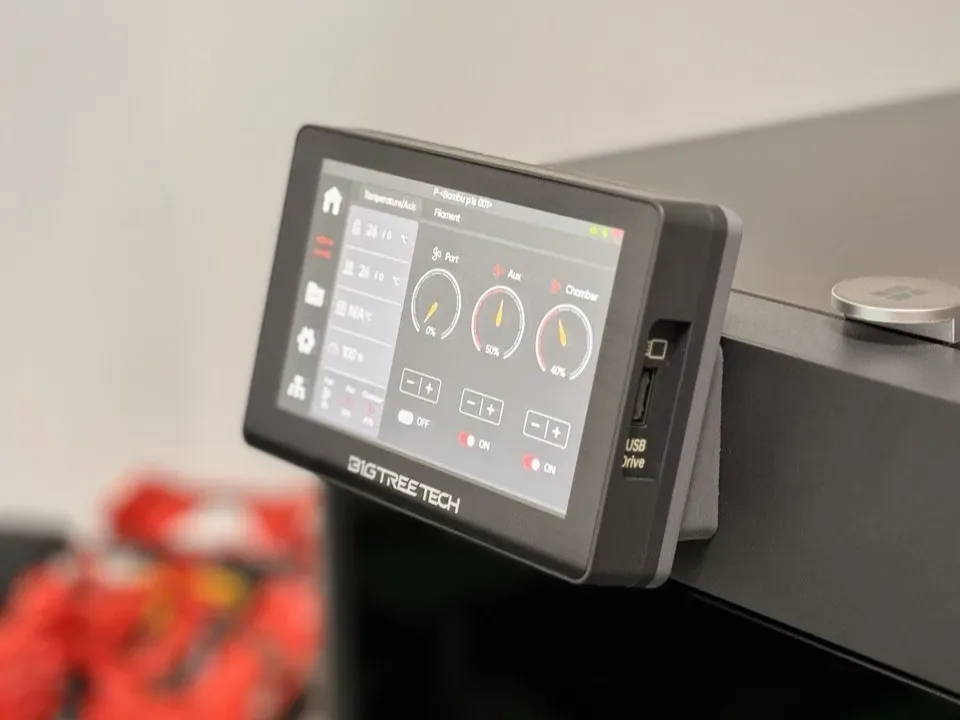

Here is my Panda Touch stand, it was more difficult to do the procedure than to assemble this stand. Requires mechanical components such as nuts and screws, has a list. Required components: **Accessories: -Panda Touch -USB type C cable length 200/300mm **Printed parts: - INCLINED BASE - PANDA TOUCH SUPPORT **Equipment: - 2mm Allen key - 2.5mm Allen key **List of screws/nuts: - Nut M3 / quantity four pieces (AB005) - M3 Allen screw, stem length 8mm / quantity six pieces (AA037) - M3 conical head Allen screw, stem length 10mm / quantity four pieces (AA087) Disassembly instructions: I advise you to turn off the power to the printers first STEP 1 / 6: -Remove the display -Remove the connector STEP 2: -Remove only this 2.00mm Allen screw STEP 3: -Drop the body STEP 4: -Must leave the premises STEP 5: -pay attention to the cable STEP 6: -place them on top of the glass, balanced Assembly instructions: STEP 1 / 5: -If the cable doesn't fit, change the section, I used a cutter STEP 2: -bend the cable before inserting it STEP 3: -pass the cables inside the slot STEP 4: -reassemble the body STEP 5: -put the screw back Mounting the upgrade: STEP 1a /: -necessary components STEP 1b: STEP 2: -sort out the wiring, remember, you can use it whenever you want STEP 3: - insert the nuts on the seats STEP 4: -Assemble the stand, the screws thread into the plastic in this step STEP 5a: -Using the conical screws, mount the base of the panda touch -connect the cable USB C STEP 5b: -connect the cable STEP 6: -connect the USB cable to the printer STEP 7: -fix the cable YOU'RE DONE, YOU NEED TO SET THE POWER OF THE PANDA TOUCH If you leave me a Boosts I will be grateful, available for any clarification also on the Panda Touch. Good press from Mc2.Projectd3D
