Parametric Laptop Stand

Designer

Shapr3D

Designer relation

Ingen

Kategori

Gadgets > Computers

Licens

Creative Commons Attribution NonCommercial Creative Commons — Attribution — Noncommercial

$ ↺

Attribution påkrævet; kommerciel brug er ikke tilladt.

Designer commercial

None

Først set

2026-09-14 19:50

Sidst set

2026-09-18 08:10

Tags

parametric office functional desk print stand no pin hinge laptop fit snap adjustable hardware folding foldable in ergonomic riser place alternative

Beskrivelse

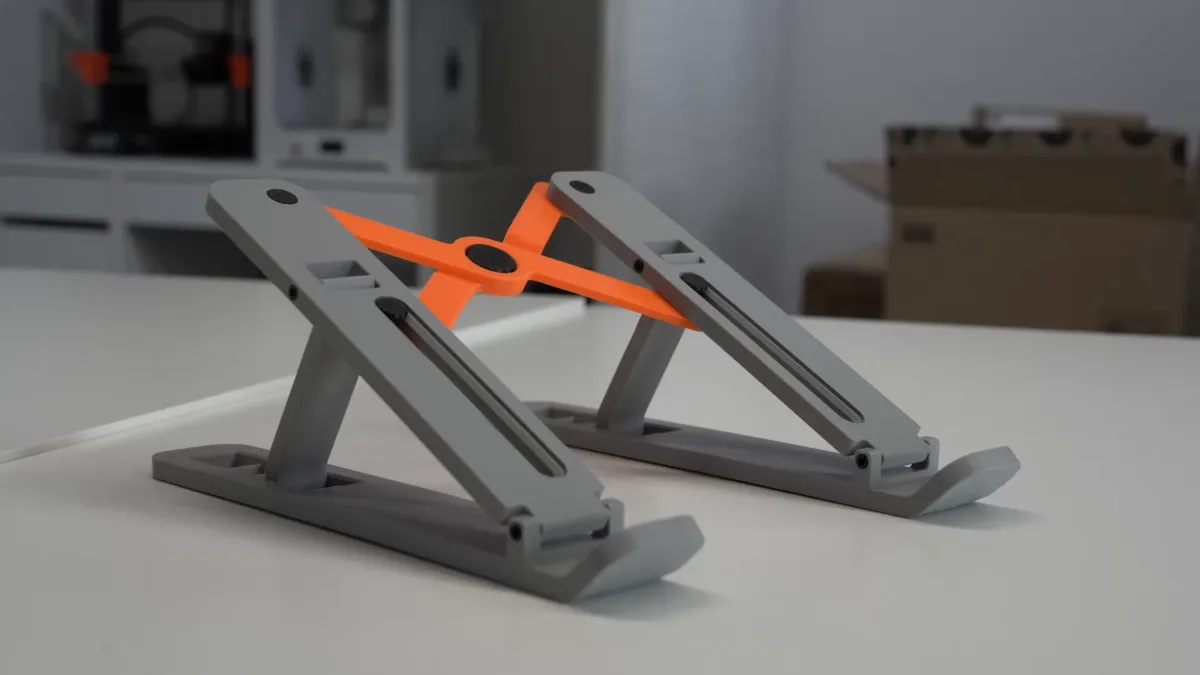

Fully parametric folding laptop stand designed from scratch in Shapr3D. Set your display size and the model updates automatically; a thickness variable lets you tune looks and material use. Adjustable height via angled notches with a guide channel, folds flat for storage. This is v2 after a full round of printed prototypes. Changes from v1: the snap-fit pins were replaced with elastic pins that act as their own spring (print these in PETG, not PLA), clearances were tuned by printing test samples in 0.025–0.05 mm steps, and the folding pin was relocated so the vertical supports no longer collide and the stand folds completely. All parts export straight from Shapr3D to PrusaSlicer. Print notes - Body parts: PLA or PETG, 0.2 mm layers, 15–20% infill - Elastic pins and retainer discs: PETG required (PLA is too stiff and won't seat properly) - Supports: reduce top interface layers and raise bottom contact distance for clean removal (settings in the article) - Pin clearances are 0.1 mm at the tip, 0.3 mm mid-shaft. Printer calibration matters here View model here: https://app.shapr3d.com/v/gn0mg3H7p0AlOWuX_fJpR Full article with print settings and assembly guide: coming soon Build Video: Modeling video: Coming soon
