Floating Chessboard Table

Designer

Josheh_3D

Designer relation

Ingen

Kategori

Toys & Games

Licens

Creative Commons Attribution NonCommercial ShareAlike Creative Commons Attribution-Noncommercial-Share Alike

$ ↺ SA

Attribution påkrævet; kommerciel brug er ikke tilladt; ShareAlike gælder for afledte værker.

Designer commercial

Patreon

Først set

2026-07-14 16:37

Sidst set

2026-07-14 16:37

Tags

chess chessboard table game gameboard games strategy side table big

Beskrivelse

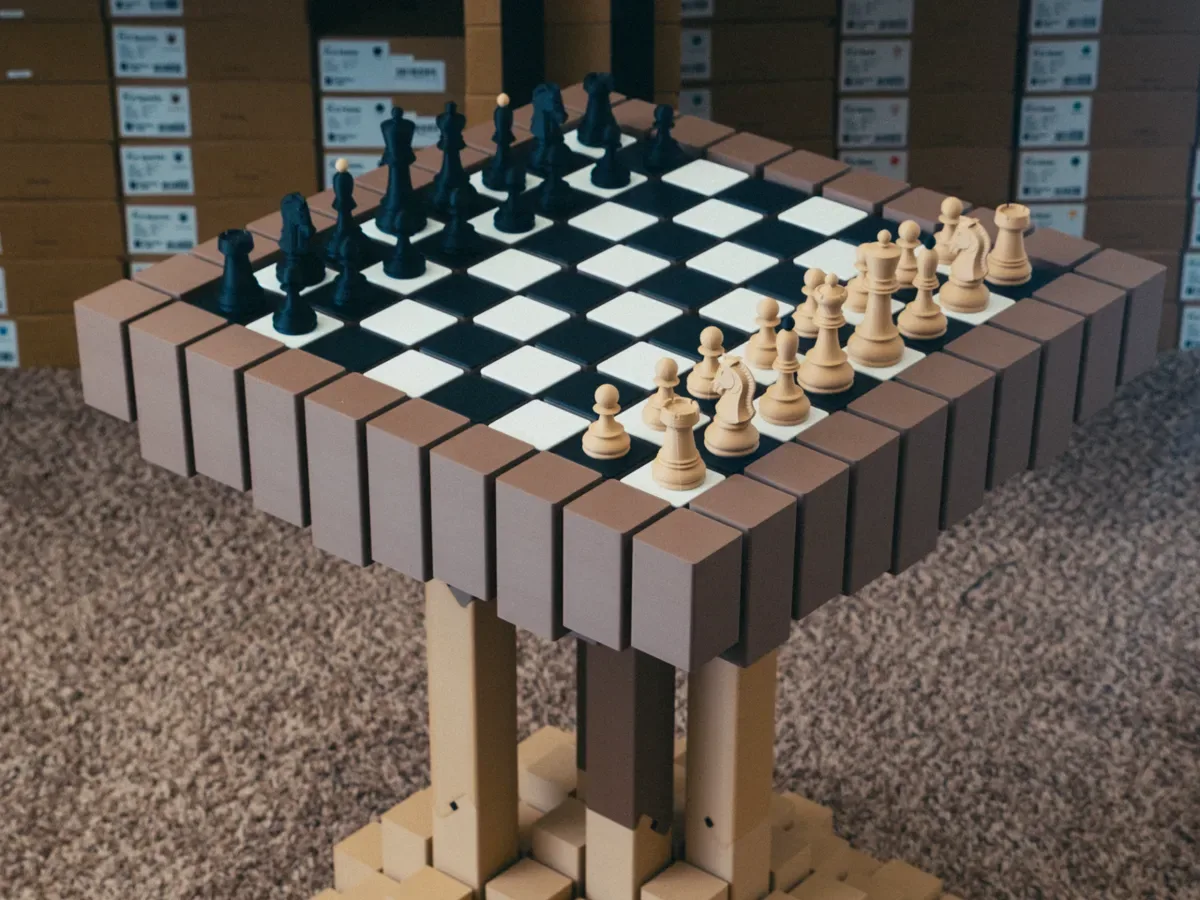

[Introduction] A Floating Chessboard/Side table. I've seen similar designs before in side tables, and in chess boards. I wanted to combine it all together into a full chessboard table, and to make the blocks look like they're floating independently of each other. The table is mostly fully 3d printed. The pieces uses dovetails to connect everything together, and then use clips secured with screws to help clamp and secure everything together. Included in the print profile is a test section you can print, to confirm the clearances work and you've got your filament dialed in. This is important! I goofed on one of the base sections with my filament selection, and it printed slightly over extruded. Made me realize the importance of making sure you've got the right settings and have things dialed in. The top and bottom are easy to separate. The joint for the connecting stems is based off of a design popularized by NeedItMakeIt. You just have to remove the pins, and away you go! [Shoutouts] As mentioned, the joint for the table leg/stems was inspired by NeedItMakeIt's exploration on the subject. The chess pieces pictured are from ezee.one and can be found HERE. I really like this set! [Hardware & Filament] These are the filaments that I used, however I'd recommend using a PLA Plus/Pro or PETG, for added strength. You'll need about 17ish rolls of filament. 9, there abouts, for the top, and 6 for the bottom. It's about a roll and a half for each section, with 8 major sections plus all the supporting pieces. About a half a roll for the black/clips, and 150-160ish grams for the white. My print profiles tend to favor strength/quality, so you may be able to optimize things a little more towards your liking and filament choices. Featured Filament: Bambu PLA Matte Dark Brown Bambu PLA Matte Latte Brown Bambu PLA Matte White Bambu PLA Matte Charcoal Hardware: (Full disclosure, I am part of the Amazon Affiliate Program. All amazon links are affiliate links. I earn a small commission from these links without any added cost to you. These links help to support me so I can bring more content for free! I use screws from Bambu's Makersupply, and mainly design around those. However, you can purchase self tapping screws from amazon if that's easier for you. You can use screws in lengths from 12x16mm, such as these from Amazon US, Amazon US, or Amazon US. You could also purchase an assortment like this Amazon US, and use a mix of screws, and retain the others for other projects of mine you print!) 128 m3x14mm self tapping screws (You can get away with a little less, but to secure every screw hole, you'll need 128 screws total. You can use lengths from 12 to 16mm). [Assembly] You'll want to print the test sections first to make sure everything fits with the given clearances of the model. You may need to tweak your filament settings, do a flow calibration, if you're finding the fit to be too tight. It shouldn't be a struggle to slot the pieces together. It's the clips job to secure everything tightly. The top assembly and bottom are the same. Use the dovetails to piece all the main sections together. For the top, there's an added brim. First, slide the mid sections in, and then slide on the corner sections. The clips are used to secure everything together. They can be a little tricky to get into place, so have patience. Each clip uses 8 screws, although the use of 8 screws all together is optional. I'd recommend it for the mid sections, but for the brim you can skimp a little, since there's less structural stresses on it. All together, if one puts screws in every hole, it'll require 128 screws. The top uses 12 clips, while the bottom only uses 4. The holes are sized for M3 self tapping screws between 14-18mm. The legs are held in place with 2 sets of pin for each leg. The pins are a mirror of each other and wedge shaped. Insert the pins on either side and push them in until they are wedged into place. Removing them is the reverse process. Assembly of the
