Small Decorative Lamp For Led Kit 001

Designer

Greg3D

Designer relation

Ingen

Kategori

Household

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

None

Først set

2026-07-14 16:37

Sidst set

2026-09-15 20:28

Tags

Lamp decorative LED LED 001 LED Kit led kit 001

Beskrivelse

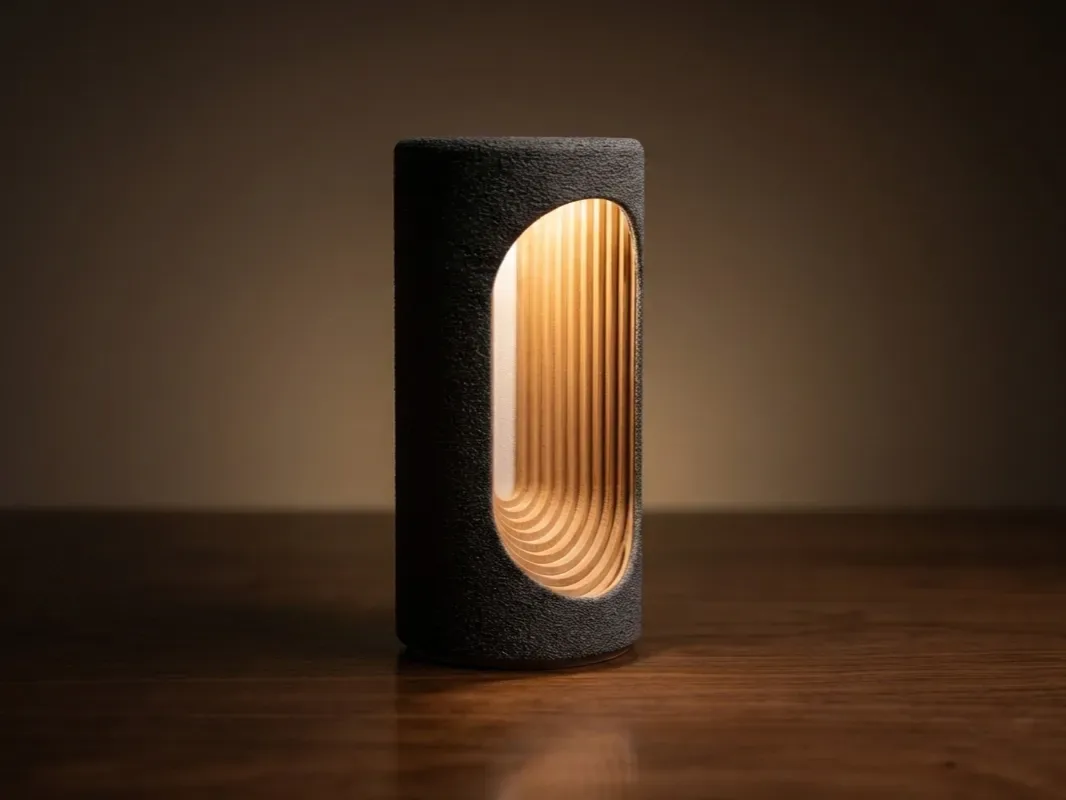

A small decorative lamp that uses LED Kit 001 (or one of its derivatives). There 2 print profiles. One for a smooth housing and another one with fuzzy skin enabled (as seen in the cover picture). The one with the fuzzy skin is much slower to print. The front part of the insert is printed by default with 0.2 mm layer height, if you want it to look smoother, lower the layer height to 0.08 mm (this is what is used on the photos). The fuzzy skin print profile has the layer height already set to 0.08mm as it will print slow anyway. Assembly : Assemble the 2 halves together, install the lamp at the top, route the cable in the groove on the back (refer to the 3rd picture). Align the notch on the cover with the groove and slide the cover over the assembly (there 2 small rails to make sure the cover and the insert are aligned). Grey and light brown + white is a colour combination that works well. If you find another one that looks nice, don't hesitate to share your print in the comments. If you need to extract the insert : put your index and middle finger on the bottom edge of the cover and push the insert with your two thumbs.
