Abstractica 1 Parametric Wall Art

Designer

3dprintedartuk

Designer relation

Ingen

Kategori

Household

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

Patreon

Først set

2026-07-14 16:37

Sidst set

2026-09-15 20:28

Tags

home decor wall art wall art 3d 3d wall art parametric art parametric design

Beskrivelse

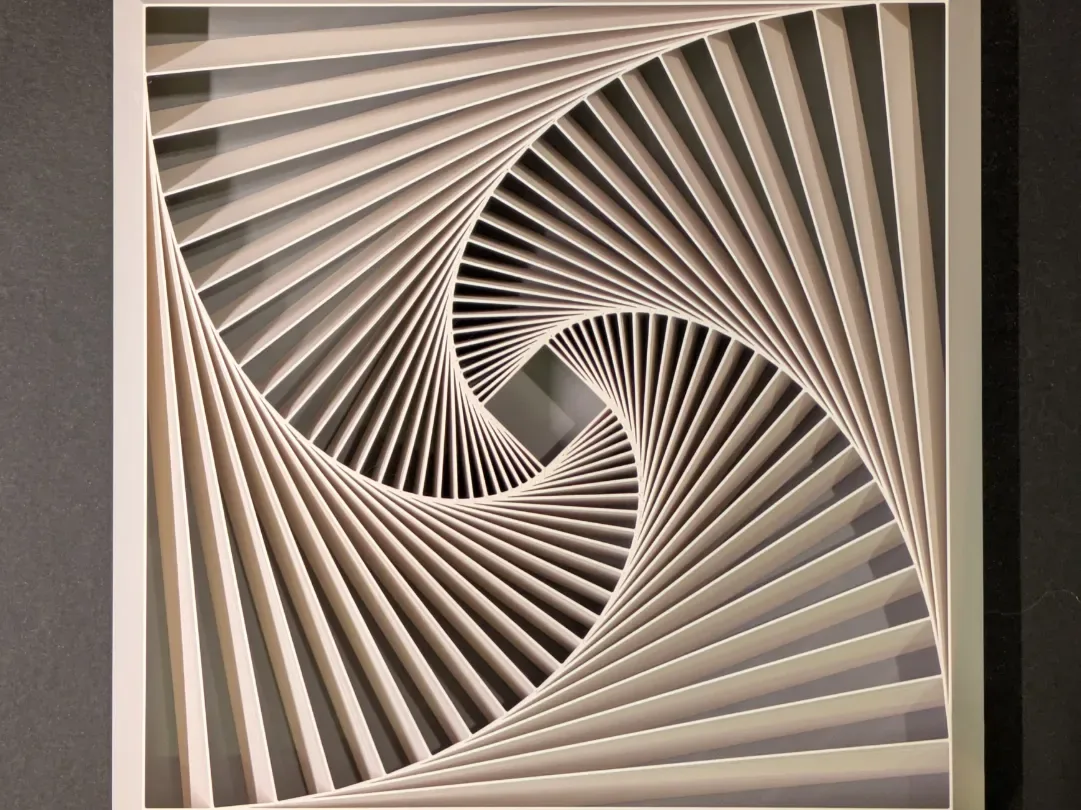

Abstractica #1 – Geometric Spiral Wall Art Abstractica #1 is a mathematically-inspired piece of 3D-printed wall art that explores the intersection of code and physical form. Designed entirely in OpenSCAD, this piece utilizes a nested pursuit curve geometry to create a mesmerizing visual vortex. The design transitions from a rigid outer square into a fluid, curved central "well," creating dynamic shadow play that changes depending on the light source in your room. The Design Style: Minimalist / Modern / Geometric Dimensions: 240mm x 240mm x 25.6mm (Perfectly sized for 256x256 build plates). The Vibe: An elegant "impossible" curve created entirely from straight-edged rotations. Base layers: Can be printed in a different colour to make it really pop! Print Recommendations To get the cleanest lines and the best shadow depth, I recommend the following settings: Material: PLA (Matte looks particularly striking for architectural pieces). Layer Height: 0.2mm (Standard) or 0.16mm (for smoother transitions on the slopes). Wall Loops: 2 (Ensures the thin vertical ribs are sturdy). Infill: 0% - not required Top Surface: Use "Monotonic" or "Hilbert Curve" for a high-end finish on the frame faces. Display Tips This piece looks best when mounted in a location with directional lighting (like a side lamp or near a window). The 25mm depth creates deep shadows that shift as you move around the room. It features a flat back, making it easy to mount using command strips or a small finishing nail. Fits nicely in IKEA Sannahed frames.
