Hiking And Cycling Map Generator Trailprint3d

Designer

EmGi

Designer relation

Ingen

Kategori

Art

Licens

Creative Commons Attribution

$ ↺

Attribution påkrævet.

Designer commercial

Patreon

Først set

2026-07-14 16:37

Sidst set

2026-07-14 16:37

Tags

miniature hiking map customizable blender generator cycling addon trailprint3d tool relief reliefart gps data

Beskrivelse

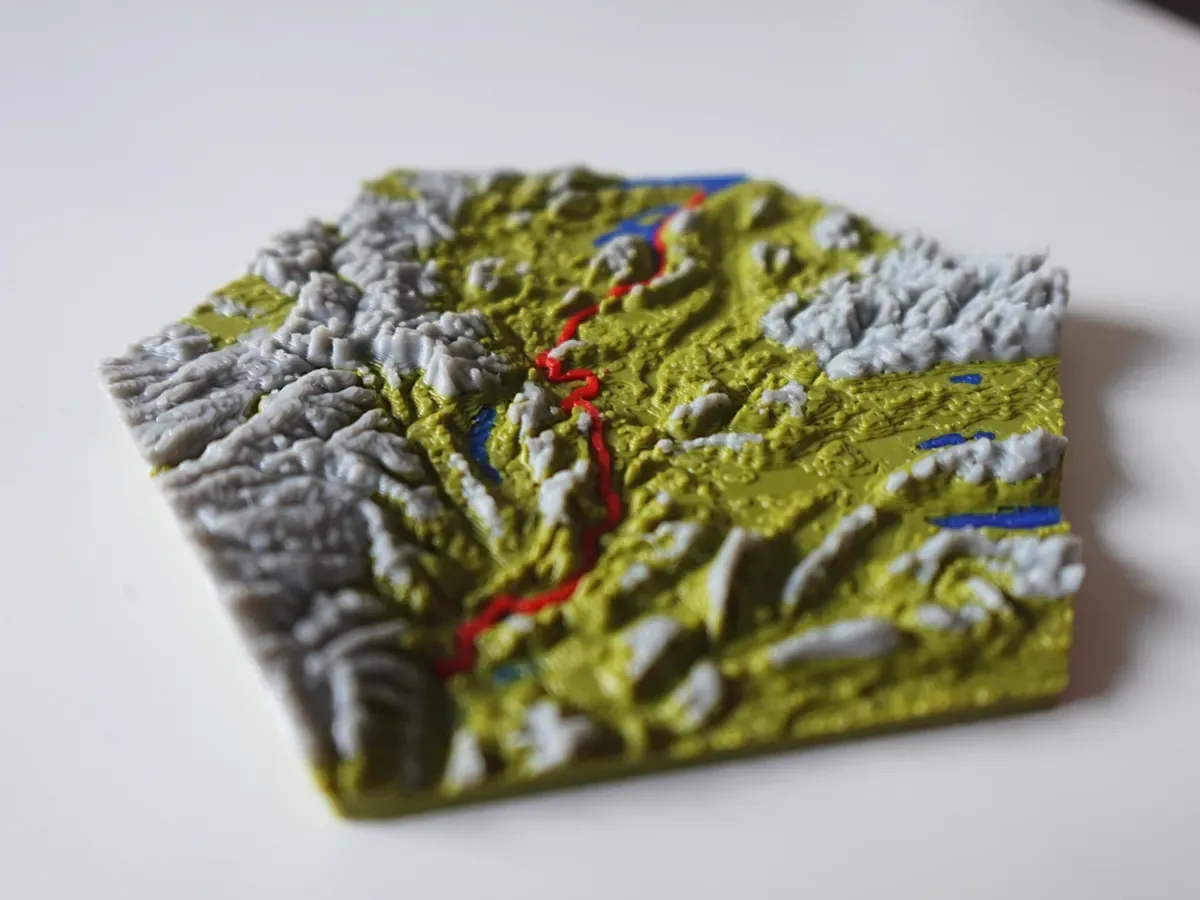

IMPORTANT CHANGES! (24 April 2026) Makerworld no longer allows to upload .py files. I created a website from where you can download the latest version for free without having to create a account: TrailPrint3D.com Boost Me (for free) Support my work by Boosting this Model Boost INTRODUCTION This is a Addon for Blender that allows you to create Miniature Maps of your adventures from just the GPX file that you can download from Komoot, strava, garmin or other tracking apps! SUPPORT MY WORK PATREON Buy me a Coffee Get Help and share your Creations on my Discord server: Join Discord HOW TO INSTALL Please Watch the Video on Top first as it contains a full Installation Guide and Addon Tutorial Download the latest Blender version from https://www.blender.org/download/ Download the Addon (.zip file) from https://trailprint3d.com Open Blender, and go to Edit → Preferences Go to the Addons tab, Click the top right Arrow and then “Install From Disk” Select the .zip file file you downloaded from TrailPrint3D.com Close the popup window If the sidebar is not showing, Press “N” If “TrailPrint3D” is displayed there, the installation was a success PARAMETERS Generate Button: Generates the Map with your Current set parameters File Path: The .GPX file you want to import. Click the little folder to open a File Explorer Export Path: The Folder the STL files will be saved Name: The name of the save file. Keep it blank to use the name of the file Shape: The shape of the Map Object size: The size of the Map in mm Resolution: The “Quality” of the map. Higher = Better quality but also longer Generating times. i reccomend a maximum of 6 or 7 ( 7 takes up to 10 minutes). Elevation scale: Multiplier to the elevation. Use it to make flat maps more interesting or to flatten down steep landscapes Path thickness: the thickness of the path SingleColorMode Trail: Creates a cutout of the Trail in the map and the Trail as a part that can be printed separately Path scale: The size of the path compared to the map. If your object size is 100 and Path scale is 0.5, then the path is about 50mm big. if pathScale is 0.75 its about 75mm big. Advanced Parameters (In the Advanced Tab) Export STL/OBJ/3mf: Export the Currently selected Object as STL or OBJ if it has materials applied to it (3mf if you have the 3mf Addon by Clonephaze installed. Can be installed from within the Addon) Disable Auto Export: Dont create Files with each Generation Map : Parameters about the Map minThickness: Thickness of the thinnest point of the map in mm ShapeRotation: Rotates the shape. Useful for shapes like the hearth where you need to rotate the shape so the path fits perfectly on the map xOffset: Offset of the map in X Direction to the center of the path yOffset: Offset of the map in Y Direction to the center of the path Snap Trail to Terrain: Ignores the elevation from the .GPX and projects the Trail onto the map Fixed elevation Scale: The difference between the highest and lowest point on the map will be 10mm Tolerance: The tolerance for Single-color mode of the Trail and the Elements Multi Generation (Patreon Version): Allows you to Generate a Map from multiple .GPX files Include Elements: Element handling: Paint on Map: Paint the Colors directly onto the Mesh → Default Single-color mode: Generates the Elements as separate objects with cutouts in the map Separate objects: Generates the Elements as separate objects that can be placed “above” the map in your slicer Water & Ocean: Ponds & Lakes: Include Ponds & lakes Big Rivers: Includes big main Rivers Small rivers: Includes every small river (Only use this for smaller maps) WaterTreshold: polygons with a surface area thats smaller than the Treshold will be ignored (to remove and filter out “noise”) Include Ocean: Generates and colors the Ocean Flip Ocean Side: Ocean calculation is still not perfect. sometimes its mirroring it and the land gets viewed as the ocean. in that case enable this Forests/Scree/City Boundaries/Greenspaces/Farmland
