HiveBox - Universal Modular Hexagonal Organizer (Single-Cell Honeycomb System)

Designer

Vinors3DLab

Designer relation

Ingen

Kategori

Household > Office

Licens

Creative Commons Attribution NoDerivatives Creative Commons — Attribution — Noncommercial — NoDerivatives

$ ↺

Attribution påkrævet; modificerede/afledte versioner må ikke deles.

Designer commercial

None

Først set

2026-07-10 09:40

Sidst set

2026-07-11 12:10

Tags

Household Office

Beskrivelse

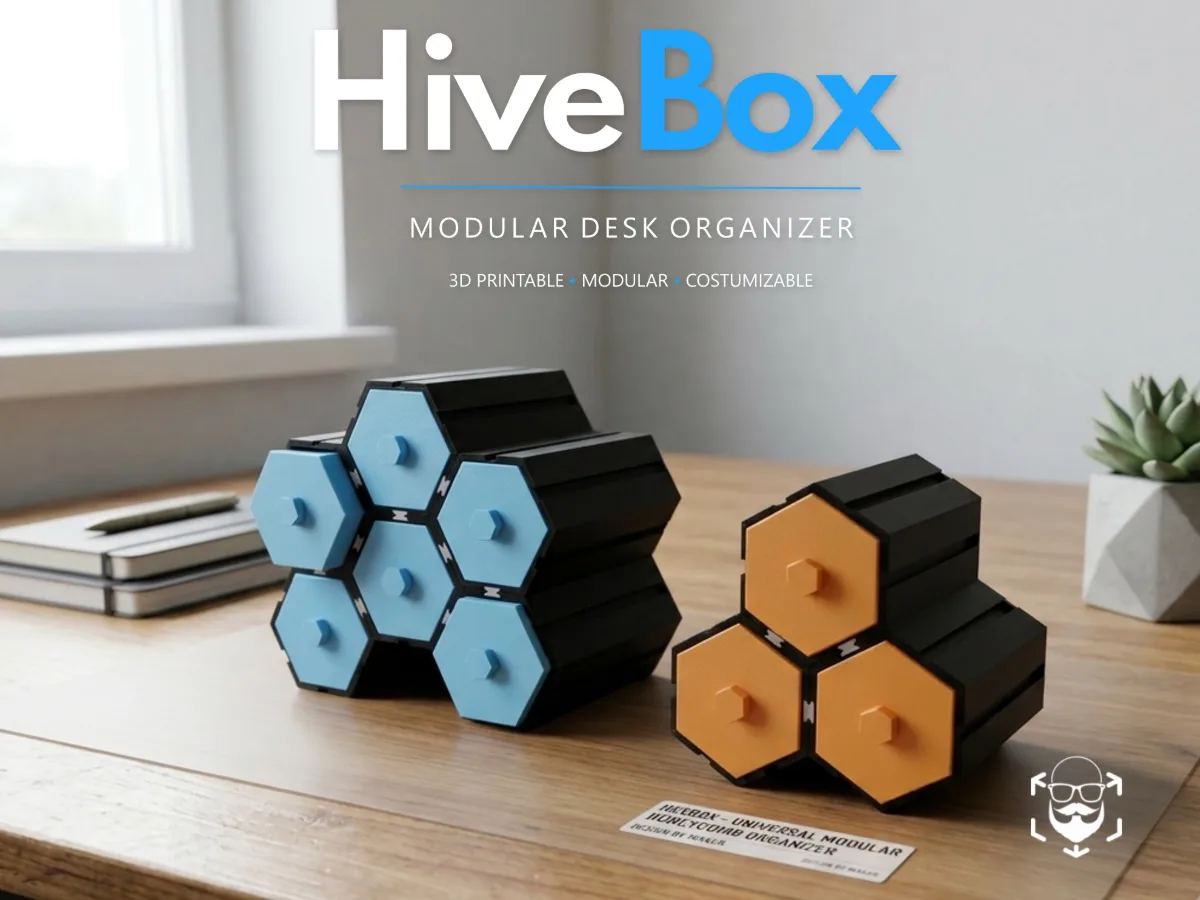

Tired of multi-file modular organizers that take forever to sort and print? Welcome to the ultimate workspace evolution! This premium, honeycomb-inspired storage system has been completely redesigned around a single, universal outer case . Thanks to its perfect geometric symmetry, the exact same module can be oriented either flat-side-down or rotated vertex-down to fit your style. Every face of the hexagon features a high-tolerance slot. Simply slide in the custom H-shaped joining strips to lock the modules together into an incredibly rigid, wobble-free structural bond. Depending on how you decide to stack your grid, just print the corresponding drawer style and enjoy your new custom setup! Perfect for makers, electronics hobbyists, and organization lovers, this system is optimized for sorting screws, small components, office supplies, or miniatures. 🌟 Key Features - One Case to Rule Them All: A single outer case file does it all. No more tracking down multiple corner or edge files—just print, rotate, and assemble. - Dual-Style Drawers: - Flat-Base Layout (Blue Drawers): Traditional orientation, utilizing the specific flat-bottom drawer. - Pointy-Base Layout (Orange Drawers): Diamond orientation, utilizing the specific pointed-bottom drawer. - Heavy-Duty Sliding Pin Inlays: The system utilizes custom dual-dovetail joining strips that slide smoothly into the outer slots, locking the cells together tightly without glue or screws. - Anti-Fall Safety: An internal retention shelf acts as a rear stopper, preventing the drawers from slipping out or spilling from the back of the case. - Geometric Hexagonal Knobs: A sleek, matching hexagonal handle is integrated right onto the front panel for a clean aesthetic and excellent grip. 📐 Technical Specifications & Precision Tolerances - Overall Drawer Dimensions: ~50 mm (Width) x ~100 mm (Depth) — Ideal for small parts and hardware. - Joint/Clip Profile Tolerance: 0.25 mm offset on the perimeter (ensures a satisfying, snug slide-lock fit). - Drawer Profile Tolerance: 0.30 mm offset on the perimeter (guarantees buttery-smooth sliding action, factoring in standard FDM expansion). - Rear Stopper Clearance: 0.20 mm depth tolerance relative to the internal retention block for a flush front finish. 🖨 Recommended Print Settings - Material: PLA for the cases and drawers (optimal dimensional stability). PETG is an excellent alternative for the joining clips if you want a flexible, snap-like feel. - Layer Height: 0.20 mm recommended for optimal tracking tolerances. - Infill: 10% - 15% (Gyroid or Grid). - Supports: 95% Support-Free! The universal case, internal bridges, and sliding joint slots print completely support-free. You only need to enable supports for the drawer file to handle the small underside overhang of the front hexagonal knob.
