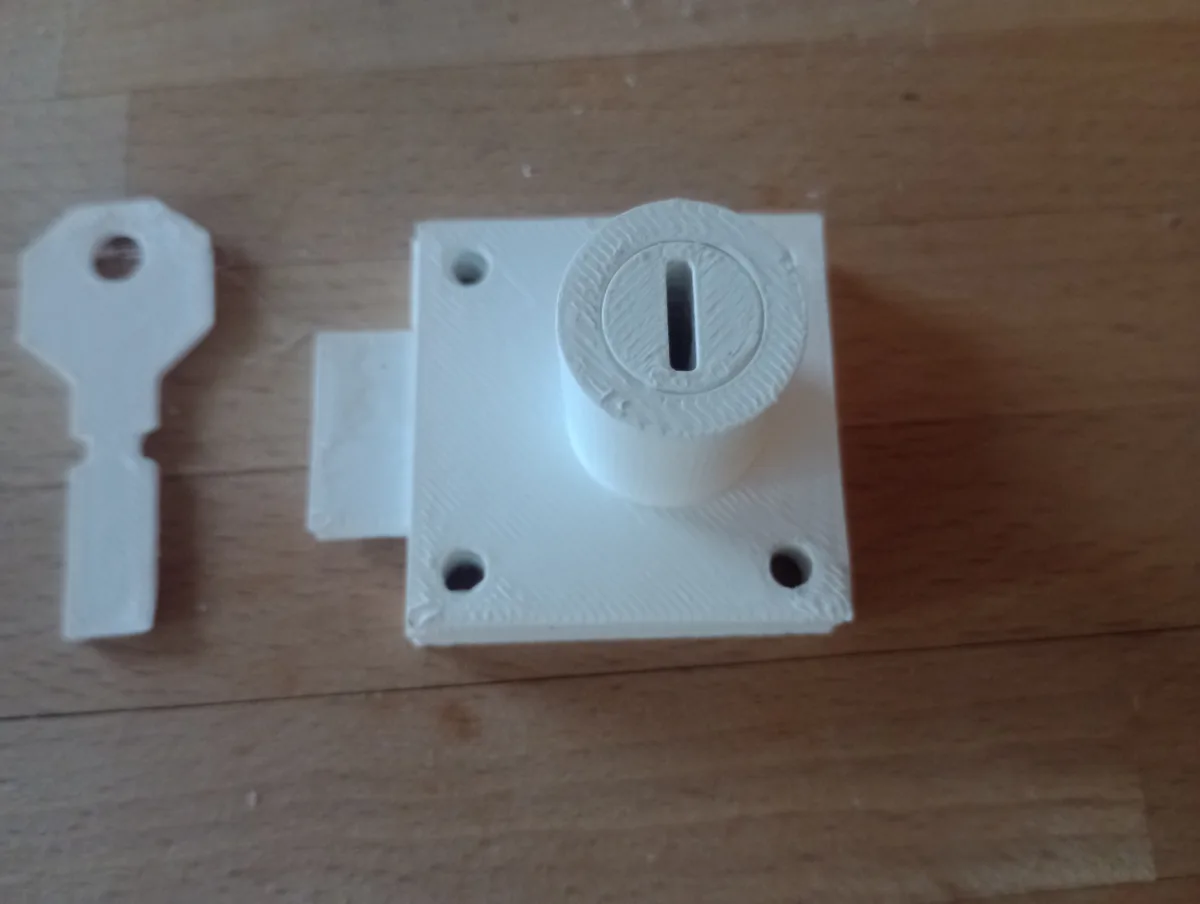

Furniture lock 40x40 mm

Designer

Michal

Designer relation

Ingen

Kategori

Household > Office

Licens

Creative Commons Attribution Creative Commons — Attribution

$ ↺

Attribution påkrævet.

Designer commercial

None

Først set

2026-07-24 11:53

Sidst set

2026-07-24 20:41

Tags

office furniture mechanical mechanism lock

Beskrivelse

For the doors where latch is on the left side. Mirror all parts for fight side mounting. For current set of lock discs 64 possible keys exists. Adding Disc with 0 degrees rotation option extends it to 729 but it will introduce weaker spot in a key and it could break there. Print as oriented in PLA 0.2 mm layer. Supports where touching build plate needed only for LockActuator.stl part. Be careful about z offset to avoid excessive elephant foot on discs. Use silicon grease on discs and spacers during assembling to make them sticky. Yo need to print LockDisc90 5 times, LockSpacer 5 times and LockDisc45 i times for the provided key. Assembling for provided key example: - Insert greased LockDisc90 into LockActuator. - Insert greased LockSpacer into LockActuator (narrower grove in LockActuator is intended for spacer tongue). - Repeat steps 1 and 2 three times. - Insert greased LockDisc45 into LockActuator. - Now test the assembled core with the key when key rotated 90 degrees the groove on discs should line up with groove on LockActuator. - Insert LockFrontCover into LockFrontPlate - Cut 18mm of 1.75mm filament. straighten it and place it into groove in LockFrontPlate - Insert Assembled LockActuator into LockFrontPlate so the filament from step 6 will line up with wider groove on LockActuator - Insert LockLatch into LockBackPlate so the grove is facing up - Place assembled LockFrontPlate on LockBackPlate so the dimple on LockActuator goes into grove on LockLatch (LockLatch is in fully retracted position - Test the lock with the key
