Heavy Duty Wall Hook

Designer

3DtoD

Designer relation

Ingen

Kategori

Art & Design > Wall-mounted

Licens

Creative Commons Attribution NoDerivatives Creative Commons — Attribution — Noncommercial — NoDerivatives

$ ↺

Attribution påkrævet; modificerede/afledte versioner må ikke deles.

Designer commercial

None

Først set

2026-09-17 00:10

Sidst set

2026-09-18 12:10

Tags

organizer hanger diy wallmount storage workshop toolholder 3dprinted wallhook functionalprint heavyduty utilityhook homeorganization garagestorage

Beskrivelse

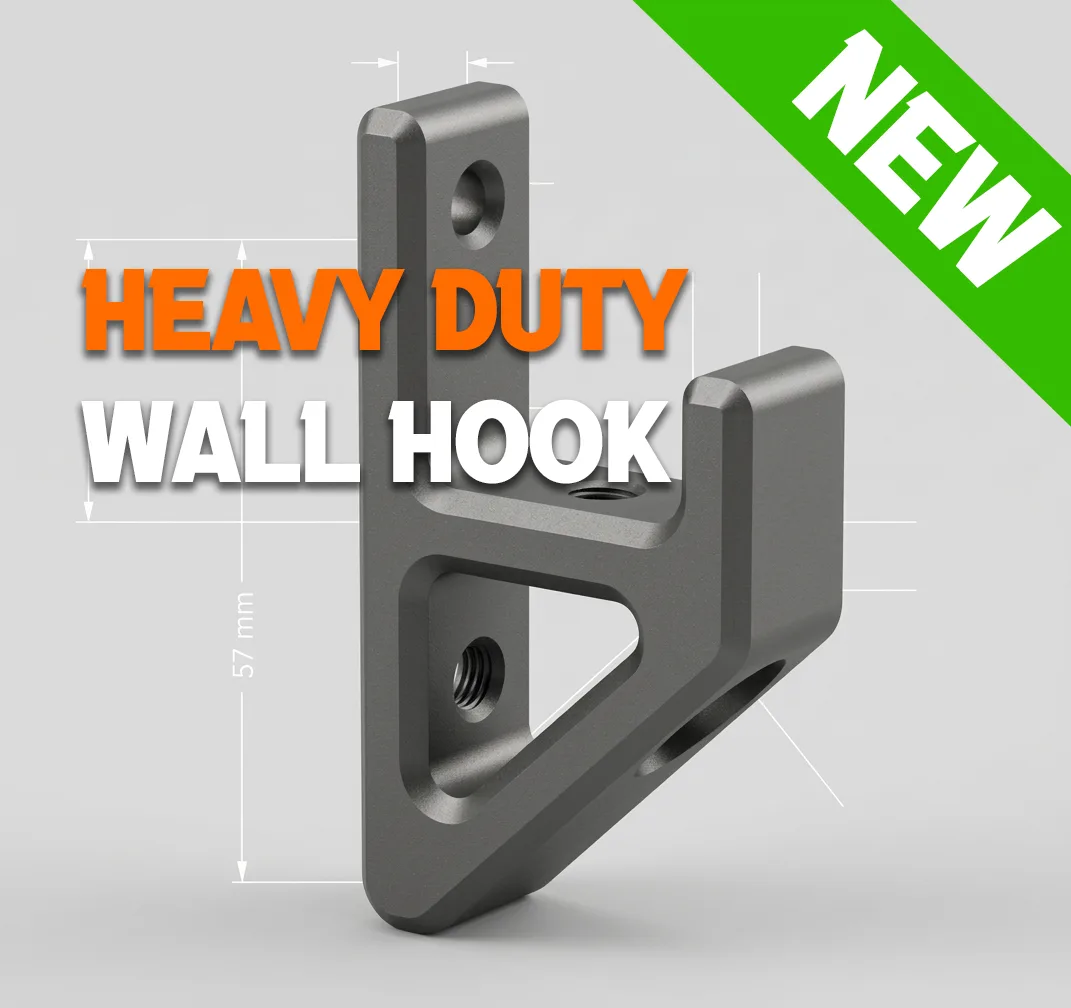

🛠 Bracket / Hook Profile (2D CAD Drawing & Dimensions) This model features a custom functional bracket/hook profile designed for strength, stability, and easy 3D printing. It incorporates a reinforced diagonal brace and precise mounting/channel dimensions. 📐 Technical Specifications & Dimensions - Total Height: 57 mm - Base Wall Thickness: 6 mm (back wall) - Bottom Base Offset: 6 mm - Top Lip Width: 6 mm offset (20 mm channel distance to outer lip) - Channel Depth / Drop: 10 mm top inner step - Hook Feature Height: 6 mm front vertical stop - Internal Opening Width: 25 mm inner section / 35 mm total channel reach - Diagonal Brace Wall Thickness: 6 mm uniform angled support 🖨 Recommended Print Settings - Orientation: Print on its side to maximize layer line strength along the horizontal load path and angled support. - Infill: 20%–30% (Gyroid or Grid recommended for functional support). - Wall Loops / Perimeter: 3 to 4 walls for maximum structural rigidity. - Supports: Not required if printed flat on its side.
