Compact Magsafe Stand

Designer

Tomáš Holčík

Designer relation

Ingen

Kategori

Gadgets > Portable Devices

Licens

Creative Commons Attribution Creative Commons — Attribution

$ ↺

Attribution påkrævet.

Designer commercial

None

Først set

2026-09-14 19:50

Sidst set

2026-09-18 08:10

Tags

phonestand phone travel magsafe magsafestand

Beskrivelse

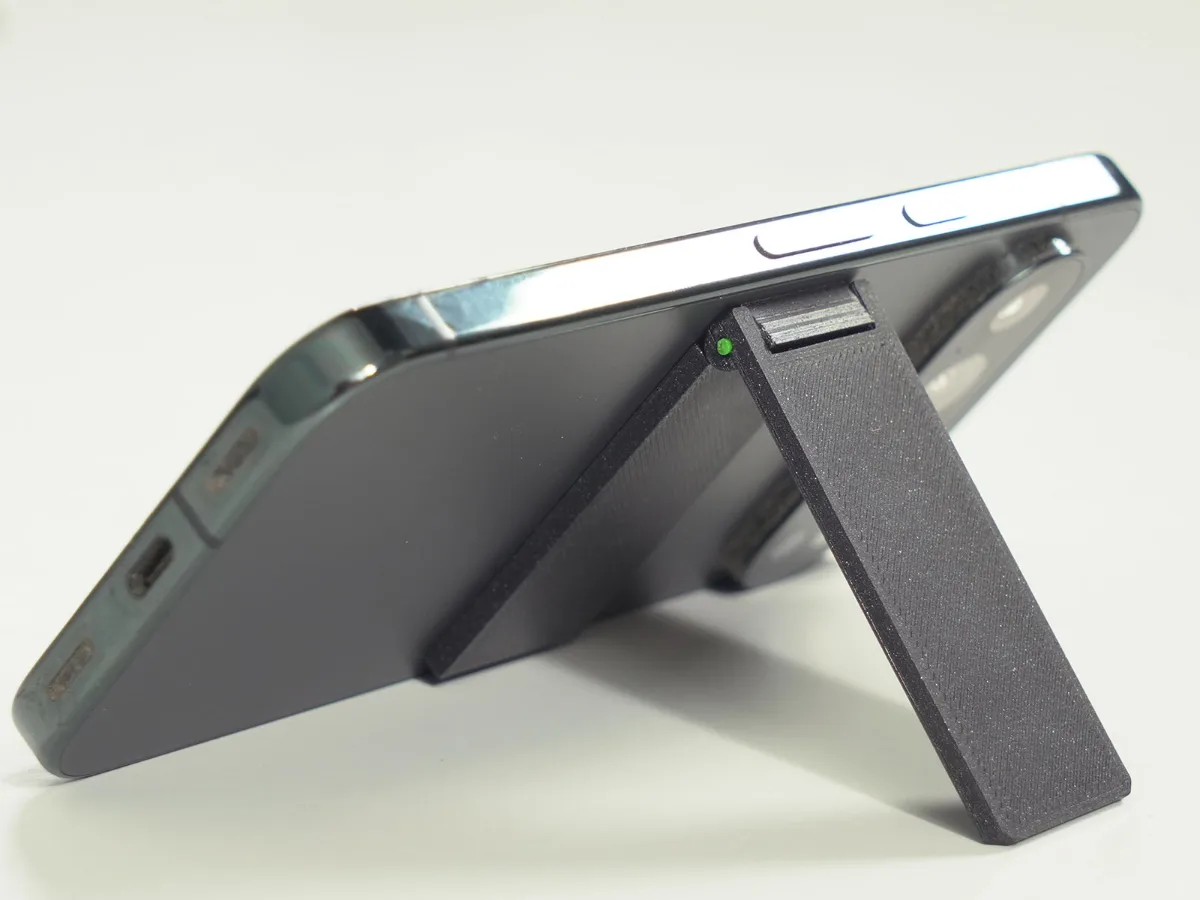

This is a compact travel stand which clips on magsafe magnets of your phone or case. In its folded state it is pocketable and does not take a lot of space. Unfolded it can keep the phone raised in a landscape or portrait orientation. Ideal for traveling, watching movies or just better visibility on the table. Warning : you need magsafe magnets on the phone or its case. Not just a metal ring on cheap cases, real magnets. This stand uses thin weak magnets and just a metal ring on a case will not be enough to keep it attached. To print this model you will need 3 magnets. I chose 20×10×2mm size as it is quite common and available from Bambulab, Temu, etc. or even Hornbach. Two to stick to the phone and one to keep the stand closed. It is designed to print at 0.10 layer height so the magnets have a good cover and not just one layer. - Put your magnets on the Magsafe area of your phone and mark their face for the correct polarity. There should be ~3 cm space between them. - Add the two parts in the slicer and flip the top part upside down. - Slice the two parts using 0.10mm Fine - Set Pause at layer 23 (the first one covering the slots for magnets) - Start the print and after a Pause in the print insert the magnets. Two with your mark up in the base, one in the top part upside down. - Connect printed parts together and push a piece of normal 1,75 mm filament into the hinge from both sides. There are 1 cm deep holes, but just jam a piece inside to keep two parts together. Cut excess filament. Enjoy.
