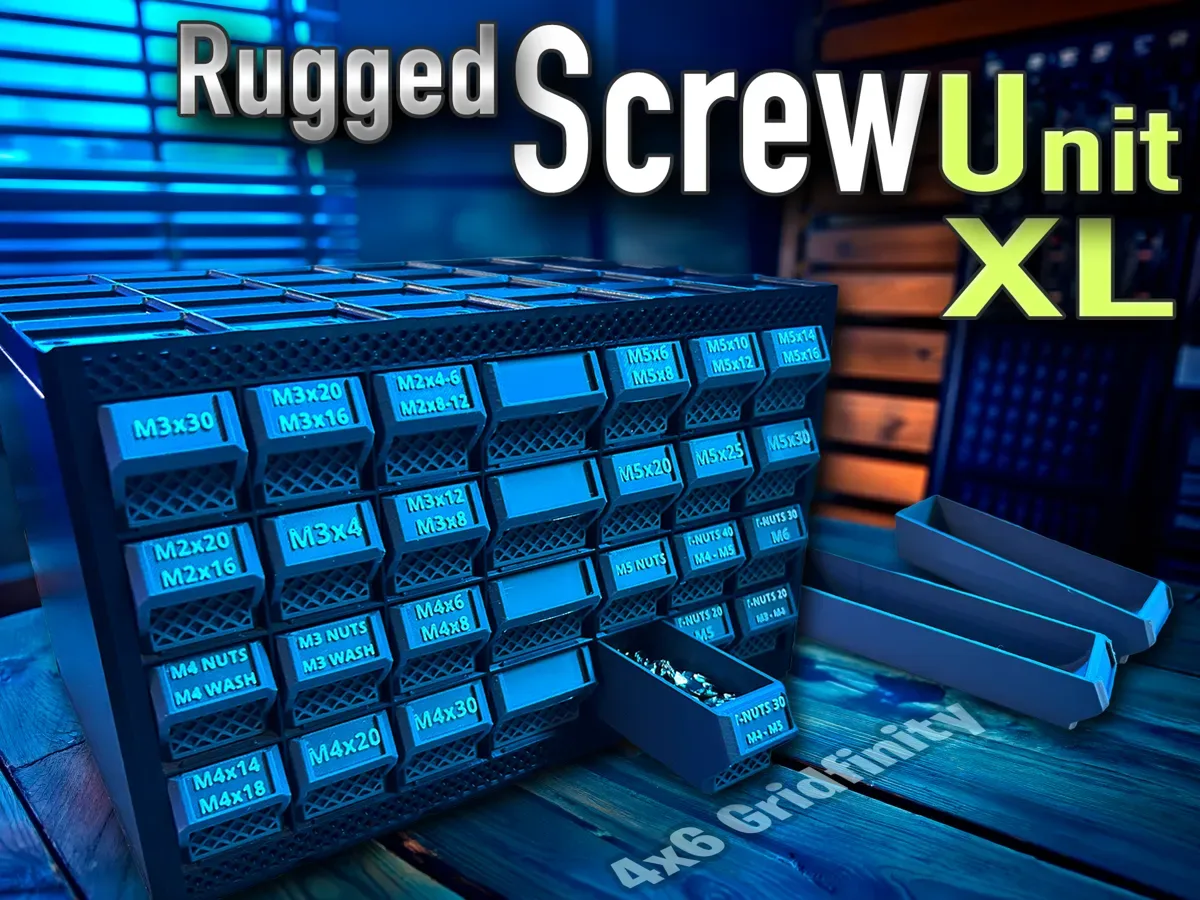

Rugged Screw Unit XL - Gridfinity Hardware Storage

Designer

K2_Kevin

Designer relation

Followed

Kategori

Tools

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

MakerWorld Commercial License

Først set

2026-07-24 11:54

Sidst set

2026-07-24 11:54

Tags

drawer screws storage organizer parts parts storage large drawers rugged bolts bins hardware Screw Unit screwu labels box rugged organizer gridfinity stack finity screw storage box office desk organiser wall organizer screw

Beskrivelse

Thank you so much for your Downloads, Like, Boosts! Become a Member at any tier & direct message me with your requests! Don't forget to Follow! Check out the Full Rugged Organizer System Collection “Click Here” Also fits my Rugged Organizers & Custom Storage Drawers New Rugged System Add-Ons added all the time! Rugged Screw Unit XL Collection - (Gridfinity Stackable) CUSTOM LABEL GENERATOR - Click Customize for Small & Wide (BETA) Need to visualize your layout? Try this amazing Rugged Drawer System Planner by shinaka What's Special about the Rugged Screw Unit? Added drawer stops!!! Don't accidentally spill your screws. Gridfinity for easy stack-ability Scoop drawers Large Screw holes for wall mounting. Compatible with all Rugged Organizer drawers 6x2 magnets with glue. Glue in hole(s) PRINT SETTINGS: Layer Height: 0.2mm DRAWERS: Supports Recommended (Normal Supports on front lip ONLY) I setup the Frame to print vertically (backside down) without supports. There was a little stringing under some of the gridfinity, but that did not warrant me using supports. 10 seconds of post processing (just clip the saging strings) saves a lot of print time. If you want or need to use supports, I'd recommend paint on manual supports only under each grid finity block on the bottom. Build Plate: Large prints like this are prone to warping. I recommend using GLUE / Nano Polymer on your build plate, and lower the AUX fan speed to 20-50% prevent warping! Rugged Organizers / Drawers with your Screw Unit! Q&A - What does Gridfinity 4x6, 2x5, 3x4, 2x5, etc. mean? Gridfinity is a modular, open-source organization system that uses a grid to attach/organize multiple boxes or holders to items. Gridfinity Baseplates are optional, not required for these models. Profile for Gridfinity Baseplates added, you can overlap your drawer across multiple baseplates to secure multiple drawer frames together horizontally. 2x5 is the grid size on the top/bottom of drawer frame and other gridfinity models dimensions. Optional Magnet baseplates offer the option of a very secure platform (Only a few magnets should be more than enough) The drawer frame sizes are based on the Gridfinity Grid, but you can mix sizes. Other models waiting to be discovered… Boost Me (for free) Thank you so much for Rating, Following and the BOOSTS! Boost Membership Want to request a model or design change? You’ll need to be a member (any tier works!). Join up and send me a DM — so grateful for your support ❤️ Join
