Parallel Marker Gauge (Edge Marker)

Designer

Molodos

Designer relation

Followed

Kategori

Tools

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

Patreon

Først set

2026-07-15 10:58

Sidst set

2026-07-15 10:58

Tags

parallel marker gauge ruler woodworking wood measure measurement tool

Beskrivelse

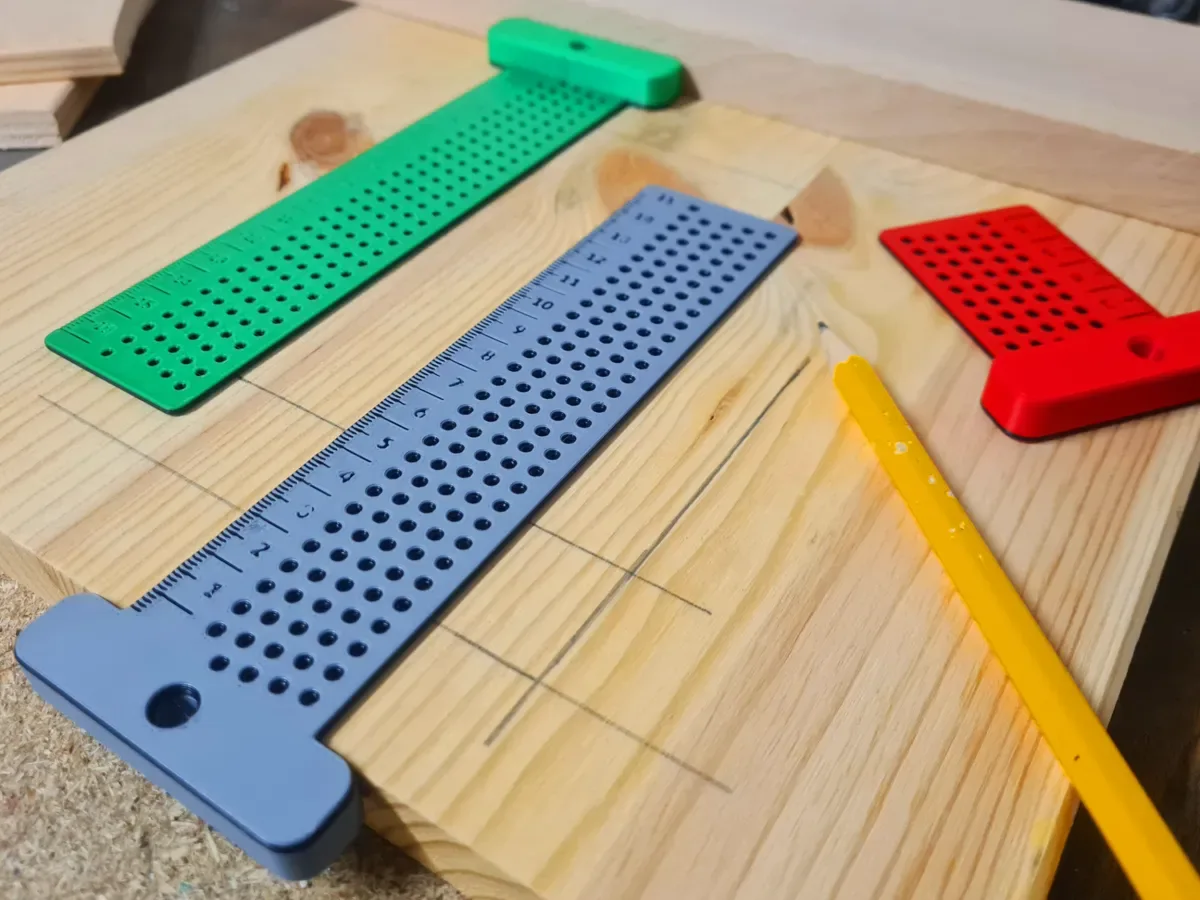

Boost Me (for free) You like the model? Consider using your boost tokens to support me for free! (or check out my Patreon for commercial seller licensing) Boost Recently, I needed to do parallel markings to an edge, but I did not find quite the perfect tool for me. This is why I created my own version from scratch in OpenSCAD. (If you are interested in a parametric V2, let me know in the comments!) (The design is inspired by this model, but everything was re-designed from scratch) Features Mark parallel to edges Available in metric and imperial units Available in different lengths: 25cm, 15cm, 5cm, 10in, 6in, 2in Holes for every millimeter (1/16 inch) Printable without AMS by pausing and switching filament at the right height (before layer 3 and before layer 9) Recommended print settings (or just use the provided print profiles) Layer Height: 0.2mm (also for first layer) Only one wall loop on first layer Infill direction: 45° (or 0° if the gauge is placed diagonally on the build plate) Build plate: Smooth plate (for other plates, the numbers will not be that clean) Using adhesives is strongly advised You want to sell physical copies of my models? Check out my attractive commercial seller licensing via a membership over on Patreon!
