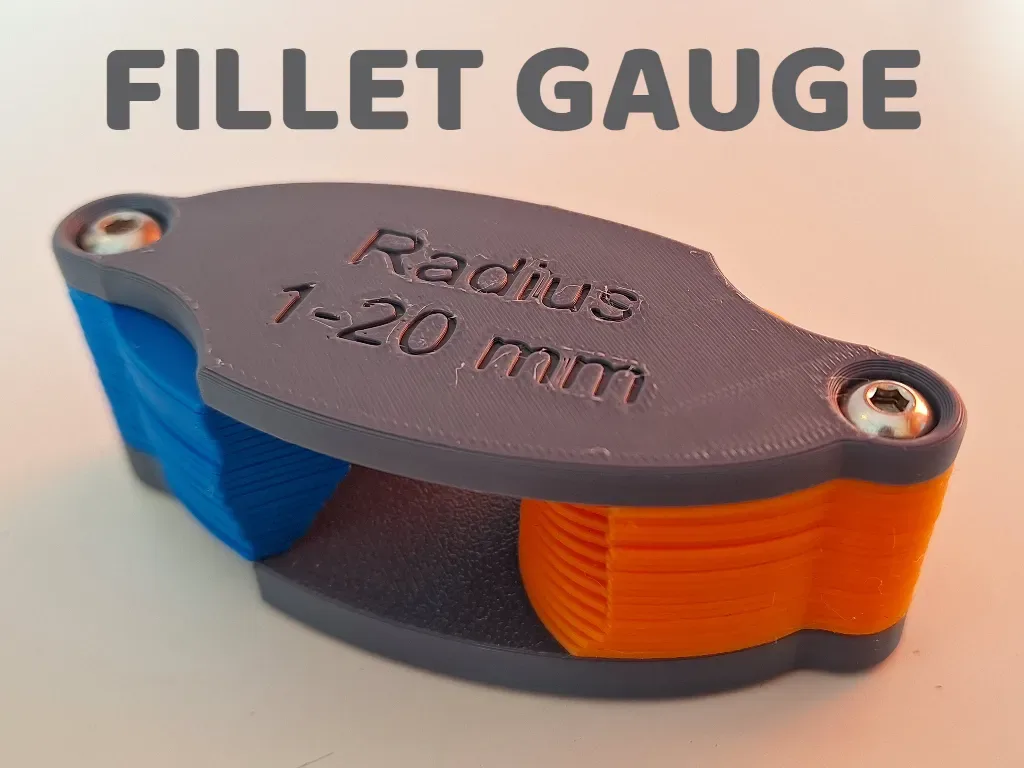

Radius/Fillet Gauge 1-20mm

Designer

CE_YT

Designer relation

Followed

Kategori

Tools

Licens

Creative Commons Attribution NonCommercial ShareAlike Creative Commons Attribution-Noncommercial-Share Alike

$ ↺ SA

Attribution påkrævet; kommerciel brug er ikke tilladt; ShareAlike gælder for afledte værker.

Designer commercial

MakerWorld Commercial License

Først set

2026-07-15 10:58

Sidst set

2026-07-15 10:58

Tags

gauge measure radius fillet filletgauge radius gauge template mm 1-20mm inner outer diameter measure tool holder organizer

Beskrivelse

I remixed this radius gauge from @mibla: https://makerworld.com/en/models/33208#profileId-30030 Bolts that fit in the holder The top cover is different from the original design, now every M5x30mm bolt will fit in the holder (DIN912, DIN7991, DIN7380-1,BN1435,..) The hole has an inner diameter of Ø9,5 mm I also made a youtube short about this project Updates of this model (dd/mm/yyyy): 27/10/2024: I added an underscore at the 6 and 9 so it's easier to read. I updated the 3mf file. If you don't have the right bolts, no problem! @Lestro made a pin for this: He didn't mark his model as a remix so it's harder to find but here's the link of his model: https://makerworld.com/en/models/623363#profileId-547579
