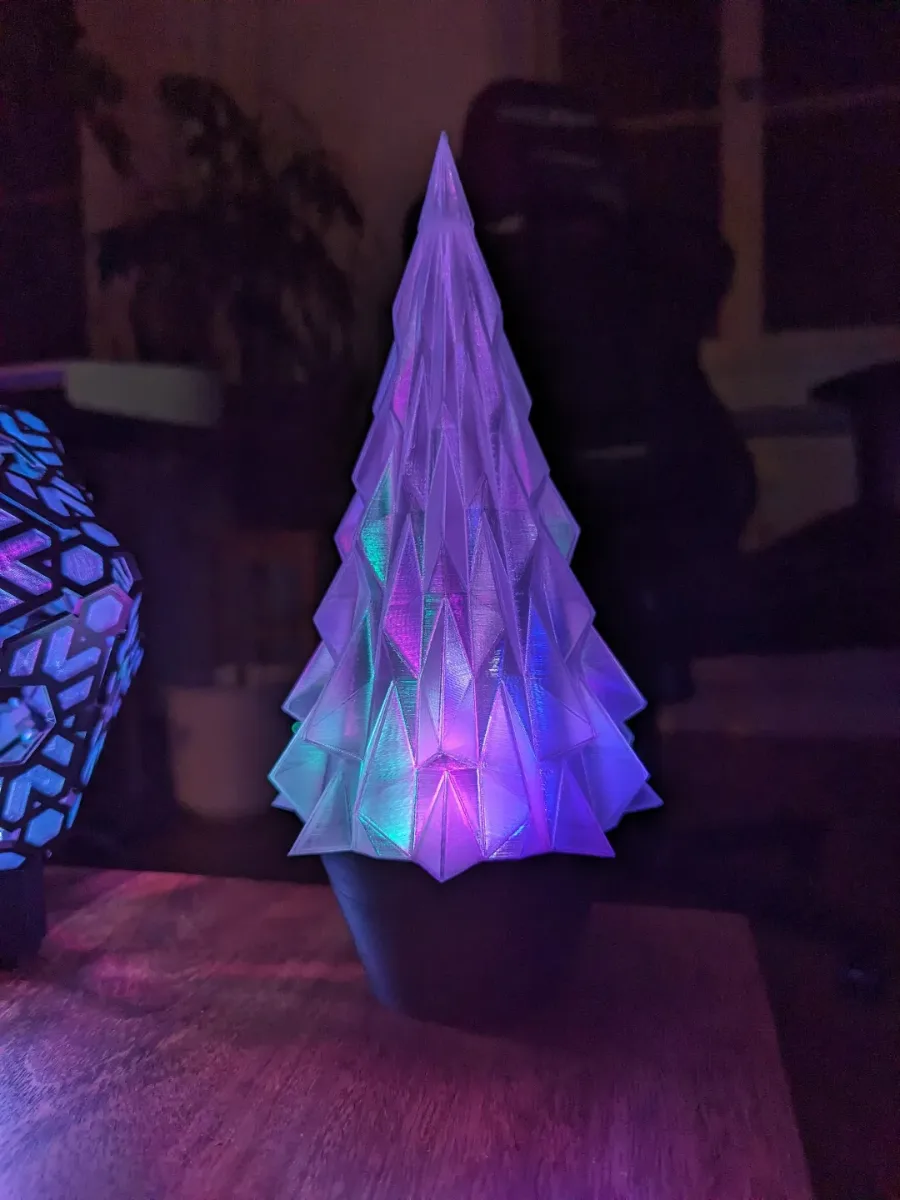

Christmas Tree Light - WLED Version

Designer

ModularMapping

Designer relation

Followed

Kategori

Household

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

Patreon

Først set

2026-07-15 10:58

Sidst set

2026-07-15 10:58

Tags

led ledlamp wled wledlamp nodemcu esp8266 christmas christmastree ornaments christmaslights light

Beskrivelse

How to build the LED Christmas Tree: What you need: 5 pixels of WS2811 (5V) LED chain A NODE MCU or some other ESP8266 controller 3 M3x10mm screws to srew the bas to the tree 4 M2.5x10mm screws to screw the NodeMCU to the base How to flash your ESP: go to https://kno.wled.ge/basics/getting-started/ or https://install.wled.me/ follow the instructions to flash the ESP if you have problems and need help, contact me :) How to build: glue the 5 LED pixel in place connect the 3 pins from the LEDs to the Node MCU, ground to GND, signal to D4 (by default) 5V to VU screw the NodeMCU onto the base try if everything works screw the lid onto the ground of the module Have fun with this project! If you need help at any point feel free to contact me!
