Icosaeder Christmas Light

Designer

ModularMapping

Designer relation

Followed

Kategori

Household

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

Patreon

Først set

2026-07-15 10:58

Sidst set

2026-07-15 10:58

Tags

icosahedron wled wledlamp led ws2811 lamp light geometric sculpture

Beskrivelse

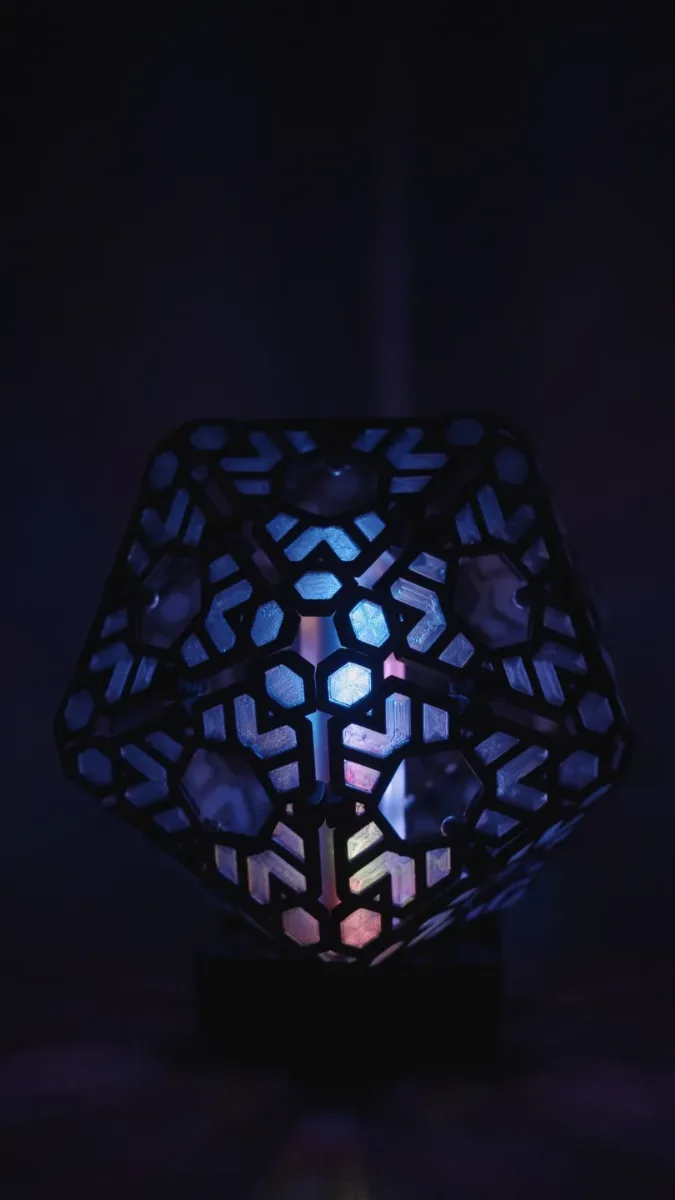

This is an WLED controlled LED lamp. Its made of 19 identical pieces and a base which holds the controller. What you need: 40cm of WS2812B (5V) LED 1 x Node MCU V2a soldering iron, some solder and some cables 30x M3 x 20mm screws 30x M3 nuts 3x M4 x 50mm screws Optional: a power socket 12V DC 5.5x2.1mm: https://www.amazon.de/dp/B09Z6W93X3?ref=ppx_yo2ov_dt_b_product_details&th=1 How to build: Print the Triangle Part and the middle window 19 times and all other parts a single time Connect them with the M3 screws and nuts Solder and glue the LED stripe on the lightbulb part Solder the LEDs to the NodeMCU below Put the diffusor over the LEDs Put the connector to the triangles on top and the controller box below Now put this together with the M4 screws If you want you can put the feet over the screws to hide them Test if everything works as it should and screw the rest of the lamp to the controller box Clip the middle windows into place This sounds a lot but if you hold the parts in your hand its easier than ikea! This sounds a lot but if you hold the parts in your hand its easier than ikea! How to flash your ESP: go to https://kno.wled.ge/basics/getting-started/ or https://install.wled.me/ follow the instructions to flash the ESP if you have problems and need help, contact me :) The filaments i used: Filamentums Crystal Clear PLA in Icelandic Blue Anycubic Black PLA Have fun with this project, if you have any questions or problems feel free to contact me :) Boost Me (for free) If you like this model consider giving me a boost, this really helps putting this much work into the designs ;) Boost Also have a look at my other lights, some are 100% 3D printable! Geometric Leaf Lamp Leaf Lamp Shade Grid Light
