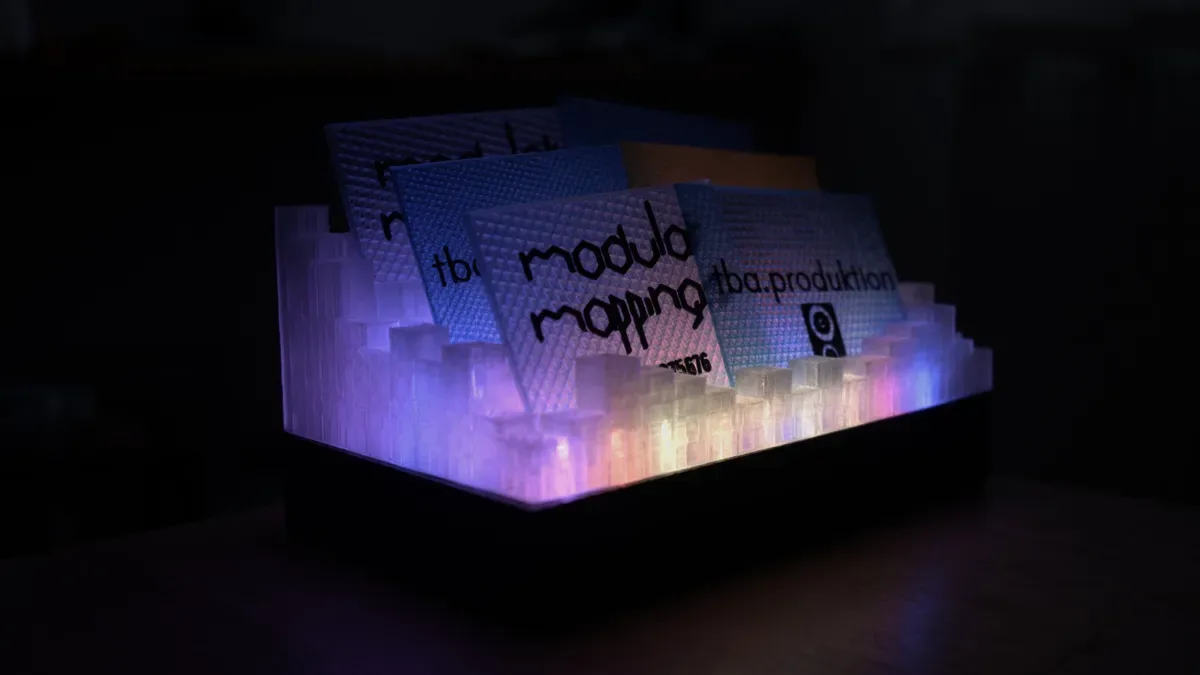

This is an app controlled LED Business Card Holder. What you need: (You can for sure also print the without LED Ilumination, then you would just need to print the top part :)) 60 cm of WS2812B (5V) LED 1 x Node MCU V2 a soldering iron, some solder and some cabled 8 x M3 x 5mm screw Optional: Adressable LED PCB (a PCB for the Node MCU, power socket and LED Pins, found in the files here) a power socket 12V DC 5.5x2.1mm: https://www.amazon.de/dp/B09Z6W93X3?ref=ppx_yo2ov_dt_b_product_details&th=1 How to build: print the 3 parts in PLA, the holder itself should be printed in some kind of translucid material for the best effect cut and solder four 16cm pieces of the WS2811 together with about 6 cm of cables in between the pieces glue them into the topplate the cables go through the holes to the back of the plate screw the front onto the LED plate connect the LEDs to the Node MCU (or the PCB) screw the PCB onto the controller box clip the front onto the controller box, you cant slide it iny as the cables would be in the way but in both prints i did so far it was easy to clip in with some pressure How to program your Node MCU with WLED: Follow the instructions at: https://kno.wled.ge/basics/getting-started/ The filaments i used: Geetech PLA transparent Anycubic Black PLA Have fun with this project, if you have any questions feel free to contact me :) Boost Me (for free) If you like this model consider giving me a boost, this really helps putting this much work into the designs ;) Boost Also have a look at my other lights, some are 100% 3D printable! Geometric Leaf Lamp Leaf Lamp Shade Grid Light Icosaeder Christmas Light
