NFC Jukebox with ESP32, DFPlayer Mini and RC522

Designer

kevToeg

Designer relation

Followed

Kategori

Hobby & DIY

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

MakerWorld Commercial License

Først set

2026-07-15 10:58

Sidst set

2026-07-15 10:58

Tags

esp32 esp32c3 dfplayer mp3 audio music jukebox rc522 nfc rfid sdcard json reader webserver webinterface volume play pause track folder diy project maker electronics embedded microcontroller python arduino hardware iot wireless wifi serial uart gpio speaker button control interface rfidreader easter box fidget gadget keychain gift technical pokemon dragon Egg

Beskrivelse

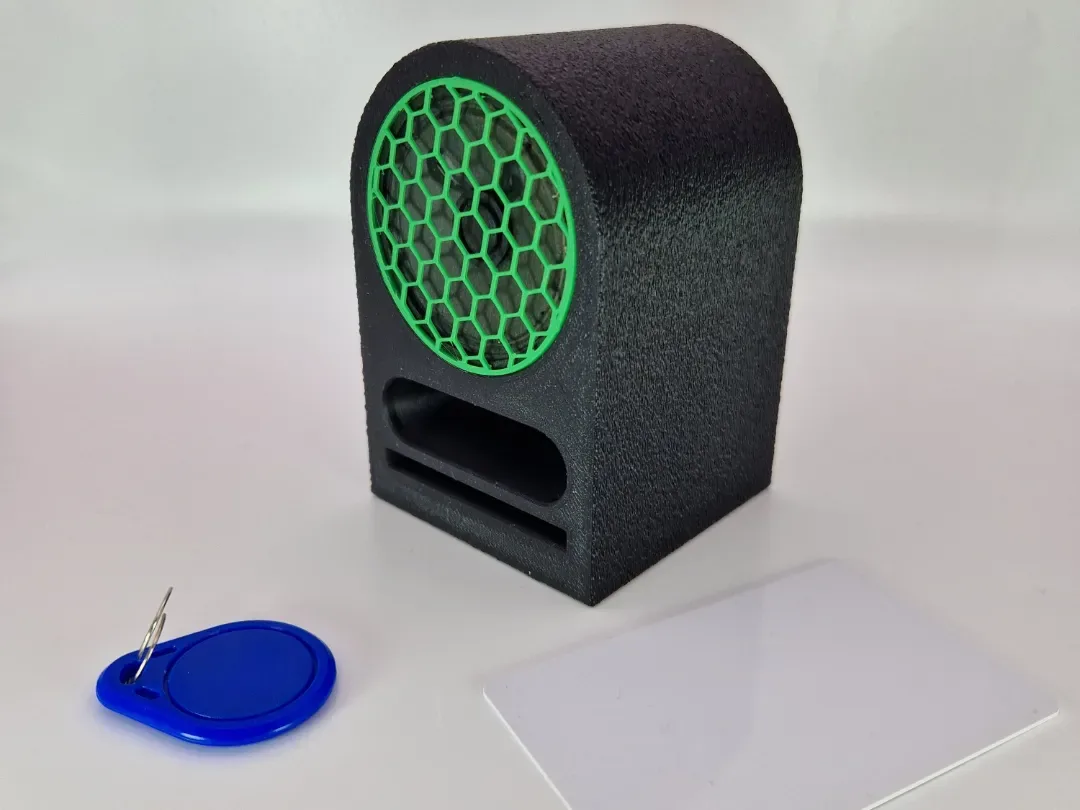

Please follow me IG: https://www.instagram.com/tc_toegel_creations/ Boost Me (for free) 💚 Love my creations? 💚 Show your support by giving me a like 👍, following me 🔔, downloading & printing my designs ⬇️, leaving a review ⭐, or boosting my work! 🚀 Every bit of support fuels my next creation. Thanks for being awesome! Boost Wire diagram will follow soon ! This project is a compact NFC-powered jukebox based on the ESP32-C3 Mini. It uses an RC522 NFC reader to scan RFID tags, which are mapped via a JSON file to trigger specific songs or entire folders on the SD card. The audio is played through a DFPlayer Mini connected to a small speaker – no AUX output needed. Tracks are organized into folders (01 to 99) on the SD card, and named following the DFPlayer Mini format (001_xxx.mp3 to 255_xxx.mp3). NFC tags can be linked to a specific [folder, track] pair, or just to a folder to play full albums or playlists. As an optional feature, a lightweight web interface allows for playback control over Wi-Fi, including Play/Pause, Next/Previous Track, and Volume adjustment. This build is ideal for makers looking to create a standalone, physical music experience with simple NFC interaction and no need for a screen or smartphone. Micropython Source Code in .zip :-) Features: NFC control via RC522 DFPlayer Mini handles audio playback from SD card Tags are mapped in a JSON file stored on the ESP32 Folder and track selection per tag Optional web interface for remote control Standalone playback through connected speaker (no AUX) Use cases: Kid-friendly jukebox Custom playlists with physical cards Embedded music stations for DIY installations Hardware: ESP32-C3 Mini DFPlayer Mini (TX=21, RX=20) RC522 RFID Module (SCK=2, MOSI=1, MISO=0, CS=3, RST=4) SD card (with folders 01–99, tracks named 001_xxx.mp3 to 255_xxx.mp3) NFC tags (UIDs mapped to folders/tracks in JSON) Mini speaker or AUX output 2x Y-Cable (see below for the 3.3V and GND) 🧰 MicroPython & File Upload with Thonny (short) Install Thonny: https://thonny.org Connect your ESP32-C3 via USB In Thonny: Tools → Install MicroPython (ESP32) Board: ESP32-C3 Select correct port Flash firmware (if needed: hold BOOT + tap RESET to enter flash mode) Bottom-right: select MicroPython (ESP32) Open your scripts → File → Save as... → MicroPython device e.g. main.py, nfc_map.json, libraries Tip: main.py runs automatically on boot. 📁 File Upload and Setup Use Thonny to upload the following files to the ESP32-C3: dfmini.py – DFPlayer Mini driver mfrc522.py – RC522 NFC driver app.py – main application logic main.py – startup script Upload each via: File → Save as... → MicroPython device The file nfc_map.json will be auto-generated on first boot if it doesn't exist. It can be edited and saved directly on the controller later (e.g. using Thonny or WebREPL). 🎵 Music File Setup (SD Card) Create folders 01 to 99 on the SD card Name files like 001_song.mp3 to 255_track.mp3 Place music or albums inside the corresponding folders Map NFC tags to [folder] or [folder, track] via nfc_map.json Example: { "0487CD44A8": [2], "04A3BC1F22": [3, 5] } Y-Cable That’s it – once set up, tapping a tag will play music instantly! Membership ☕Would you buy me a coffee? ☕ 💸Or interested in a commercial licenz?💸 Join
