Build plate holder under AMS (5 plates)

Designer

FlorinV

Designer relation

Followed

Kategori

3D Printer

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

Patreon

Først set

2026-07-15 10:58

Sidst set

2026-07-15 10:58

Tags

build plate buildplate buildplateholder holder support bambu x1 p1 ams spacesaver slide storage stackable p1s glass top stackable storage

Beskrivelse

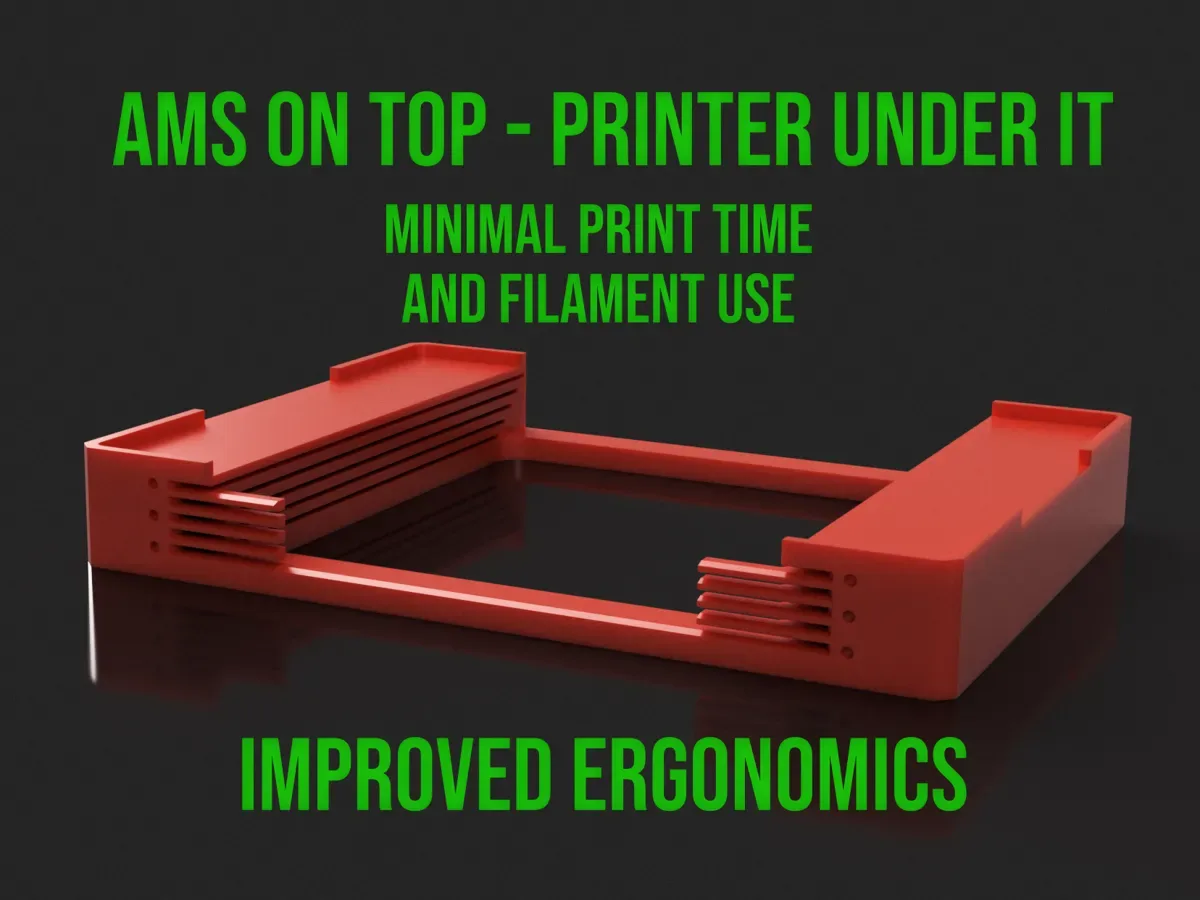

Check out my new 4th of July Glasses Works with AMS 2 Pro also. Update 31.01.2024: Improved ergonomics: increased the front width of the slots for easier plate insertion. Added signs (circles) for 1,3,5 slots to see faster which slot corresponds in both sides. I was having all my plates all over the place and what i could find already done, were prints of over 40 hours. So … I did this design which fits my requirements: storage for maximum of 5 plates. ladder layout for easier access to the plates. minimal time to print, no space waste around the printer etc. easy to put together (glue the parts together if you want; 4 parts only). All parts are connected, so it's very stable with minimal material and time use. one plate print. use some anti slip pads under this support, as PLA is sliding easy over the printer glass top. Or print some TPU pads, as you wish. I used Anti Scratch Floor Protectors and works perfect. 9h:15min , 430 gr of filament. (X1 printer) AMS surface size (lengths between AMS legs on the bottom): width 343 mm depth 257 mm Boost Me (for free) Any review / comment or boost is greatly appreciated! Thank you ! 🌍✌️ Boost You can check all my models → here. Or check my collection of my best models: https://makerworld.com/en/collections/1921582-my-best-models
