Customizable & Stackable Paint Rack

Designer

FlorinV

Designer relation

Followed

Kategori

Tools

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

Patreon

Først set

2026-07-15 10:58

Sidst set

2026-07-15 10:58

Tags

paint Vallejo holder support rack army brush citadel color paint bottle bottle modular paintholder painting column rows parameteric custom customizable miniature stand paint accessory painting accessories warpaints

Beskrivelse

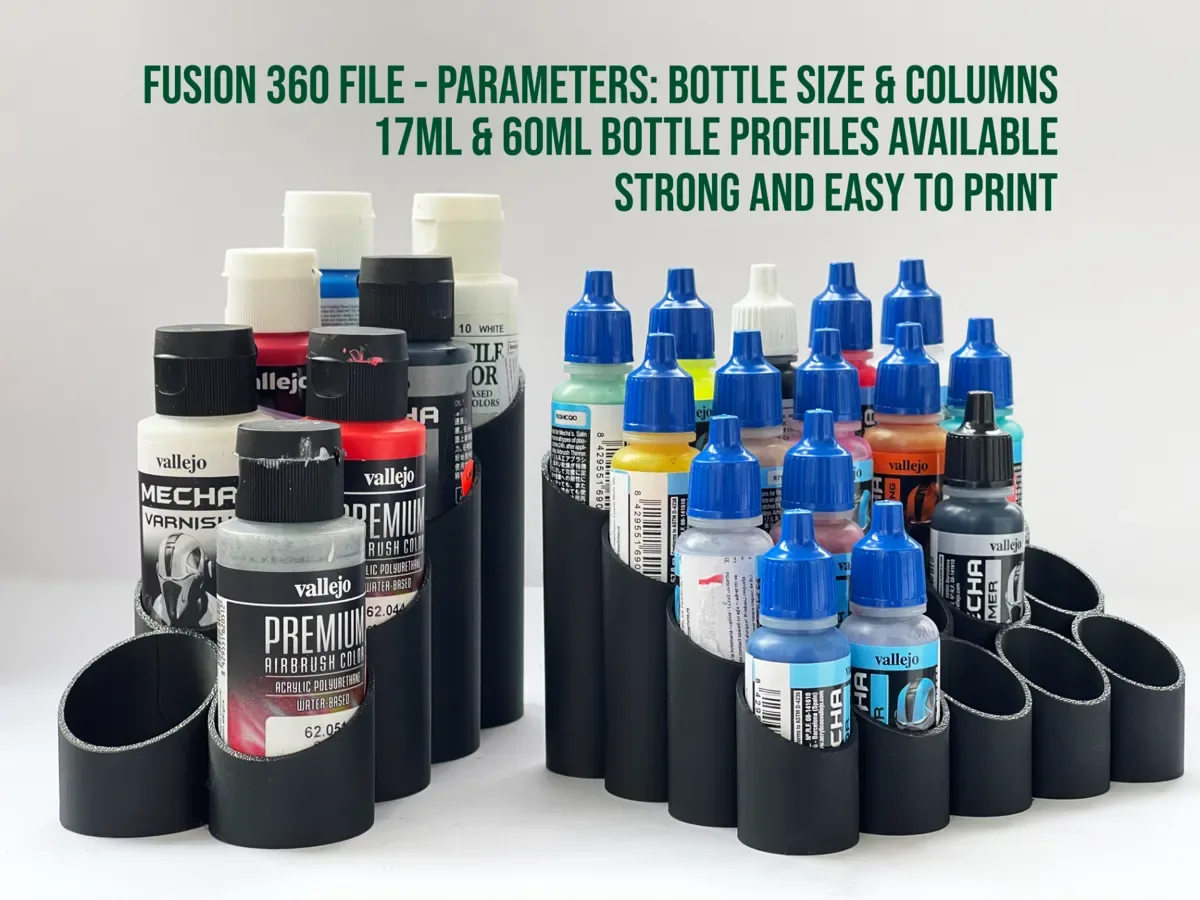

Check out my new 4th of July Glasses I know there are other racks and holders for paints, but I wanted something a bit different, more flexible and still simple to print, without using more filament than needed. Minimal footprint and filament use, but still very strong. For 28 bottles version with 26mm bottle size: estimated print time 7.6h and 248gr filament. Good visibility of bottles and also good grip. (not easy to flip them over) Fusion 360 file included, designed to easy change the bottle size and number of columns. (just change 2 parameters; please check the print screens bellow for more info) Available profiles and tested for Vallejo bottles: 17ml and 60ml. The hole sizes are: 26mm and 36.8mm. Each profile contains several models with different number of columns. (e.g. 1, 3, 5, 7) Each column has 4 rows. Simple to print, without any supports. If you generate other sizes using the fusion file, please arrange the model on the plate similar to how I did it in my profiles. (upside down, as this is how I designed the model and the most efficient way to print them without issues) There is no special design to attach different models between them, but you can easily glue them together. So, you can add from time to time another set of columns, as you need them or even glue together different bottle size columns. CUSTOMIZING INFO: Please place the generated model on the printing plate in Bambu Studio in this way: You can customize this directly on Makerworld, or download the f3D file and change it as you wish. How to change the bottle size and number of columns, if you need something different than already available in my profiles: open the file in fusion 360 and go to: Modify → Change Parameters (as shown bellow) Change the size value and/or columns value: Boost Me (for free) Any review / comment or boost is greatly appreciated! Thank you ! 🌍✌️ Boost You can check all my models → here. Or check my collection of my best models: https://makerworld.com/en/collections/1921582-my-best-models
