FLORA MINI - Led Light Leaves

Designer

MKExpert

Designer relation

Followed

Kategori

Household

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

MakerWorld Commercial License

Først set

2026-07-15 10:58

Sidst set

2026-07-15 10:58

Tags

LED lamp light 3d leaves leaf deco decor design plant vase pot flower planter plants flowers

Beskrivelse

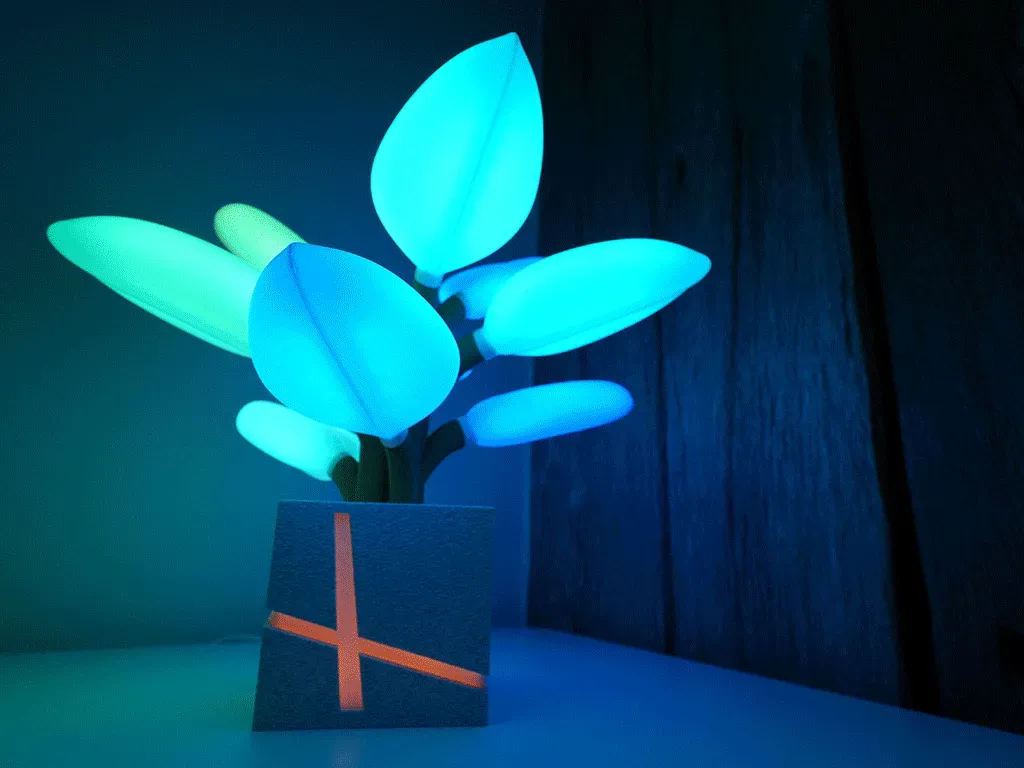

FLORA Mini: For plant lovers who can't keep them alive 😁 but in a mini version Precautions: Use dry filament Assembly: You can watch the two short videos below for guidance. Electrical connections and diagram: You can refer to the "FLORA" video; it's the same process, except for the following: Leaves: Cut 9 strips of ribbon, each with 8 LEDs. Attach them to each tab (4 LEDs on each side). Connect everything together using solder. Branches: Refer to the small dots on the branches and inside the support structure. To insert the leaf onto the branch, move the leaf up and down while following the flow and direction of the filament. Cube: Assemble the cube (top and bottom sections onto the diffuser). Add the USB-C female connector (once snapped in place, it seals the cube). Solder the USB-C connector to the LED ribbon power supply and to the ESP32. Good luck with the wiring! 😁😅💪 Printing Instructions: The cube is designed to work with the fuzzy skin effect. If you remove this effect, you might need to use some glue to attach the bottom part to the diffuser. Materials: 1,5 meters of 5V addressable LED strip (60 LEDs/meter, link in the video « FLORA ») 1x 5V 2A or 3A charger + cable with a USB-C output (link in the video « FLORA ») 1x female USB-C cable (link in the video « FLORA ») 1x ESP32, WROOM-32 microcontroller (link in the video « FLORA ») A few meters of 22 AWG wire (link in the video « FLORA ») A little patience Filaments (optional): Leaves + Cube Inside : PLA White Jade Tree Branches : PLA-CF Green Cube : PLA Marble Enjoy ! God bless you 🙏 Short 1: Short 2: FLORA:
