Patent Art Light Box

Designer

KenMills

Designer relation

Followed

Kategori

Art

Licens

Creative Commons Attribution NonCommercial ShareAlike Creative Commons Attribution-Noncommercial-Share Alike

$ ↺ SA

Attribution påkrævet; kommerciel brug er ikke tilladt; ShareAlike gælder for afledte værker.

Designer commercial

MakerWorld Commercial License

Først set

2026-07-15 10:58

Sidst set

2026-07-15 10:58

Tags

lightbox light box patentart patent

Beskrivelse

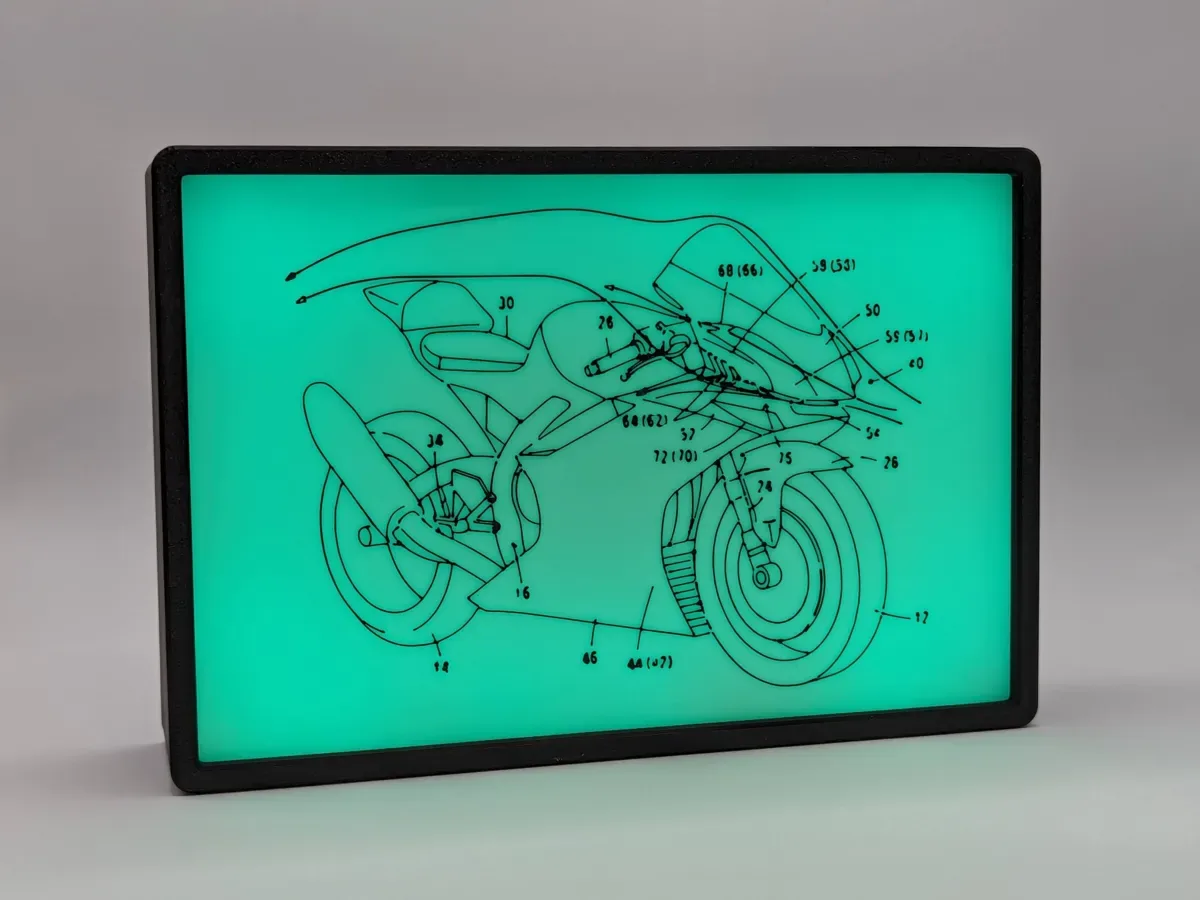

A much requested addition to my patent art collection. Replace the frame with an backlit light box ;) While the thumbnail shows a nice rendition of a motorcycle, I have over 130 other patent drawings to pair with this. The light box consists of the box (frame) itself, a back panel, and a light diffuser. The diffuser helps create a more even light while also securing the artwork in place. Assembly is straightforward: Set box part face down (arrows pointing downward). Insert patent art plate into the light box, linework first. Insert diffuser with the clips facing downward, pushing until it snaps into place. Attach LEDs and feed any cables through the hole in the back panel. Snap the back panel into place. Note that the LEDs can be attached along the inner edge of the light box, to the back panel or left floating inside. I chose to use a 10mm strip of RGB LEDs cut to length and stuck to the inside of the light box. This was easy, but prevents easy disassembly. Attaching them to the back is more difficult depending on your light choice, but allows changing the art easily. The hole in the back panel is 18mm in diameter to fit a USB plug. It is created using negative part that can be move, resized or removed as needed within Bambu Studio.
