Hole Size Calibration Blocks

Designer

JimLarsen

Designer relation

Followed

Kategori

Tools

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

MakerWorld Commercial License

Først set

2026-07-15 10:58

Sidst set

2026-07-15 10:58

Tags

calibration holes size hole size print test

Beskrivelse

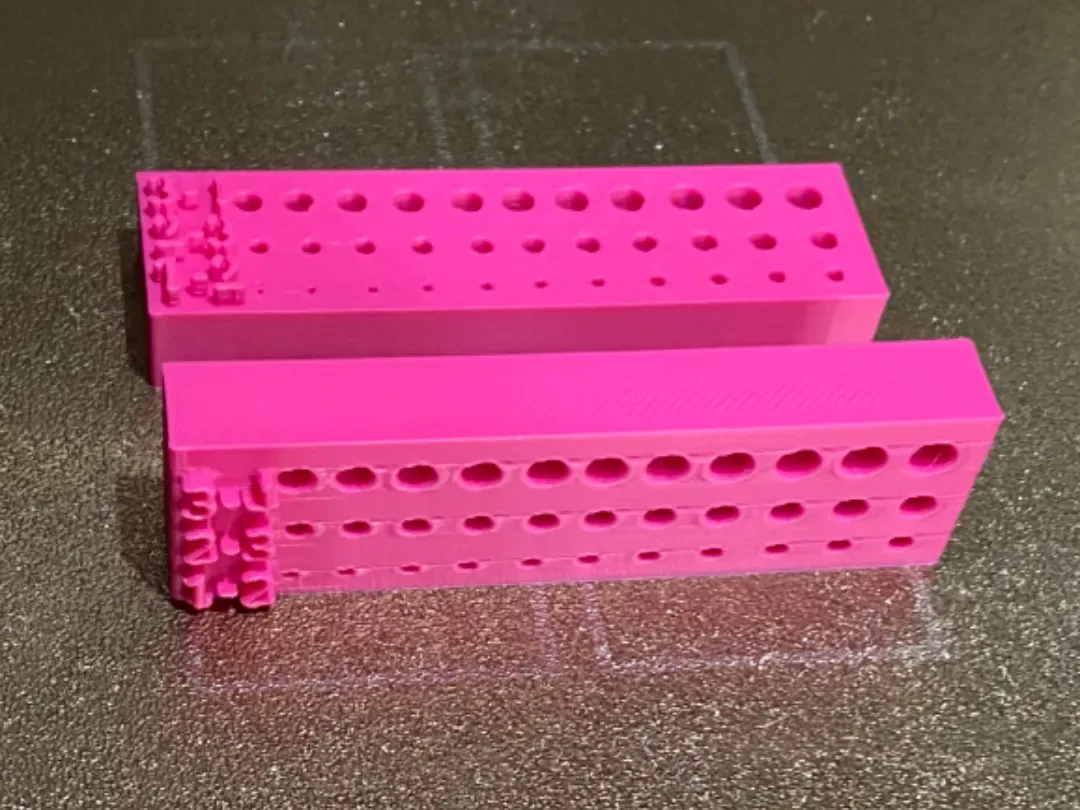

The printer does not always make holes that match the exact dimensions of the design. This tool allows you to test your printer's ability to make dimensional holes both horizontally and vertically. This is helpful when designing holes to catch the threads on self tapping screws or to find the diameter needed for a screw or bolt to pass through unobstructed. Each row contains 11 holes. The row marked 1-2 has holes that are 1.0, 1.1, 1.2, 1.3, 1.4, 1.5, 1.6, 1.7, 1.8. 1.9, and 2.0mm. The other rows are laid out in similar fashion, starting with 2.0, and 3.0mm. Print one with horizontal holes and one with vertical holes as the printer will interpret these differently. I have also found that black filament sags during printing and effects the shape of holes. If you are designing anything with screws or nuts and bolts this tool will help you find the right sized hole the first time. Boost Me (for free) If you like my models, please give them a boost! Your boosts are a great encouragement to me, and help me to keep making more fun models. Boost Membership Click "Join" to make a small donation or to purchase a license for the commercial use/sale of my designs. Thank you for your support. Join
