Large Volume H2C, H2D, and H2S Purge / Poop Chute

Designer

BrianDean

Designer relation

Followed

Kategori

3D Printer

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

MakerWorld Commercial License

Først set

2026-07-15 10:58

Sidst set

2026-07-15 10:58

Tags

purge chute waste poop h2d large h2s h2c

Beskrivelse

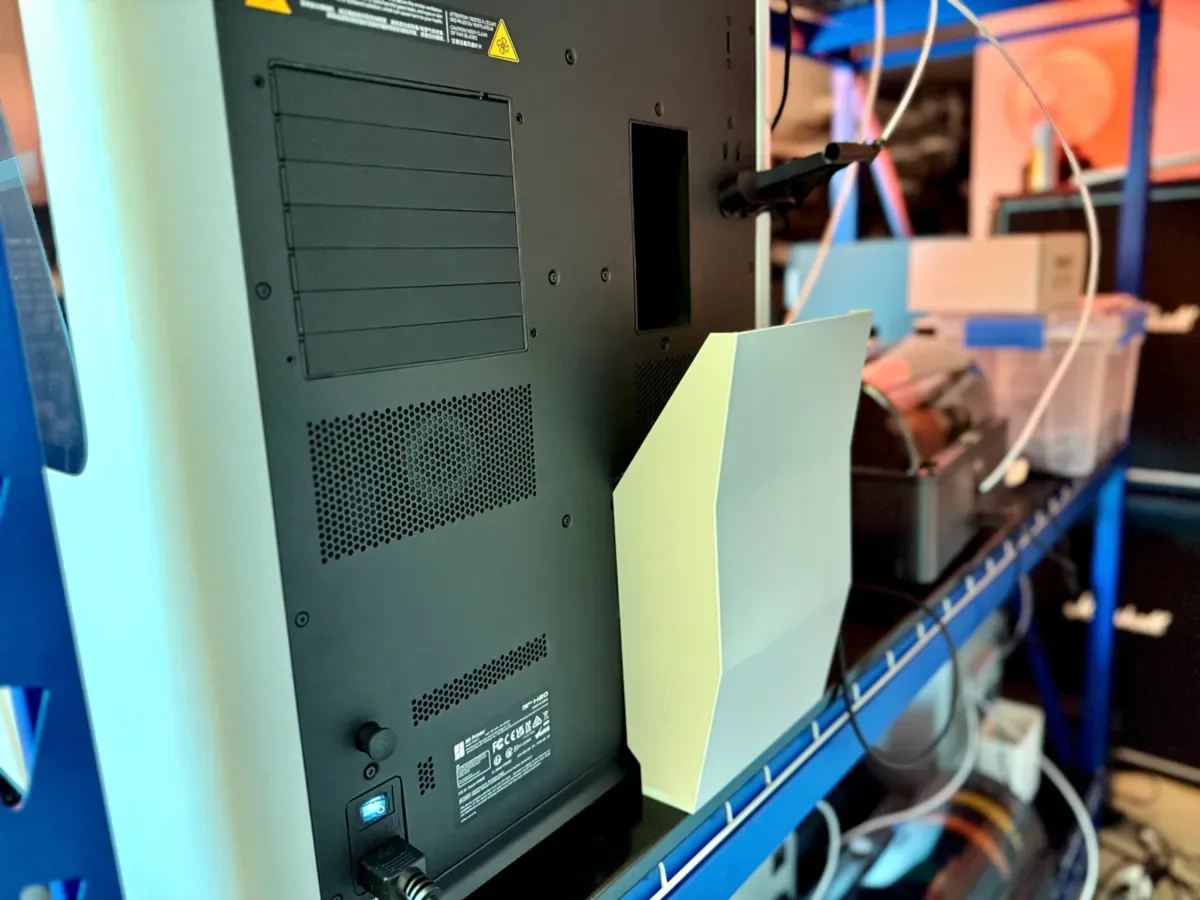

Membership Commercial Sales subscriptions 💰 now available. A single Battery Caddy sale covers your entire month! Join Boost Me (for free) If you like this model, please consider boosting me. It's free! Thank you! 💙💙🙏 Boost Large Volume H2C, H2D, and H2S Purge / Waste / Poop Chute Big, high volume, H2C, H2D, and H2S purge chute / poop chute — it holds a lot before having to empty it. I have verified fit for the H2C, H2D, and H2S. Easy and Functional This is an easy print with minimal supports. It uses a built-in pin-locator (no extra parts) so it can't slip around and move as the H2C/H2D/H2S prints, and is magnetically held to the back with 5x 12x3mm magnets so it's super easy to remove, empty it, and return it. Uses 12x3 magnets that are commonly available, and can be easily sourced from Bambu's Maker's Supply among other places. The magnets are press-fit and hold tight, no glue needed. If sourcing from Maker's Supply, get “D12x3 mm Round Magnet (20PCS) - CA010”. You'll need 5 magnets, that pack contains 20 magnets, so one pack is enough and you'll still have plenty to spare for other projects. I used my Embedded Magnet Dispenser to install them (shown in one of the photos): https://makerworld.com/en/models/60890-embedded-magnet-dispenser-tool-for-3d-prints#profileId-63102 Easy and Reliable It is simple – with no complicated Rube Goldberg “marble run” paths for the purge waste to traverse. There's not much that can go wrong here, no worries about clogs or other things. Just a large, simple, high volume and reliable purge chute for collecting the “poop” waste from filament changes and startup-purge. It stays in place, even with the H2C's, H2D's, and H2S's notorious wobble. And it's easy to remove to empty with no screws to undo to empty it or reattach. And it doesn't block the air vent in the back like some models do. I reviewed most of the various purge chutes available and none of them met my needs. They were either too small, or used complicated waste routing ramps or paths, routing around curves into separate baskets and just seemed overly complicated, and introduce prime locations for the waste to snag and pile up, eventually causing a clog or other problems. And some models even blocked the back air vent, which is not good. So I made this one for my own purposes in Fusion 360. It “self-locates” on the back with a built-in “pin locator” that fits in the 6-7mm hole in the back of the H2C, H2D, and H2S. And the magnets hold it in place so it can't “travel” as the printer shakes and wobbles as it prints. It is a nice, simple design that does its job well and without drama. The waste filament falls out of the chute exit and into the “bucket”. It's easy to remove, empty, and return. Clean and simple. I printed in both PETG and PLA. I prefer the PETG version, myself, but that's just personal preference. I hope you like it! Boost Me (for free) If you like this model, please consider boosting me. It's free! Thank you! 💙💙🙏 Boost Membership Commercial Sales subscriptions 💰 now available. A single Battery Caddy sale covers your entire month! Join
