Fully 3D Printed Monitor Riser

Designer

KL Worx

Designer relation

Followed

Kategori

Household

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

Patreon

Først set

2026-07-15 09:22

Sidst set

2026-07-15 09:22

Tags

monitor riser shelf desk drawers organiser drawer monitor lifter lifter shelf accessories organizer office office desk

Beskrivelse

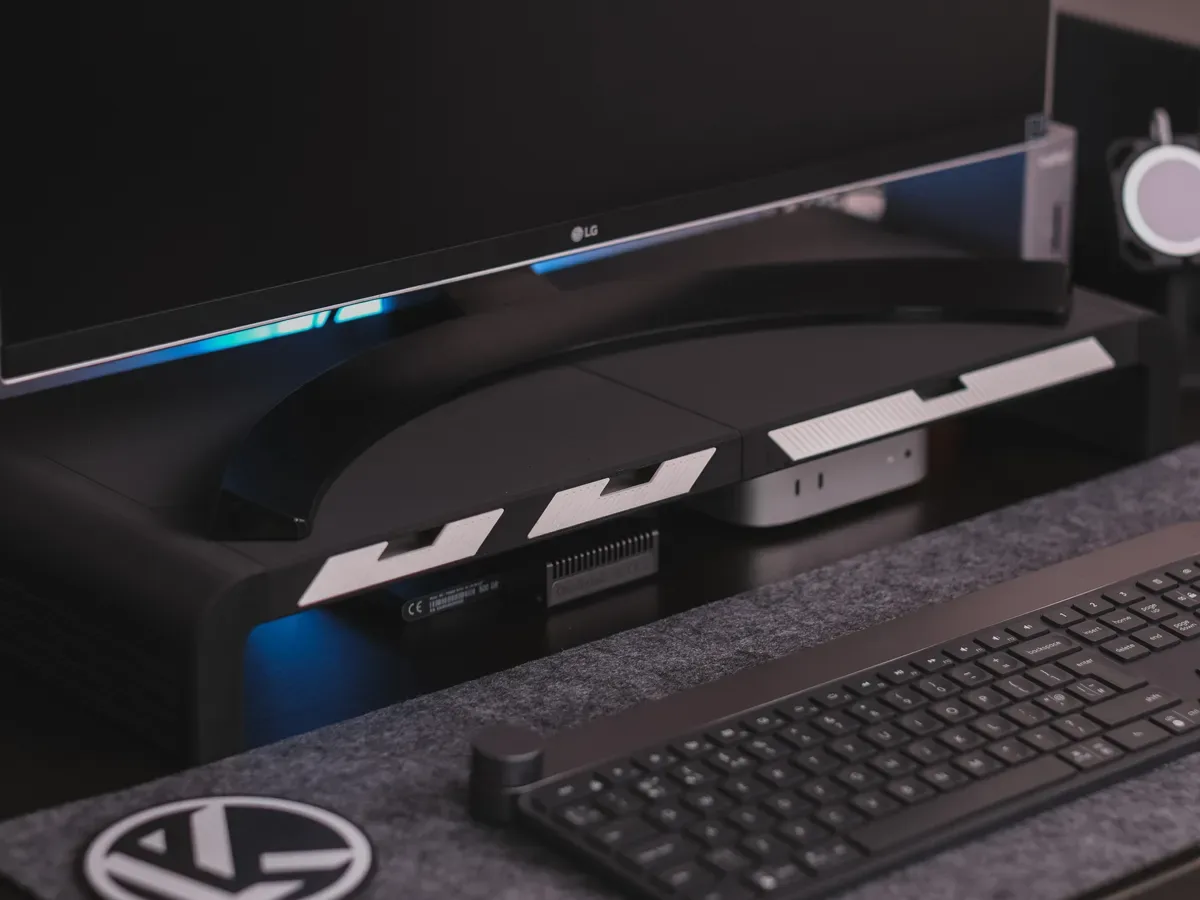

!!!Update!!! 04.05.2025 Redesigned middle leg and have to redesign both middle parts, added new print profile with all the modifiers and supports in place! Fully 3D Printed Monitor Riser with built in drawers combines functionality and style, perfect for an organised and modern workspace. Designed with sleek, minimalistic aesthetics, this riser elevates your monitor to an ergonomic height while offering hidden storage compartments for office essentials like pens, cables, clips and etc. DO NOT RECOMMEND to print this model on bed slinger printer (like A1), there may be weird layer shifting on last few layers do to model being tall, prints fine on CORE XY printers. I did experience this from my testing. Dimensions: W 58cm x D 24cm x H 8cm Features recesses for 8mm x 2mm silicon pads on feet, 6 together. Also features 8mm x 2mm magnet cutouts for drawers, 14 together. If you decided to use magnets, strongly recommend to add a pause when printing both top sections, right after cutouts are printed and insert magnets then, otherwise will be challenging to insert magnets when parts are printed. Printing: I have included print profile which worked best from my testing, there are modifiers in place for infill to make the parts stronger where they intersect to each other. Assembly: When all the parts are printed, you can slide it all together. Assembly is very easy. I have not glued my monitor riser together, but if it feels wobbly or just wanted to make it permanent, then feel free to glue all the parts together. For reference that is 27" monitor in pictures. Hope you like it, any suggestions how to make it better are welcome in comment section. All photos uploaded are of the actual printed model, and are copyright protected If you enjoy this model please consider to buy me a coffee Commercial licence membership available through the link below or on my Patreon Membership With a Commercial License Membership, you gain the right to sell 3D prints made from my designs. Join
