F-16 Cockpit Center: Standby Attitude Indicator
- Designer
- Greenisland
- Designer relation
- Ingen
- Kategori
- Aircraft & Space
- Licens
-
Ukendt Ikke mappet til Scout licenskatalog
- Designer commercial
- None
- Først set
- 2026-07-15 08:15
- Sidst set
- 2026-07-19 08:55
- Tags
Beskrivelse

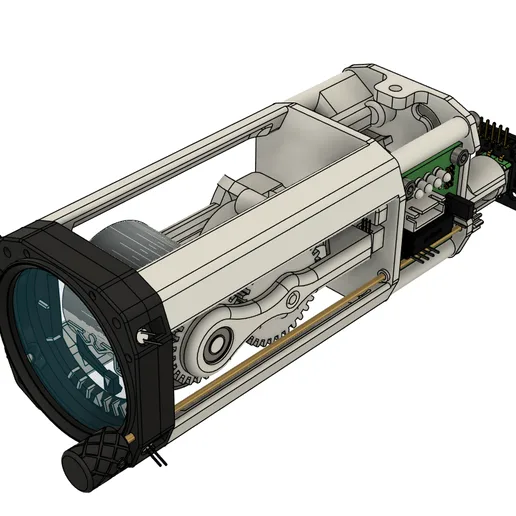

Working replica of the Standby Attitude Indicator (SAI) instrument mounted on the upper right main instrument panel. Enlightable with LEDs, powered by two stepper motors It provides not all but the main functions of the real instrument. **You get:** - 3d printable Attitude Indicator instrument - decal files to print out on self adhesive foil - Arduino test example code - assembly guide to assist with construction **You need:** - 3D Printer - 2 mm transparent acrylic sheet for instrument glass - 4x 3mm LED bright green for enlighting instrument - 2x 28 BYJ-48 stepper motor and its driver board - 2x Hall Effect sensor A3144 - 2x 5x5x5mm Neodymium Magnets - 1x slip ring with 8 wires, 6.5 mm diameter, 11,8 mm length - 1x ball bearing, model: 1622-2RS - various brass inserts (M3, M2.5) + screws - 4 mm brass rod, 160 mm length - M3 screws with nuts and washer of different length - general tools like sanding paper, drills, soldering iron, CA-glue dimensions: 58 x 58 x 175 mm **[Youtube Video](https://youtu.be/0DP_RKDmWio)**
