Adjustable / lockable multimeter probes connector

Designer

HunterRod

Designer relation

Ingen

Kategori

Hand Tools

Licens

Creative Commons Attribution NonCommercial Creative Commons - Attribution - Non-Commercial

$ ↺

Attribution påkrævet; kommerciel brug er ikke tilladt.

Designer commercial

None

Først set

2026-07-14 20:24

Sidst set

2026-07-19 08:20

Tags

multimeter multimeter clip multimeter holder multimeter probe

Beskrivelse

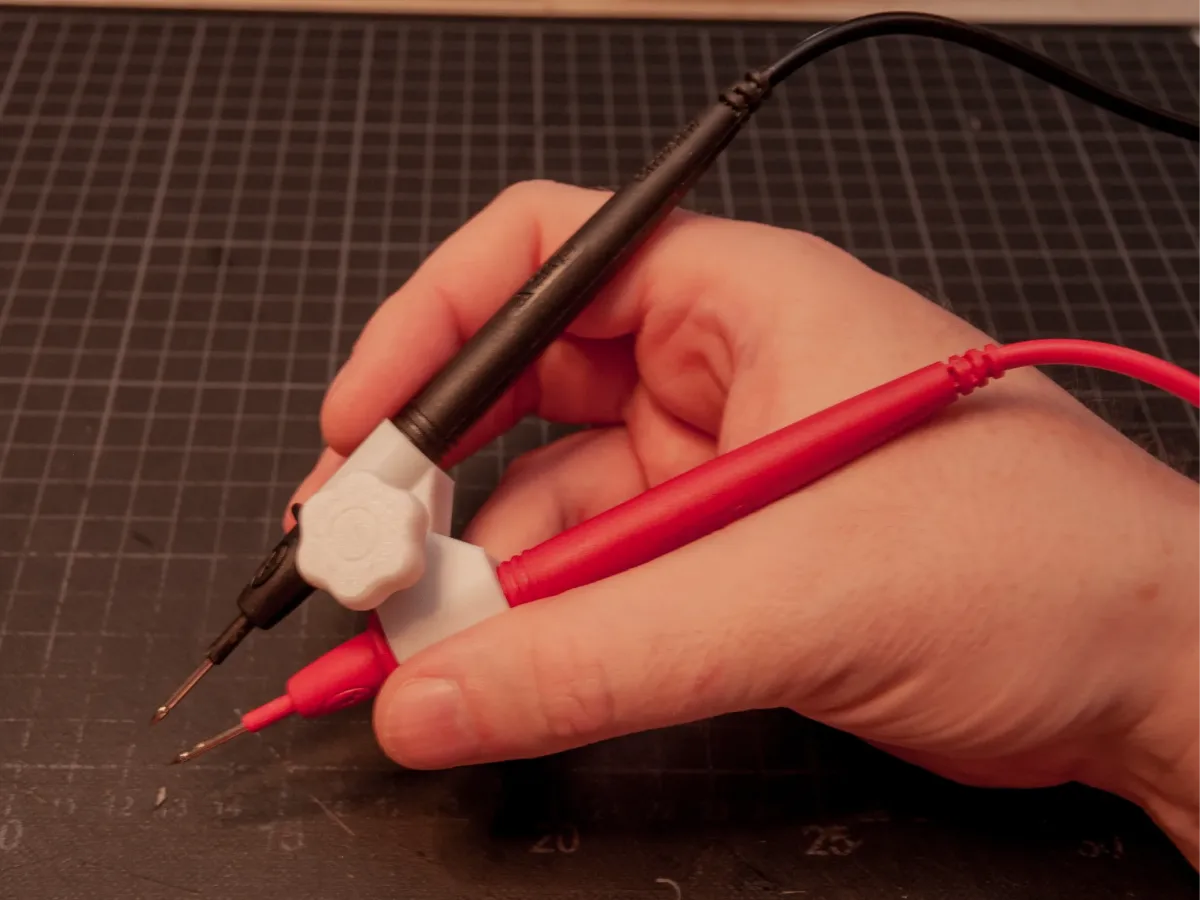

I've seen a lot of multimeter probe clips on this site recently, but they were all tweezer style clips. So I made these which can be freely adjusted and locked in position. The clips are designed for probes with an 11 mm diameter, but I also included a step file, so the clips can be adjusted in modeling software such as Fusion360. The handle on the screw isn't my design, so I didn't include it. You can use https://www.thingiverse.com/thing:7316340 or https://www.thingiverse.com/thing:2186175 instead. Other required parts: One M4 bolt that's at least 25mm long, together with a fitting Heat Set Insert.
