Modular Ikea Kallax Drawers V2

Designer

mvgordon

Designer relation

Ingen

Kategori

Tools

Licens

Creative Commons Attribution NonCommercial ShareAlike Creative Commons Attribution-Noncommercial-Share Alike

$ ↺ SA

Attribution påkrævet; kommerciel brug er ikke tilladt; ShareAlike gælder for afledte værker.

Designer commercial

MakerWorld Commercial License

Først set

2026-07-14 16:37

Sidst set

2026-07-14 16:37

Tags

drawer drawer system ams drawersystem KALLAX kallax drawer kallax drawers IKEA Kallax ikea kallax accessory ikea kallax compatible ikea kallax insert ikeakallax kallax storage storage storage system storage systems modular modular storage modular drawer storage modular storage box kallax mount GRIDFINITY gridfinity drawer gridfinity drawer organizer gridfinity drawers ikea gridfinity

Beskrivelse

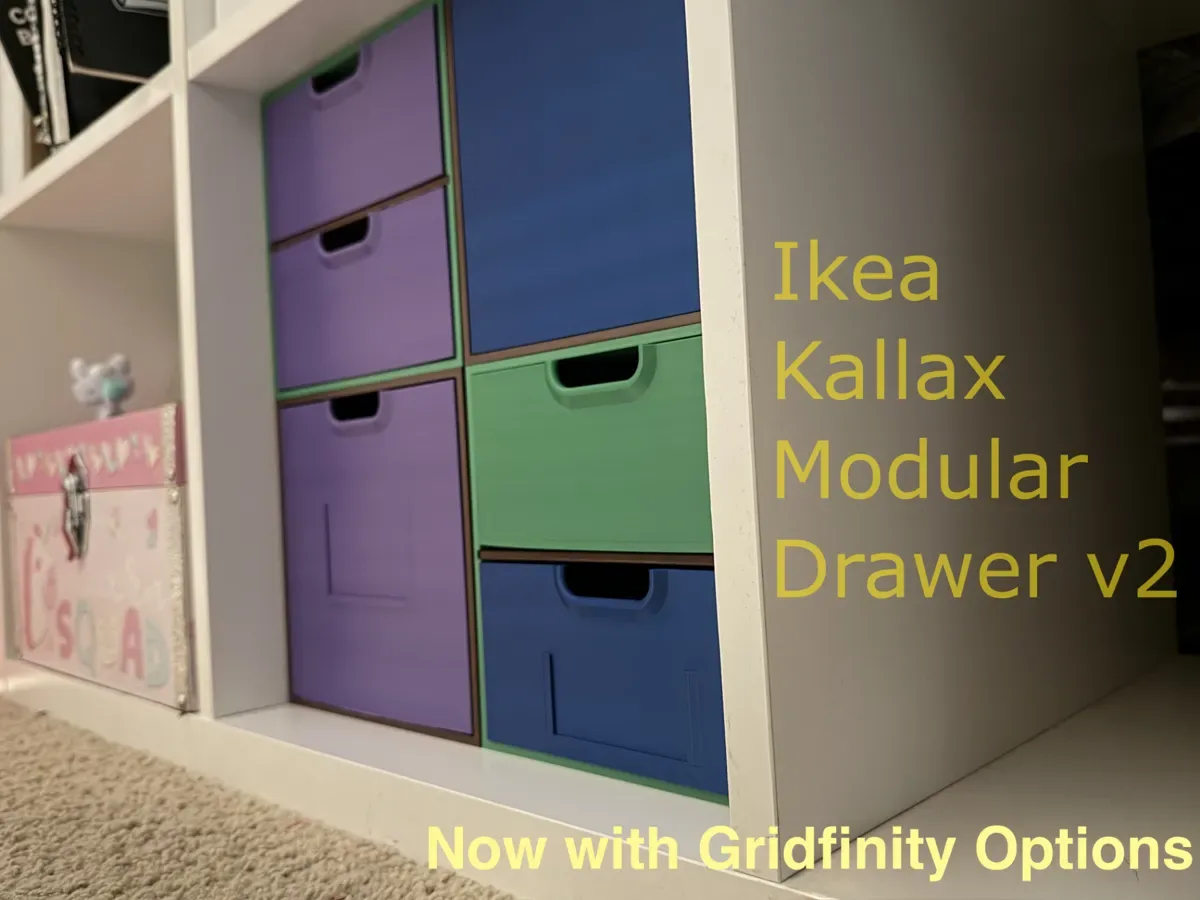

Update April 12, 2026 Added front designs from original drawer for all sizes in the larger H/X/P/A-series drawers on this post Update Mar 28, 2026 Added: New Gridfinity drawer options in both drawer sizes for the H and X/P series drawers New Gridfinity inserts options for the H and X/P series drawers that slides into existing drawers Note: since these drawers were originally designed for the Ikea Kallax shelf, there are small gaps on the internal edges of the drawers, but I maximized the space as much as possible H-Series drawers and inserts are 3x7 Gridfinity for 21 total slots X/P-Series drawers and inserts are 3x5 Gridfinity for 15 total slots Main Description This is a revision of my original Ikea Kallax Modular Drawer design based on community feedback and some design ideas I have been wanting to implement after the original posting. Like version one, the design is entirely support free. Improvements: Larger design to take full advantage of the different print bed sizes A print profile sized for the X/P series printers and A1 printer (no A1 mini) A print profile sized for the H series printers More efficient design on the cubbies Adjusted design to save filament but still keep structural integrity Redesigned the locking section on the cubbies for nesting the drawers together for a better fit Added a label holder option on both sized drawers for a cardstock/paper label The paper will slide from the top along the tracks and can be removed With the larger drawers are larger drawer dividers, which can create more customizable drawer sections Label Size: Full Size Drawers US Standard: 2.75" x 1.5" Metric: 70mm x 38mm Half Size Drawers US Standard: 2.75" x 2" Metric: 70mm x 50mm Tip(s): Make sure filament is dry and/or tuned for the printer when printing the drawers with the labels since the tolerances are tight Boost Me (for free) Boost or no boost, I am still happy you stopped by. Thanks! Boost Smooth Vertical Lines Double Slant Right and Left Downward slant
