3D Filament Sample Card Color Swatch Stand

Designer

yekta

Designer relation

Followed

Kategori

3D Printer

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

Patreon

Først set

2026-07-14 16:37

Sidst set

2026-07-14 16:37

Tags

card filament sample color print printer storage storage box 3d stand sample card filament sample bambu a1 a1 bambu p1s color sample h2s h2d swatch color swatch filament swatch filament color test test model material voxel voxelpla prusa prusament overture elegoo esun spool porima polymaker solid sunlu jayo bambu lab

Beskrivelse

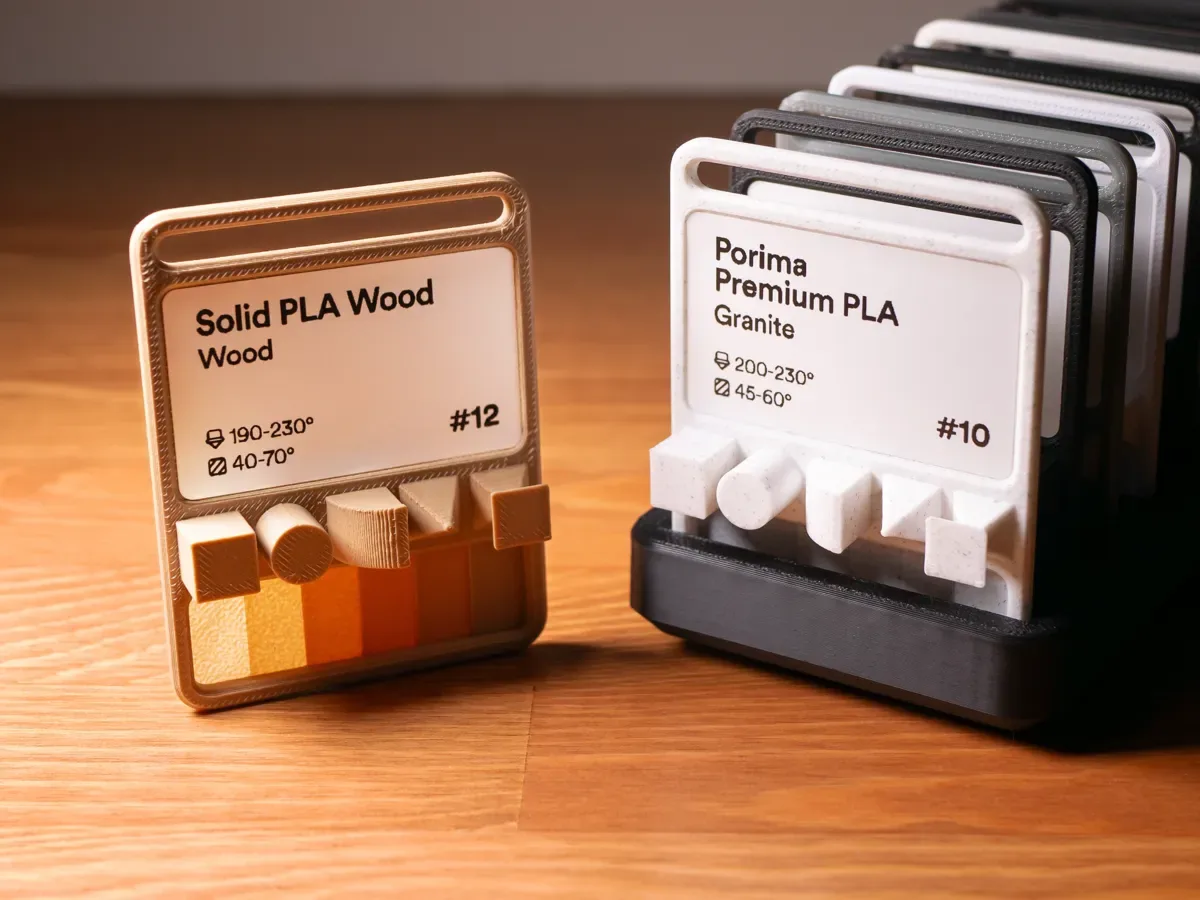

This is a 3D filament card designed to provide an accurate representation of your filaments when printed. I've tried the flat ones and was not satisfied. They were not giving me a good enough idea on how the filament would look when printed. This one shows side & top surfaces, curves, overhangs, points, and transparency (the lines at the bottom are 0.2, 0.4, 0.6, 0.8, 1.0, and 1.2mm deep). It's still easy to print and store. Takes about 30 minutes to print, uses about 10 grams of filament. Boost Me (for free) I've shared the Onshape link below and uploaded STEP files so that you can edit the model. If you like it, consider giving it a boost. Boost Do you want to sell 3D prints of my designs or support my work? Join my commercial membership on Patreon 🎉 → Model link on Onshape ← These are the versions available: For 50 × 30mm labels (2mm radius corners) For 40 × 30mm labels (2mm radius corners) For 2.25" × 1" labels (2mm radius corners) - Check the profile named “All Sizes” For 50 × 15mm labels (2mm radius corners) - Check the profile named “All Sizes” I'm using NIIMBOT B1 printer personally, with 50 × 30mm labels. Here is the Amazon USA link: Link to NIIMBOT B1. All card styles have their own stands. There are slots for 12mm diameter non-slip feet at the bottom of the stand (anything smaller would also work). If you don't have a label printer, you can also use the “Text" function in Bambu Studio to add the text physically on the model. If you have a label printer that uses a different label, let me know and I'll upload profiles for that as well. Check out my other accessories: A1 Maintenance Tools & Box (Lubing & PTFE Tube) Clamshell Box - 20+ Variants - 33gr Filament Bambu Bed Scraper & Stand Tweezer Set & Mangetic Case (4 Different Tweezers) Modern Japandi Trays (Perfect for Tea Bags) Auto-Locking Towel Hanger (Gravity Wall Hanger)
