Magnet Switch Lamp – Magnetic Toggle with Dimmer
- Designer
- DjangoCashflow
- Designer relation
- Followed
- Kategori
- Household
- Licens
-
Standard Digital File LicenseSe platformens konkrete vilkår.
- Designer commercial
- MakerWorld Commercial License
- Først set
- 2026-07-14 16:37
- Sidst set
- 2026-07-15 10:58
- Tags
Beskrivelse

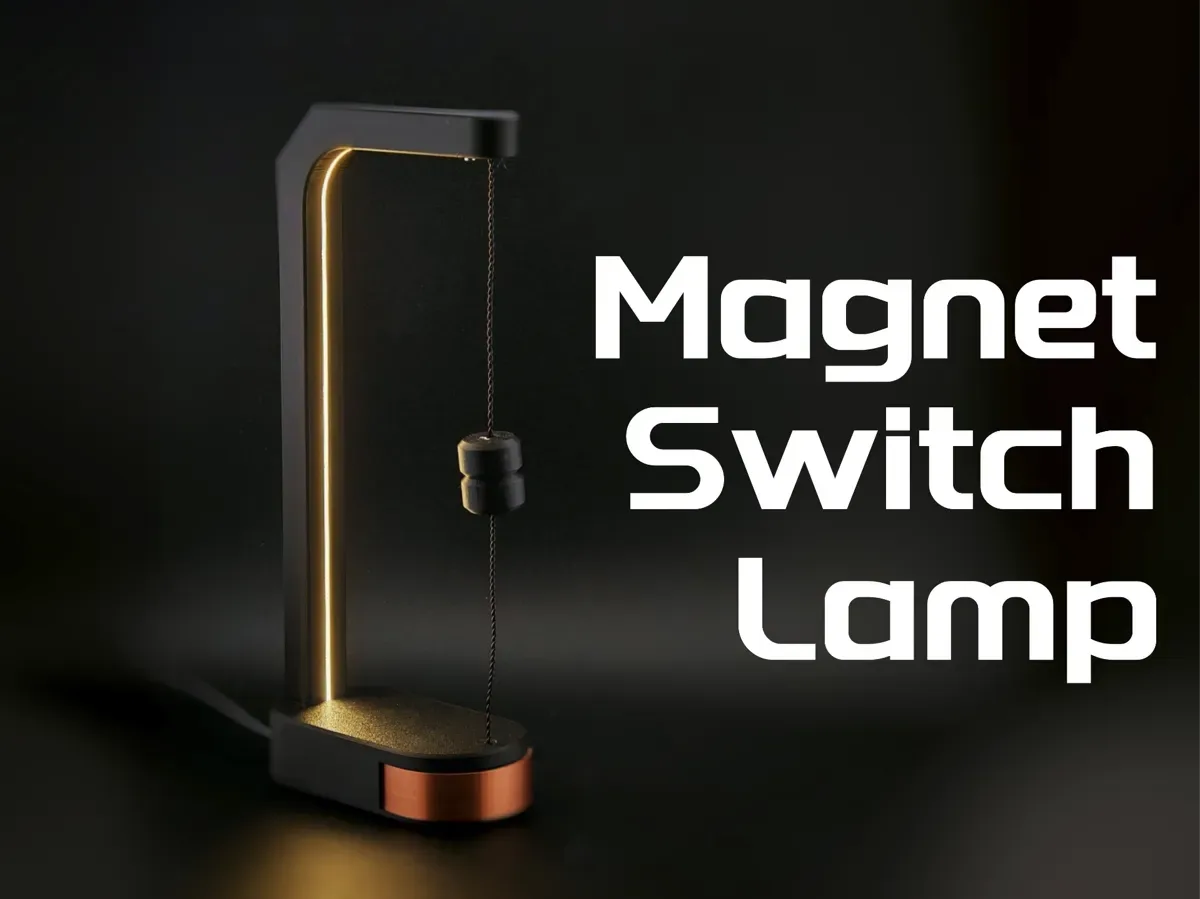

Magnet Switch Lamp A minimalist lamp with a magnetic twist. This clean, modern desk lamp turns on only when the two magnetic ends of the hanging cable connect creating a physical, satisfying switching action. Inside the base, the copper-colored dial isn't just a design accent: it's a smooth rotary dimmer that lets you adjust the light level with precision. The warm light is provided by a COB LED strip embedded in the vertical arm, delivering even illumination without harsh shadows. Key Features: Magnetic switch mechanism: the lamp only lights up when the magnetic ends are joined Integrated dimmer: control brightness via the copper front wheel Warm COB LED strip for soft, direct lighting Modern form with easy assembly and clean prints All components sourced from MakerWorld Maker Supplies Assembly Guide Required Parts (from Maker Supplies) M2×4 SHCS machine screw (10x) 300×1mm COB LED strip light (1x) 7mm round magnetic connector with SH1.0 (2x) Power distribution board (4-channel) (1x) Potentiometer board with SH1.0 connector (1x) 100mm wire pair with SH1.0 (5x) SH1.0 to SH1.0 connector adapter board (1x) Step 1: Test the electronics before assembly To avoid reassembly later, connect all electronic components and verify functionality: Wiring overview: Refer to the diagrams provided: Side 1: Connect Potentiometer to the first port Connect Magnetic Switch to the second port Side 2: Connect COB LED to its port Connect USB power to the power input Once connected: Plug in the USB power cable. With the magnetic switch disconnected, the light should remain off. Make sure to insert a jumper cable at the other magnetic switch Bring the magnet halves together — the light should turn on. Turn the copper-colored dial (rotary potentiometer) to verify smooth dimming. Step 2: Mount Electronics and Route the Magnet Cable Potentiometer & Front Dial: Mount the potentiometer board into its position behind the copper front dial. Secure it with two M2×4 screws through the mounting holes. Ensure the shaft aligns with the opening for the dimmer knob. If needed, trim or slightly sand the knob for a snug press-fit. Power Distribution Board: Place the 4-channel power distribution board into its cavity in the base. Fix it using screws and brass inserts if your model includes them. Connect the potentiometer using a SH1.0 cable to the right port of the input ports. Connector Adapter (SH1.0 Extension): If your cables are only 100 mm, use the SH1.0 to SH1.0 adapter board to bridge the connection. You can either: Glue the adapter board to the inside wall of the base (as shown), or Use a 200 mm cable instead, if available (more elegant, but depends on cost/availability). Magnetic Switch Cable: Route the cable for the magnetic connector through the small side hole in the base. Once threaded, glue the hole with the provided 3D printed cable collar for a clean exit and strain relief. Cable Management: Twist cables loosely to reduce clutter and avoid sharp bends. Keep wiring flat against internal walls to ensure the bottom cover closes cleanly. tep 3: Install the COB LED Strip Insert the COB strip: Carefully press the 300×1 mm COB LED strip into the vertical groove of the lamp arm. The strip should sit flush and straight. Avoid bending or twisting the LED strip. Route and connect the LED cable: Connect the LED wires to the controller board (as shown in the image). Secure the LED cable inside the LED housing using the provided recess or clamp feature. Connect to power distribution: Plug the LED connector from the controller board into the right of the output ports of the power distribution board. Step 4: Assemble Top Housing and Magnetic Switch Top cable feed: Insert one end of a 100 mm SH1.0 cable into the hole at the top of the lamp arm. Close off the top with the printed cable exit cover and secure it with two M2 screws. Magnet switch wiring: Thread both cables (from the top and from the base) through the lower magnet half shell. Use the small 3D printed cable c
