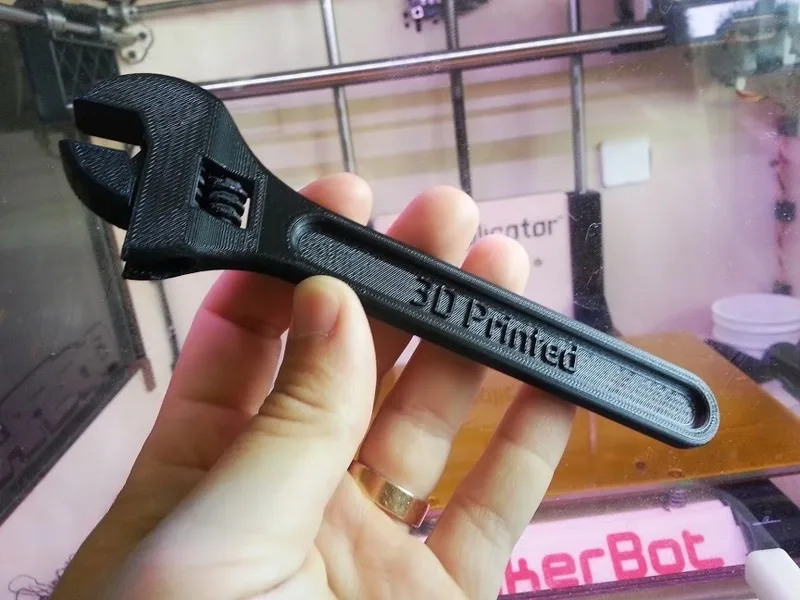

Fully assembled 3D printable wrench

Designer

DanielNoree

Designer relation

Ingen

Kategori

Ukendt

Licens

Creative Commons Attribution

$ ↺

Attribution påkrævet.

Designer commercial

None

Først set

2026-07-12 22:32

Sidst set

2026-09-18 08:25

Tags

tool 3dprintable 3dprinted Barspin Daniel_Noree wrench moving_parts Shifter

Beskrivelse

After watching the infamous video from a few years back where Z-Corp prints a fully working wrench i decided i wanted to do the same thing on my own printer. Now, i am not talking about a "print-several-pieces-and-then-assemble" version which there are already a ton of on the internet. What i wanted to do was something i could print and that would actually be fully working straight out of the printer. I like to think i came pretty close. All you need to do is to remove the internal support and your done! Keep in mind this is a proof of concept, i just wanted to see if i could do it. Updated 2013-10-16: Added "Printable Wrench W Longer Screw" which has a longer "screw" (3mm). Updated 2013-08-30: I have added two new files. One with a slightly bigger gap between moving parts. This one has 0,55mm gap instead of 0,35mm. Let me know if it works out (in particular with PLA). I have also added a STEP file with no support for anyone who might want it. Check out this Pinshape video where this wrench is featured: https://youtu.be/HhqpW4a0tso Here is a short video: http://youtu.be/oMmsJVUAK3Q Experimantal "heavy duty" version: http://youtu.be/oMmsJVUAK3Q Home - Things - GooglePlus - Twitter - Facebook - Youtube - Instagram - Vimeo - LinkedIn
