Cat5e UTP/Ethernet cable clip with screw holes

Designer

peterviszt

Designer relation

Ingen

Kategori

Hobby & Makers > Electronics

Licens

Creative Commons CC0 Creative Commons — Public Domain

$ ↺

Ingen attribution påkrævet.

Designer commercial

Other

Først set

2026-07-12 13:10

Sidst set

2026-07-12 20:10

Tags

utpcable utp cat5 cat5e

Beskrivelse

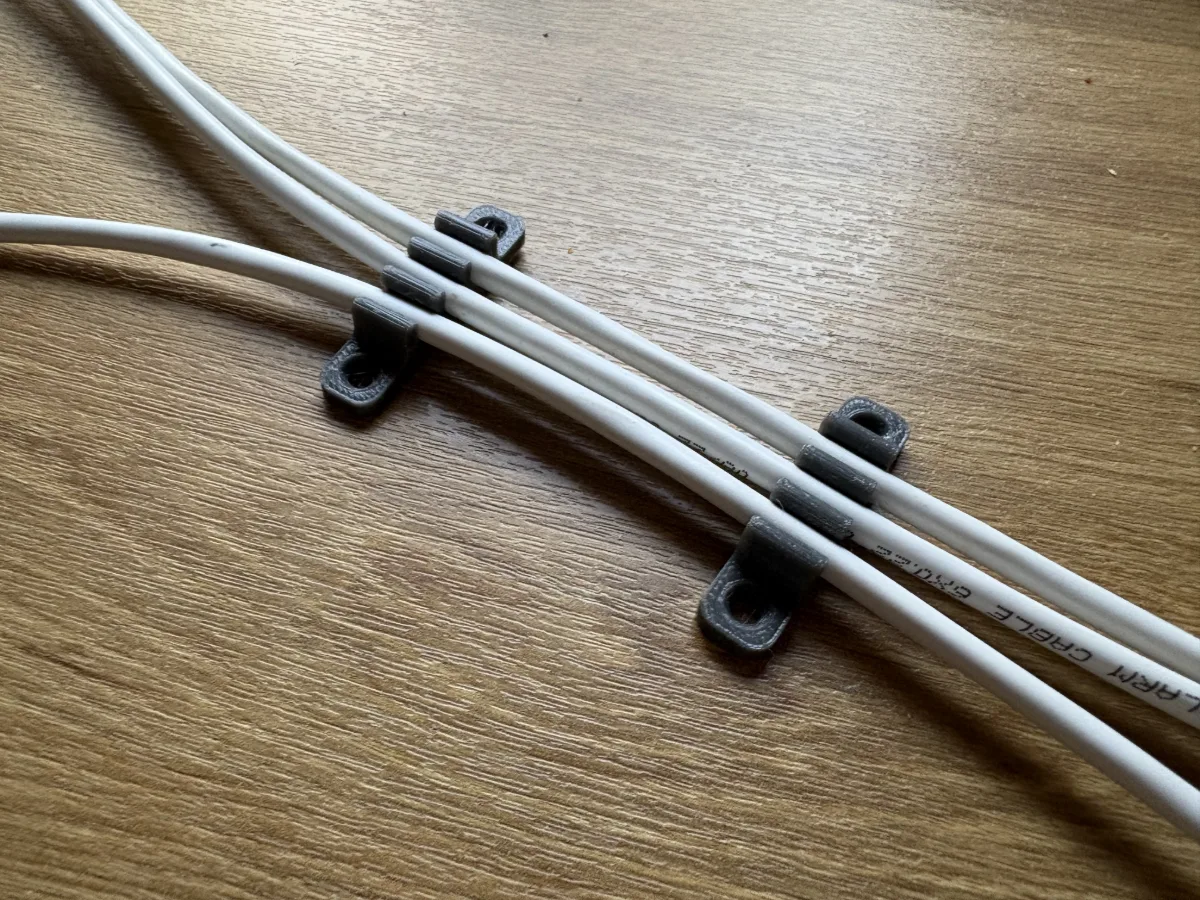

This is a small modular cable clip / cable comb designed for Cat5e UTP cables with an outer diameter of around 5 mm . The cables snap into the clip nicely and are held securely, making it useful for keeping network cables, low-voltage wiring, or similar small cables tidy. The included STL and 3MF files contain versions for 1 to 8 cables , so you can choose the size that fits your installation. The model can also be scaled up or down slightly to fit other cable diameters. The model is split into parts, which makes it easier to customize manually: - Use only the number of cable slots you need - Combine sections to make longer clips - Remove the screw holes if they are not needed The screw holes are 4 mm in diameter , suitable for common mounting screws. Designed around 5 mm diameter Cat5e UTP cable . For other cable sizes, scale the model up or down slightly until the clip fit is right. Printing a short test piece first is recommended when using different cable diameters. The cable slots are designed so the cables clip in from the top, so you do not need to thread the cable through from the end.
