Make a DIY video editing keypad Navio Chron to achieve Tourbox-like functionality for a cost of 50 yuan

Designer

喵武士

Designer relation

Ingen

Kategori

Hobby & DIY

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

MakerWorld Commercial License

Først set

2026-09-17 04:00

Sidst set

2026-09-18 08:00

Tags

Keyboard 鼠标 editing tourbox Knob Keypad

Beskrivelse

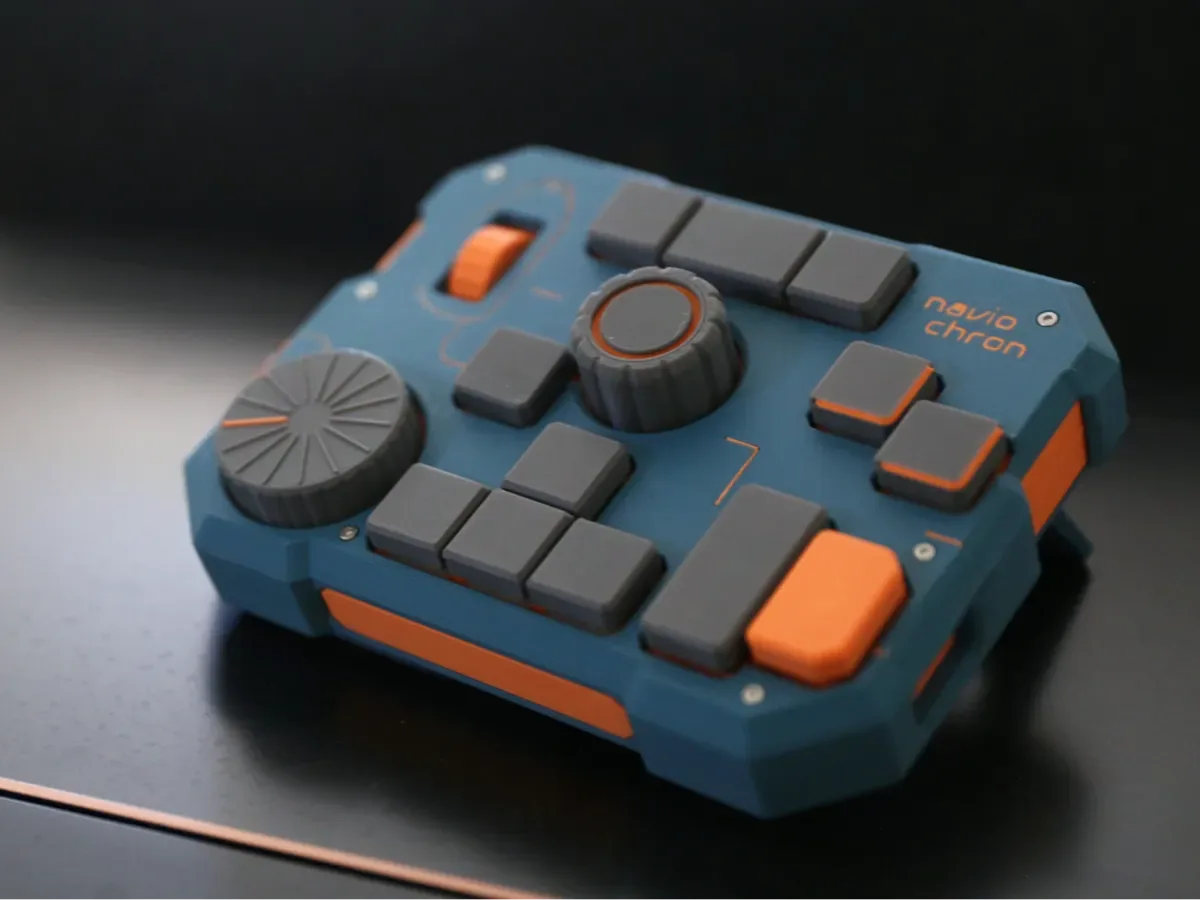

Boost Me (for free) Boost Navio Chron is a keypad project that works like a Tourbox, convenient for video editing, and can also connect to an iPad for drawing This version is currently Version 1. Instead of reverse-engineering a Tourbox terminal, it uses an ESP32 and standard keyboard HID protocol to build a driver-free "Tourbox" with DIY low-cost hardware and custom code. It can be used as a learning resource for entry-level DIY enthusiasts like Up who are interested in ESP32 or Arduino development Going forward, I will update it gradually to implement a highly customizable "Tourbox" using HID Vendor features + Python service, as well as how to adapt it for drawing software on iPad The new hardware version uses the ESP32 SuperMini development board as the main controller, which simplifies soldering complexity and can basically be soldered with a regular soldering iron. The appearance uses a new color scheme, especially with this foldable small stand that supports two different tilt angles for a more comfortable user experience Code and BOM: https://github.com/Cityforest2000/Navio-Chron PCB: https://oshwhub.com/cityforest
