Custom "The Ledge" case panels and feet

Designer

Vestis

Designer relation

Ingen

Kategori

Gadgets > Computers

Licens

GNU GPL GNU General Public License v3.0

$ ↺ SA

Copyright notice og licenstekst skal bevares; afledte værker skal distribueres under GPL-kompatible vilkår.

Designer commercial

None

Først set

2026-09-17 00:10

Sidst set

2026-09-18 08:10

Tags

Gadgets Computers

Beskrivelse

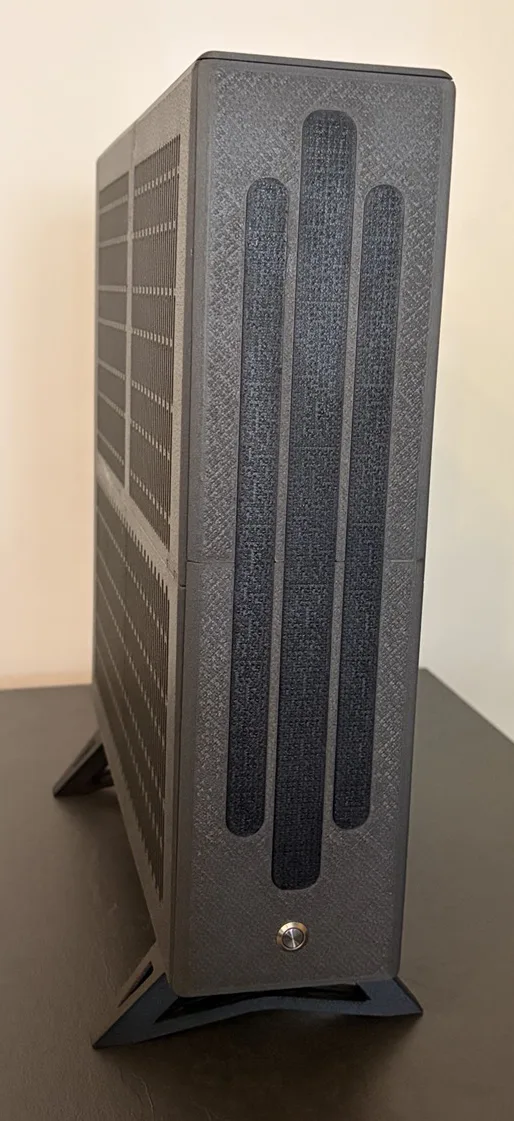

This is a remix of the panel files of the "The Ledge" SFF PC case. The mainboard mount is only compatible with an ITX mainboard. Everything has been optimized for a 256 mm² print bed. The panels are fused so that there are only 4 parts to print per side. The mainboard mounting standoffs have been separated from the panel to allow printing in reverse orientation. They are glued in. The front panel with its inlay have been changed to a three line design. I've had some problems gluing them in. If you want to print them I'd suggest to slightly resize the inlays, they were extremely snug. (glued them in and had a lot of clamping force applied until dry) I've designed the pull-ins to counter a slight outwards bow of the side panels. They are made for 60x10x3mm magnets. They are straight up just glued to the side and front panel and pull the parts together. It is quite possible that you don't need them. The fan spacer is to bridge the gap for the CPU cooler and side panel. The feet are a remix of this monitor riser: https://makerworld.com/en/models/1424826-table-legs-monitor-riser-desk-riser-laptop-riser-m They are simply glued to the bottom panel and are only compatible with the case in vertical orientation. They are far more stable than the default
