Heavy-duty 3-way 90° corner connector- Tent Pole

Designer

By_ISIK

Designer relation

Ingen

Kategori

Sports & Outdoor > Outdoor Sports

Licens

Creative Commons Attribution NonCommercial Creative Commons — Attribution — Noncommercial

$ ↺

Attribution påkrævet; kommerciel brug er ikke tilladt.

Designer commercial

None

Først set

2026-09-17 00:10

Sidst set

2026-09-18 08:10

Tags

connector cornerbracket heavyduty tent tentpole

Beskrivelse

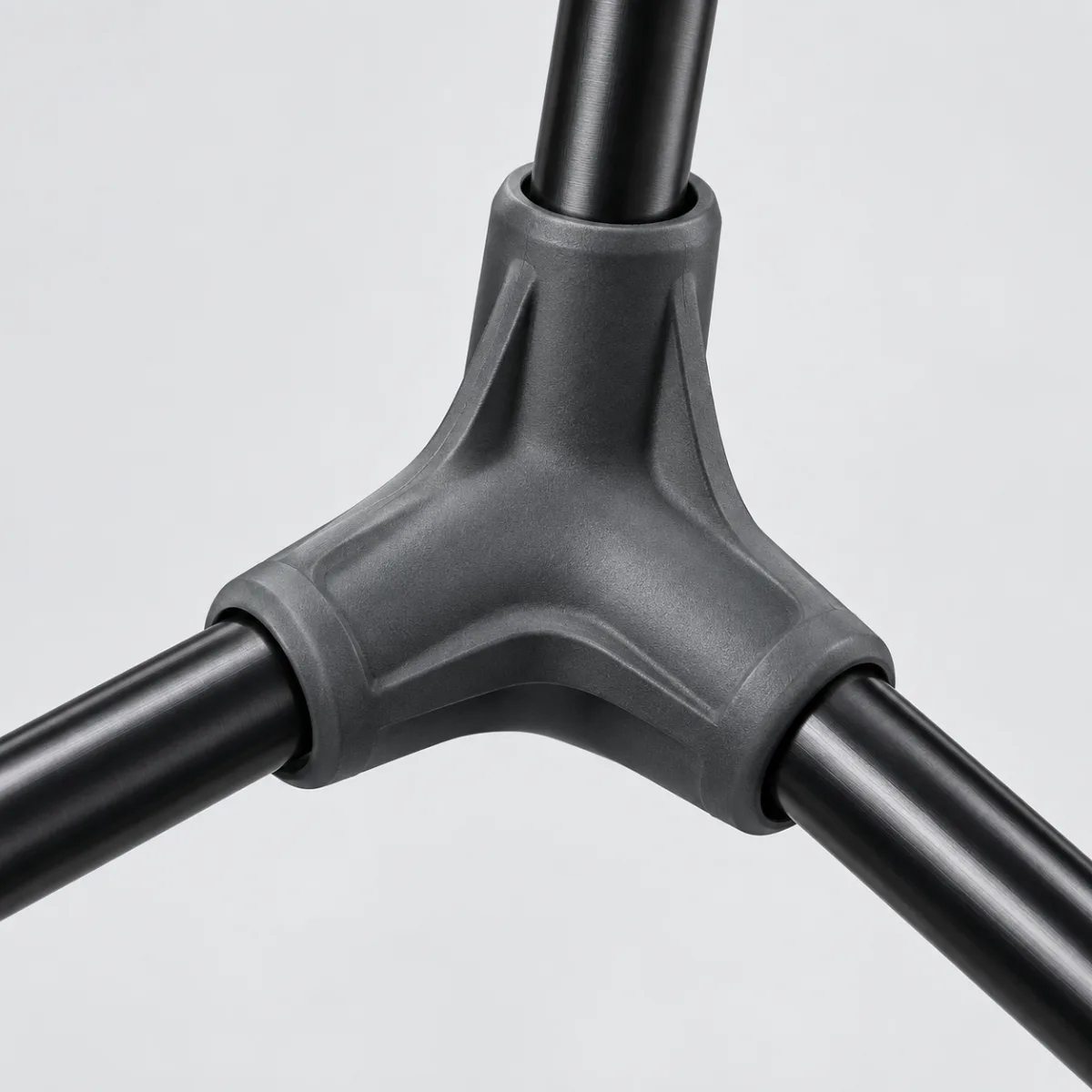

3-Way Heavy-Duty Tent Corner Connector A reinforced 3-way 90-degree corner connector engineered for tent poles, tarps, and custom outdoor shelter frames. Designed specifically for high-stress applications such as camp kitchens and pyramid structures, it features integrated load-distribution gussets, conical root transitions, and a spherical core to prevent cracking under wind and leverage loads. Slicer Scaling Percentage Chart The baseline model is designed at 1:1 scale (100%) for 7.6 mm outer diameter (OD) poles. Target Pole OD Slicer Scale Factor (%) Socket Depth Connector Outer Diameter 6.0 mm 79.0% 23.7 mm 10.6 mm 7.0 mm 92.1% 27.6 mm 12.4 mm 7.6 mm (Base Model) 100.0% 30.0 mm 13.5 mm 8.5 mm 111.8% 33.5 mm 15.0 mm 9.5 mm 125.0% 37.5 mm 16.8 mm 11.0 mm 144.7% 43.4 mm 19.5 mm 16.0 mm 210.5% 63.1 mm 28.3 mm Scale Factor (%)=(Target Pole OD7.6)×100\text{Scale Factor (\%)} = \left(\frac{\text{Target Pole OD}}{7.6}\right) \times 100Scale Factor (%)=(7.6Target Pole OD)×100 3D Printing Settings Guide - Material: Use PETG , ASA , or ABS for outdoor weather and UV resistance. - Wall Loops: Set 6 to 8 walls to make the socket arms 100% solid. - Infill: 45% - 50% Gyroid infill for multi-directional strength. - Print Temperature: Print at the upper limit of your filament range to maximize layer bonding. - Orientation: Place the central core at a 45° angle on the build plate to prevent layer lines from aligning with bending stress. 3D Modeling Design Rules - Hole Clearance: Add +0.25 mm to +0.35 mm to the nominal pole diameter for press-fit and epoxy clearance. - Socket Depth: Keep the socket insertion depth at at least 4× the pole diameter . - Corner Fillets: Add minimum R2.0 mm to R3.0 mm fillets on all connecting roots to eliminate stress concentrations. - Lead-in Chamfers: Include a 1.5 mm to 2.0 mm 45° chamfer at each socket entrance for smooth pole insertion.
