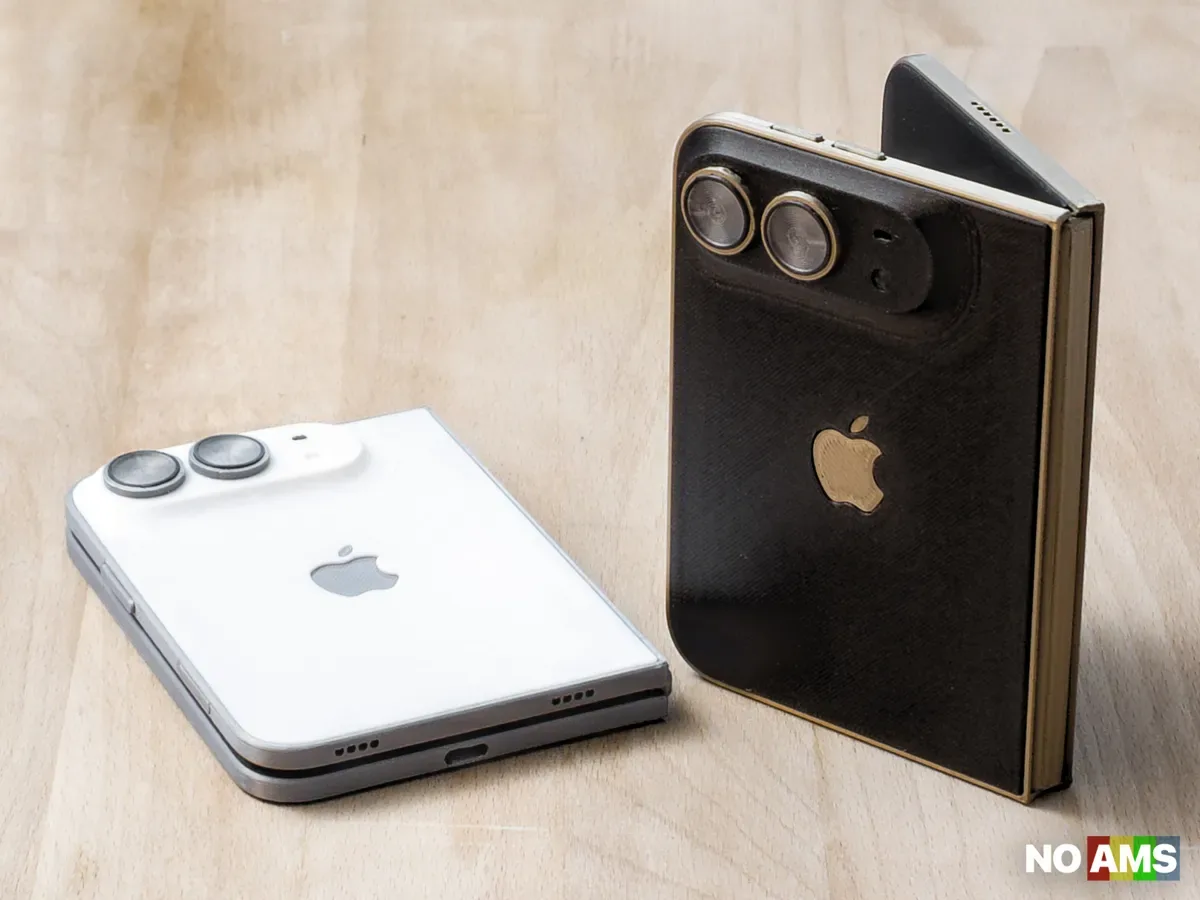

Accurate iPhone Duo Dummy with Magnetic Clasp

Designer

MOSS 3D

Designer relation

Ingen

Kategori

Tools

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

MakerWorld Commercial License

Først set

2026-09-16 12:00

Sidst set

2026-09-18 08:00

Tags

iphone iphone duo iphone ultra dummy replica toy apple mockup dummy phone moss3d makerworld bambulab duo phone a1 mini

Beskrivelse

Boost Me (for free) If this model helped you please consider giving me a boost. Thank you Boost _________________________________________________________ Hello Everybody! Today, I have a 3d model of the iPhone Duo for you. As I've been working on a case for the Duo, I needed an accurate dummy to test it with. If you need to test your own case designs this model is for you. The shape, size, buttons, speaker holes, USB port and camera module are within spec. Some assembly is required, as well as adhesive and a couple of neodymium magnets. Enjoy Assembly 1. Prepare the model by removing the support material from the frames and if using the model with separate buttons, make sure there are no defeats or burrs 2. Begin by bringing the two frames together in the open position fit the hinge as shown, insert one side then slightly flex the hinge to fit the other side, be take care and don't close it just yet. 3. Dry fit the folding screen before to ensure the locating slots fit together. Insert the magnets and apply some adhesive avoiding the hinge area. Grab the folding screen and starting at one corner find the slot and press it in working your way round then close tight 4. Use adhesive to bond the front screen and back panel to the frame. Make sure the front screen is bonded to the frame with the USB port 5. Apply a little adhesive to the apple logo and flash part. The camera modules are press fitted, Insert the ring then the camera and lens, note there is a small lip on the camera rings. 6. Lastly fit the buttons (If you choose that print profile) and you are good to go. Note the buttons are press fit. Please consider the print profile without the separated buttons if this is intended for a small child. Printer: P1S Supports: Enabled, Manual Supports Build Plate: Smooth PEI Plate No. Build Plates: 6 Nozzle 0.4mm Layer Height: 0.1mm Material: Bambu PLA Supports Additional Glue Magnets Ensure you have a clean build plate and that you're using the correct filament profile for your filament, as an incorrect flow rate can cause part not to fit correctly If you'd like to be notified when I upload new models please follow moss3d ____________________________________________________________ RECENTLY ADDED
