Modular Full Scale Wardrobe

Designer

think_3d

Designer relation

Followed

Kategori

Household

Licens

Standard Digital File License

$ ↺

Se platformens konkrete vilkår.

Designer commercial

MakerWorld Commercial License

Først set

2026-09-14 19:51

Sidst set

2026-09-14 19:51

Tags

wardrope bedroom cloth big kleiderschrank

Beskrivelse

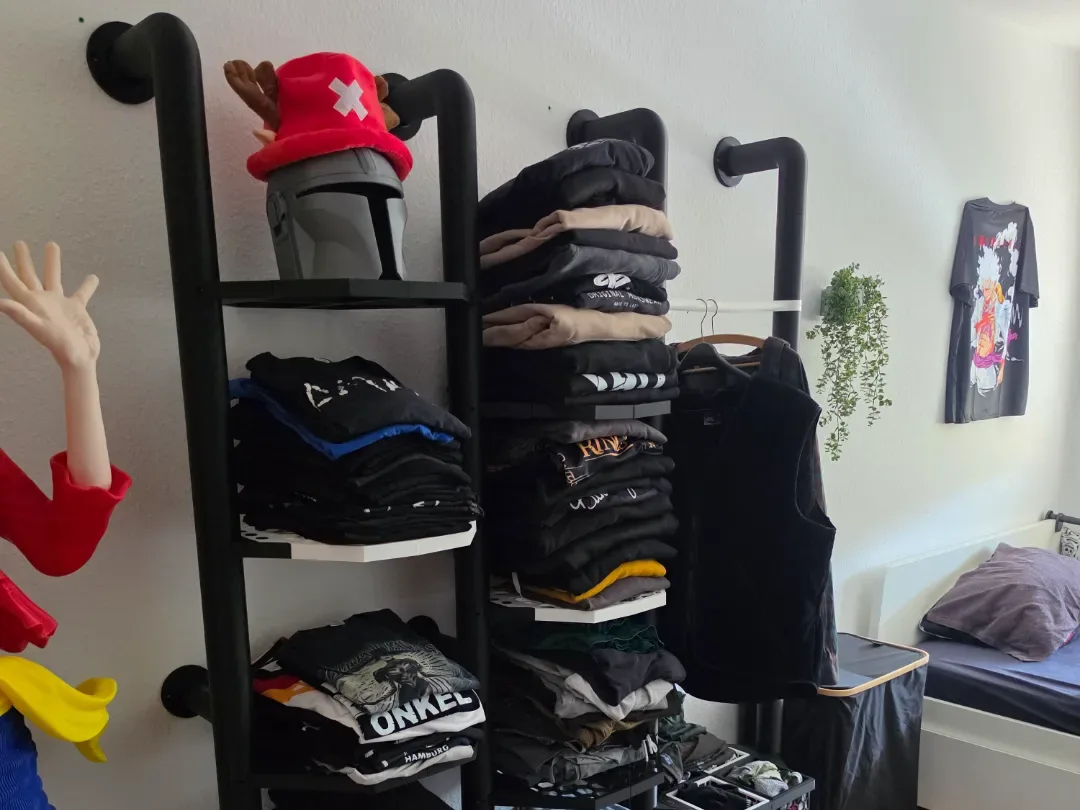

Modular Open Wardrobe – Fully Functional & Freely Expandable. A complete open modular wardrobe with a modern design no doors and no side walls. All parts are designed to print easily on 256 mm build plates and can then be assembled as shown in the pictures.Included parts: Feet Middle wall anchors Top wall anchors (finish pieces) Intermediate pieces X-connectors Blind rings in 2 variations (2-part with brass inserts or 1-part without) Shelves (each consisting of 4 parts that are simply slid together after printing) including matching holders Clothes hanging rod Basket(s) for small items Parts needed for the standard build shown in the pictures: 4× Feet 4× Middle wall anchors 4× Top wall anchors 28× Intermediate pieces 36× X-connectors 8× Shelves 12× Shelf holders 1× Basket holder 4× Baskets 1× Clothes hanging rod 16× Blind rings (either the 2-part version with brass inserts or the 1-part version without) For this standard build you will need at least 40× M4 heat-set inserts and matching M4 screws approx. 10–15 mm long (more if you choose the 2-part blind rings). General assembly overview: The X-connectors are always used to join the main structural parts. Start at the bottom with a foot, then add an X-connector, an intermediate piece, another X-connector, and so on. The middle wall anchors are inserted in the same way as intermediate pieces, and the top wall anchors finish each upright. Screw the anchors into the wall to create the main vertical pillars. Once the pillars are in place you can install the shelves as desired: Attach the shelf holders to the main pillars using two heat-set inserts and screws each. Slide the assembled shelves into the holders and secure them with pins. Basket holders are mounted the same way as the shelf holders – simply insert the baskets afterwards. The clothes hanging rod is attached in the same manner.Thanks to the modular system you can freely expand, reconfigure or customize the wardrobe to fit your space and needs. Whether you want it narrower, wider, taller or with extra shelves, rods and baskets – everything stays flexible and straightforward to build.Perfect for anyone looking for a modern, open and fully configurable wardrobe that is easy to print and assemble.
