Light Material Bucket for BURNIE222 Vulpa L102 Wheel Loader

Designer

TheDIYGuy999

Designer relation

Ingen

Kategori

RC Vehicles

Licens

Ukendt Ikke mappet til Scout licenskatalog

Designer commercial

None

Først set

2026-09-14 19:51

Sidst set

2026-09-18 08:55

Tags

Scale model volvo

Beskrivelse

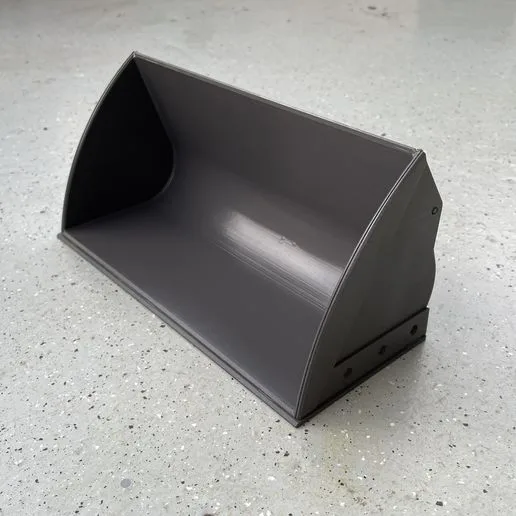

This bucket was designed from scratch by me and is fully compatible with the quick coupler of the Volvo L120H wheel loader from Lasse Anhanger aka burnie222rc: https://cults3d.com/en/3d-model/home/1-14-loader-vulpa-l102 Note, that the wheel loader itself is not included! It is suitable for low density materials and for grading. It is very strong and uses an integrated quick coupler. The burnie222 QuickCoupler Mounting Frame is not required. This makes the mechanism very compact and increases the bucket volume, because there is no indentation required. The locking pieces are held in place by a 3mm rod, which is pushed through the entire bucket and some drops of super glue. The bottom locking piece is attached by 2 2x8mm self tapping socked head screws (the same as on the burnie222 parts list). The side and bottom pieces are attached with super glue as well. I used original Volvo gray spray paint for it.
