Keychain Whistle

Designer

jll8

Designer relation

Ingen

Kategori

Audio

Licens

Creative Commons Attribution Creative Commons - Attribution

$ ↺

Attribution påkrævet.

Designer commercial

None

Først set

2026-09-14 19:50

Sidst set

2026-09-15 16:20

Tags

keychain whistle

Beskrivelse

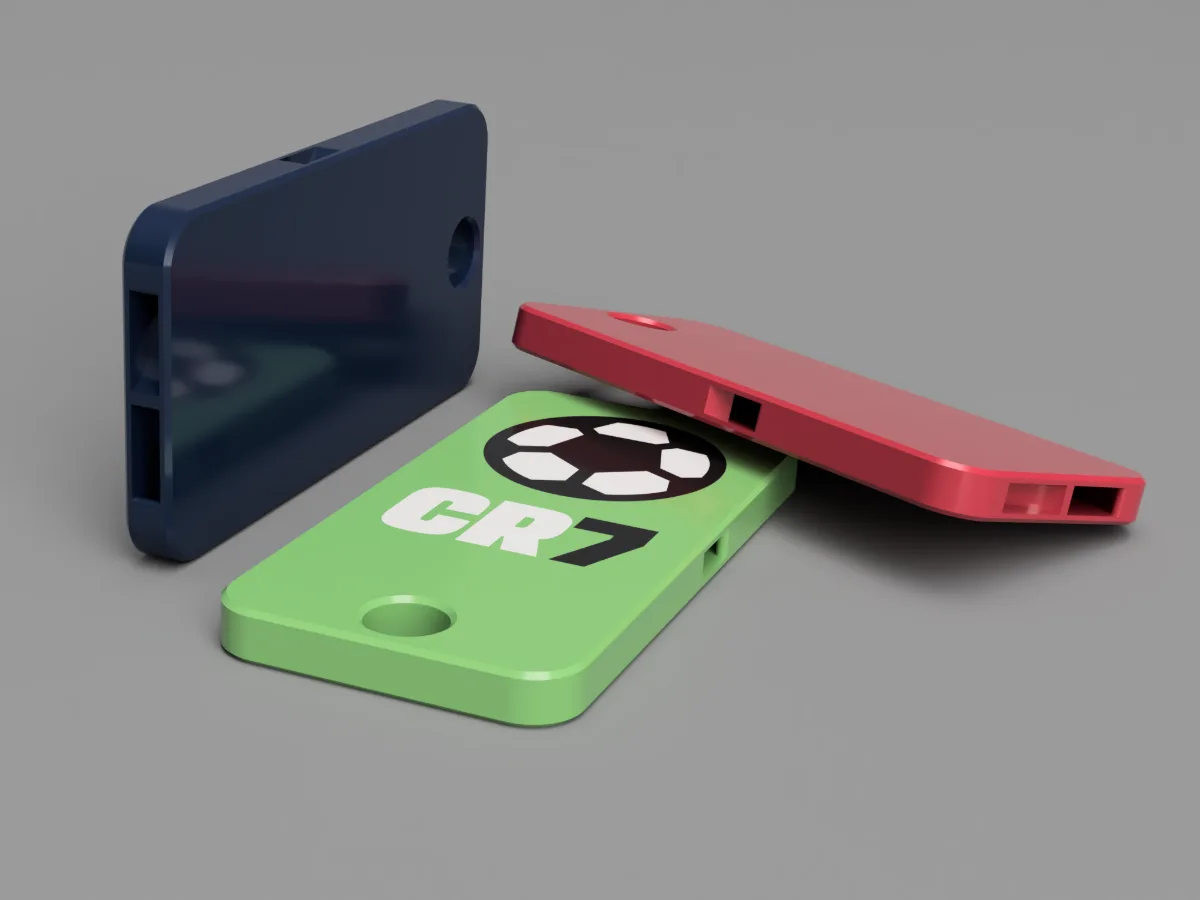

A small, flat whistle designed to attach to your keys – a great addition to a backpack or bag, or a handy safety accessory for hikes, school, or biking trips. Dimensions Size: 54 × 27 × 4 mm Corner radius: R4 Keyring hole: Ø6 mm Weight: a few grams depending on material (thin-walled, hollow model) The whistle is designed as a thin hollow part with an internal channel that works on the principle of a classic "pea-less" whistle – just blow into the opening and the sound is produced by resonance in the narrow internal channel running along the length of the body. Material and printing The model has been dialed in and tested on Bambu Lab H2D and H2C printers, using: Prusament PETG Prusament PLA Due to the thin walls and internal channels (bridges), the standard slicer settings need slight adjustments so the bridges don't sag and the whistle actually whistles after printing. Recommended print settings Parameter Value Layer height 0.20 mm Nozzle 0.40 mm Wall generator Arachne Bridge flow 1.4 Bridge speed 10 mm/s Bridge direction 180° (bridges print along the length of the whistle) Top layers 4 Bottom layers 4 Infill 15% gyroid Tip for printing with custom text/logo If you add your own image or text via SVG directly in the slicer, I recommend increasing the first layer flow to 1.2 – the exact value may vary depending on your printer, so it's worth testing on a small sample first. For the best result, print the part with the graphic facing down toward the build plate (i.e., upside down) – the surface touching the bed tends to come out smoother, giving sharper detail on the image/text.
