ESP32 Plane RADAR with Early Warning Aircraft Announcements
- Designer
- nias123
- Designer relation
- Ingen
- Kategori
- Gadgets
- Licens
-
Creative Commons Attribution ShareAlike Creative Commons - Attribution - Share AlikeAttribution påkrævet; afledte værker skal deles under kompatibel ShareAlike-licens.
- Designer commercial
- None
- Først set
- 2026-09-14 19:50
- Sidst set
- 2026-09-18 08:20
- Tags
Beskrivelse

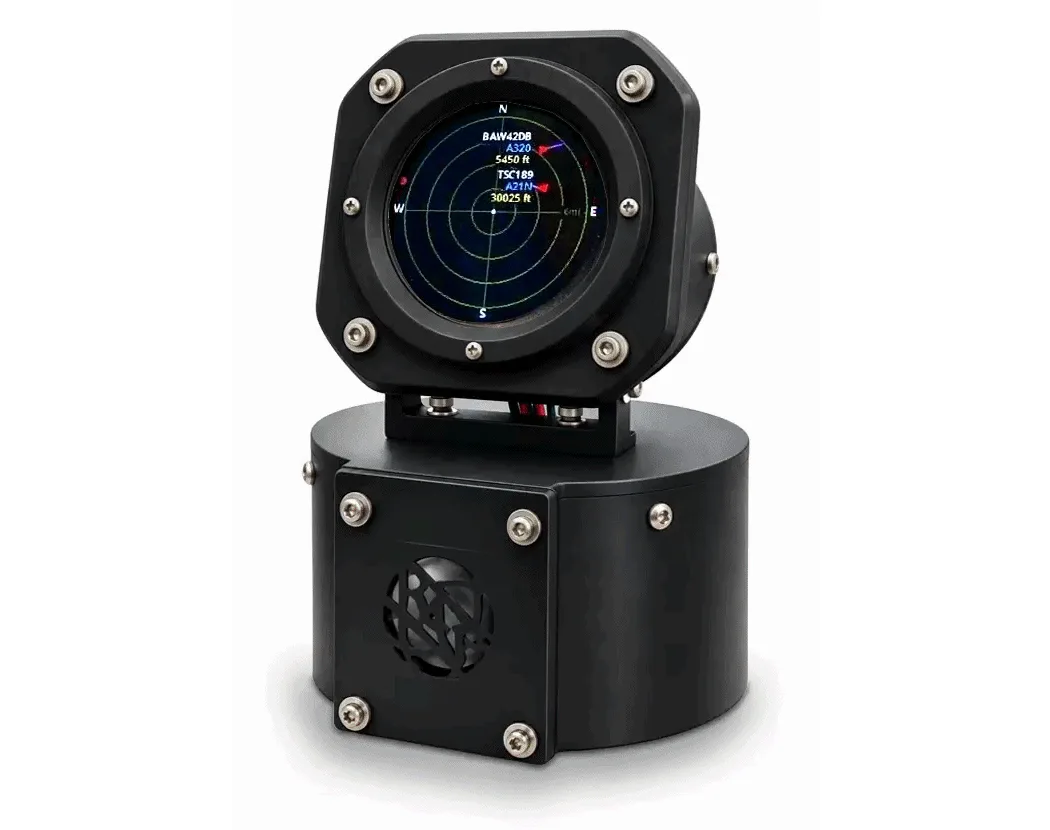

An ESP32 based aviation RADAR with a 1.28" Round 240x240 TFT display. Mounted in a 3D printed aviation style case, the display shows real time air traffic data. Spoken warnings from a mini speaker built into the base are announced when aircraft on a list of a set types are detected. This list of aircraft types can be customized to include any "special" aircraft types you are looking out for. The RADAR displays can be set to any location in the country and distances of 3miles to 16miles from that location. Powered from a standard USB power supply the ESP32 S3 version draws around 120mA while the ESP32 C3 version uses around 100mA. Full build details here https://www.brettoliver.org.uk/Aviator_Clock/aircraft_radar.htm The radar display is based on an original design by matixovi. https://github.com/MatixYo/ESP32-Plane-Radar/releases
