ZK-1002T Amplifier Side Clip Cases / Edge Protectors (Honeycomb Infill Design)

Designer

dalbyte

Designer relation

Ingen

Kategori

DIY

Licens

Creative Commons Attribution ShareAlike Creative Commons - Attribution - Share Alike

$ ↺ SA

Attribution påkrævet; afledte værker skal deles under kompatibel ShareAlike-licens.

Designer commercial

None

Først set

2026-09-14 19:50

Sidst set

2026-09-15 16:20

Tags

amplifier case cover enclosure hifi wuzhi WUZHI AMPLIFIER zk-1002t zk1002t

Beskrivelse

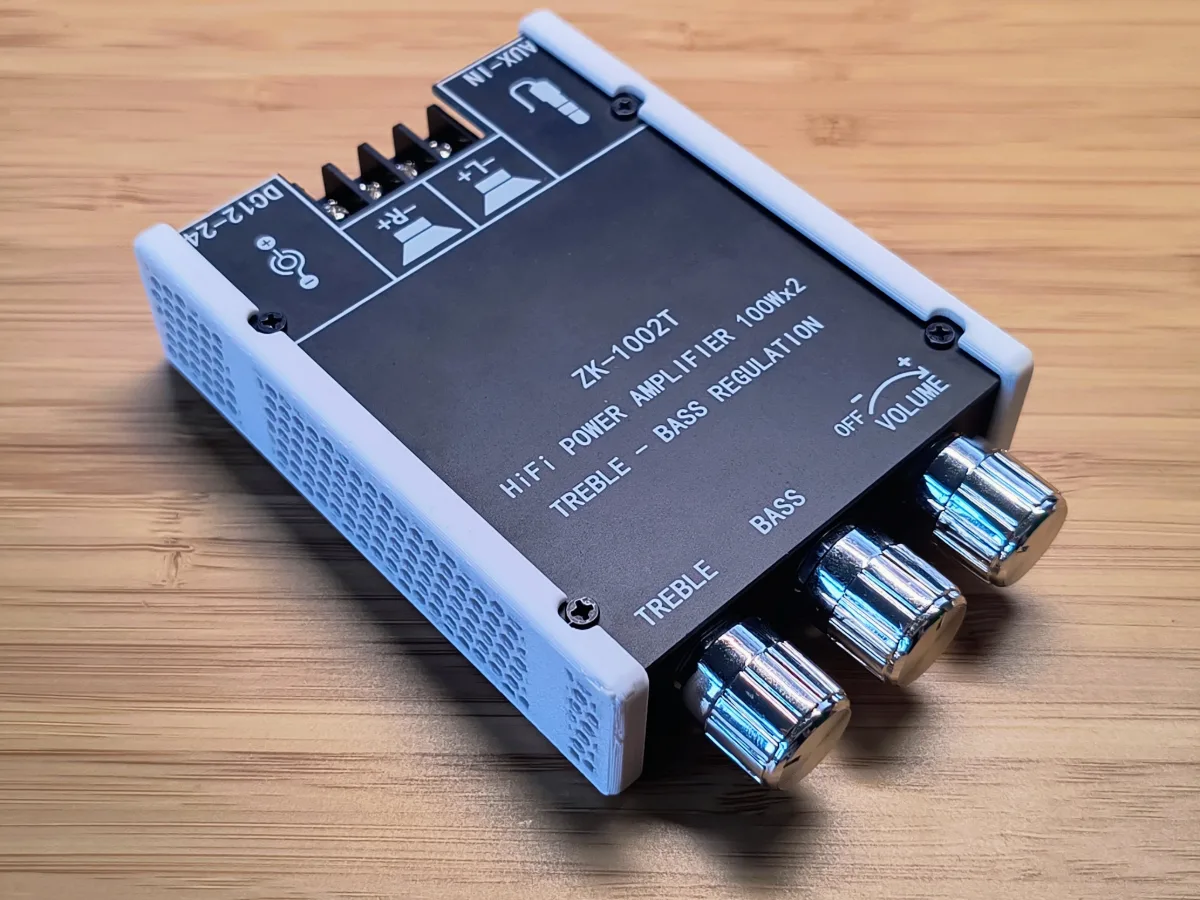

Summary A practical snap-on side cover design for the popular ZK-1002T Bluetooth amplifier board. It clips directly onto the original brass standoffs from the outside, eliminating the sharp acrylic sandwich edges and giving the amplifier a clean, finished look with custom ventilation. Features & Design Details Clean Aesthetics & Safety: Covers the raw sandwich construction to eliminate sharp edges while keeping the original top and bottom plates intact.Smart Component Clearance: The internal mounting clips are intentionally offset (non-centered) to avoid colliding with capacitors, inductors, and other components on the PCB.Custom Ventilation: The mesh pattern on the sides is generated via slicer modifiers (0 top/bottom layers), providing a unique look and optimal airflow.Material: Designed and tested in PETG for optimal clip flexibility and durability. Files Included zk1002t_v1.3mf: Pre-configured slicer project file containing the model with pre-aligned modifier objects for filament setups.b.3mf: Modifier file for the slicer to create the honeycomb/mesh structure. Text was written by AI, design made by human Print & Assembly Instructions Mirroring required: Print one side, then mirror the object in your slicer to print the opposite side.Tolerance Options: Includes standard fit (a) and a extended tolerance version (a2 with +0.2 mm length) depending on your printer calibration.Assembly: Assemble the ZK-1002T using its standard screws and standoffs as normal. Push the printed side covers onto the exposed brass standoffs from the outside until they snap securely into place.
