Fusion 360 – 3D Sketch & Sweep Practice | Tubular Intake

Designer

Iker Libano | KNIN Custom

Designer relation

Ingen

Kategori

Learning > Other 3D Objects for Learning

Licens

Creative Commons CC0 Creative Commons — Public Domain

$ ↺

Ingen attribution påkrævet.

Designer commercial

None

Først set

2026-09-14 19:50

Sidst set

2026-09-16 08:10

Tags

education fusion360 intake cad tutorial practice sweep

Beskrivelse

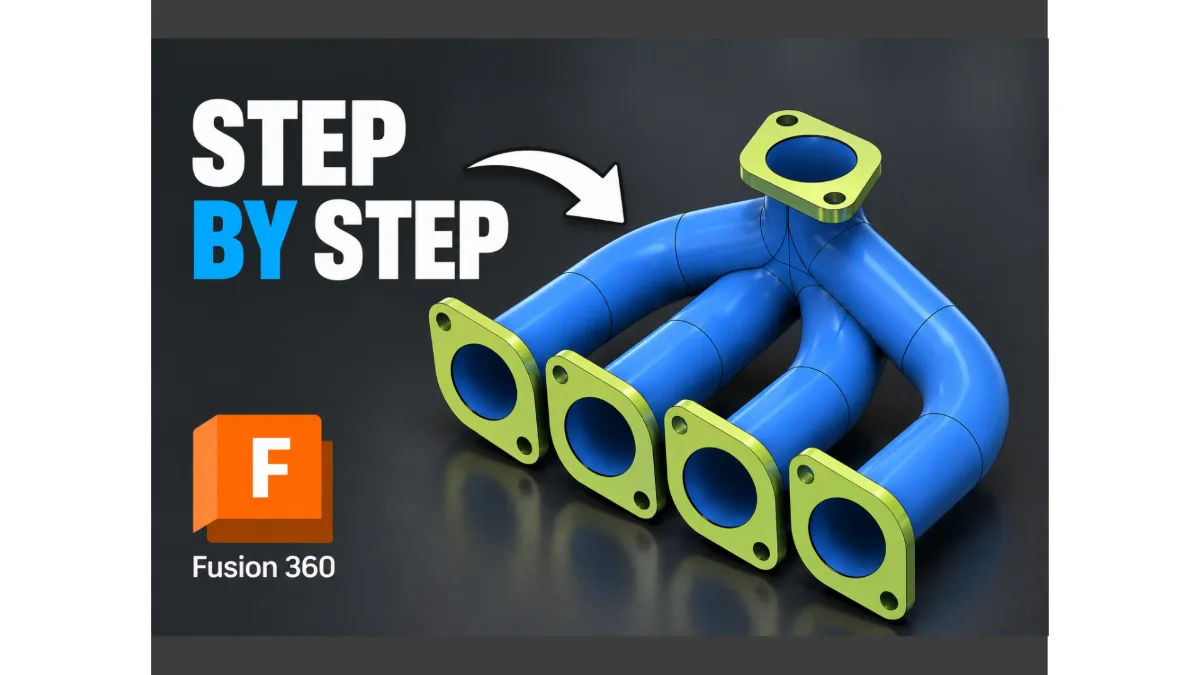

Fusion 360 – 3D Sketch & Sweep Practice This project contains the reference files used in my Fusion 360 tutorial about creating 3D sketches and tubular geometries . Watch the complete Fusion 360 tutorial here: The exercise is designed to help you practice how to create and control 3D Sketches , build curved paths in three dimensions and turn them into tubular geometry using the Sweep tool. During the tutorial, you will learn how to: - Create and understand 3D Sketches in Fusion 360 - Draw paths in different planes and directions - Add dimensions and radii to 3D paths - Create tubes using Sweep - Mirror and combine multiple bodies - Use Shell to create hollow, connected tubes - Create cleaner internal transitions using rounded shell options The green reference geometry is already included in the project. Your goal is to use it as the starting and ending points for the tubes and model the blue tubular geometry yourself , following the tutorial. This is primarily an educational CAD exercise , created so you can follow along with the video and practice the workflow yourself. If you're learning Fusion 360, I recommend trying to build the geometry yourself while following the video rather than simply inspecting the finished model. Designed by KNINcustom for educational use.
