FLP-11 Onager- Absurd Long Draw Foam Blaster

Designer

shoelesshistorian

Designer relation

Ingen

Kategori

Toys & Games > Outdoor Toys

Licens

Creative Commons Attribution ShareAlike Creative Commons — Attribution — Share Alike

$ ↺ SA

Attribution påkrævet; afledte værker skal deles under kompatibel ShareAlike-licens.

Designer commercial

None

Først set

2026-09-14 19:50

Sidst set

2026-09-15 00:10

Tags

nerf nerfgun nerfdart nerfmod nerfblaster nerfhomemade foamblaster nerfmodding nerfmods nerfblastermods foamdartblaster foamdartgun foamflinging foamsoft

Beskrivelse

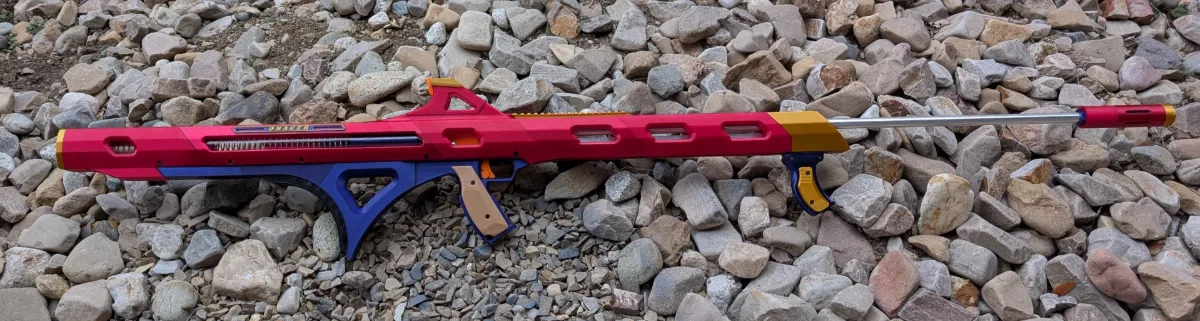

Onager is a 34cm draw foam dart blaster. It's pump action and is carried over the shoulder; it is fed from a top mounted Talon magazine. Using two K25 springs end to end, it can achieve close to 400 fps. The actual FPS ceiling of this blaster is untested, because optimal barrelling is very hard to achieve... this is because you're probably going to need about 4 feet of barrel. This is probably the longest springer to exist. This is probably the longest draw springer to exist. It's also probably the easiest prime you'll ever feel for its power, and due to the over the shoulder layout, elevation is super easy and it functions basically as artillery. Availability: BearsWares has kits here: https://bearswares.shop/products/onager-by-shoelesshistorian Print Settings: 4 walls, 20 percent infill for primary and secondary colors. All walls, 100 percent infill for everything orange, except for muzzle at 4/20. Print the ram and buttpad out of TPU; all walls 100 percent infill for the ram, 2 walls 10 percent infill for the buttpad. Build Guide https://imgur.com/a/onager-build-guide-6-20-26-Rawhjj2 Note you will need a long hex wrench for the muzzle screws. Materials required: - 4x M4 threaded rod, 750mm - Threaded Rod - M4 x 250 - 55cm prime bar, Rush drill pattern - Linear Rod - 8 x 450mm - 2x Linear bearings - 8mm bore 15mm OD 24mm length - 37cm plunger tube - 2x K25 springs - 3x O Rings - 123 - 2x O Rings - 016 - 2x O Rings - 012 - 2x small weak springs for mag release and catch - 16x Hex Nuts - M4 - 3x Lock screws - 10-32 x 5/16 - 3x Hex Nut - 10-32 - 3x Ball Detent - 6x7mm - 40x M3 Screws - 8mm - 7x M3 Screws - 6mm - 4x M3 Screws - 25mm - 2x M3 Screws - 16mm - 1x M3 Screws - 10mm - 7x Hex Nut - M3 - 1x 16mm OD barrel... 4 feet 13mm ID is a good place to start. - Optionally, 120mm cut of 16mm barrel material for a spring guide. There's a printed version in these files. Acknowledgements: Once again, huge thanks to Bear for handling kits, helping with beta, prodding me along here. Frozenfade, the greatest hype man and teammate anyone could ask for. Bird, Poppy, Silvernutter, Albe, Senrath... hopefully I didn't forget anyone, but it's been a great group of beta testers. Evan, thanks for the spring coupler help! Shout out to Marko, who was the first victim of a sustained Onager barrage at a USFT game.
