Case for Heltek V3 with 18650 or 21700 battery

Designer

Fox_exe

Designer relation

Ingen

Kategori

Other

Licens

Creative Commons Attribution NonCommercial ShareAlike Creative Commons - Attribution - Non-Commercial - Share Alike

$ ↺ SA

Attribution påkrævet; kommerciel brug er ikke tilladt; ShareAlike gælder for afledte værker.

Designer commercial

None

Først set

2026-07-24 20:41

Sidst set

2026-07-24 20:41

Tags

21700 esp32 esp32-s3 Heltek V3 LoRa lora meshcore lora meshtastic meshcore meshcore case meshcore enclosure meshcore meshtastic heltec Meshtastic Meshtastic case meshtastic enclosure meshtastic heltec

Beskrivelse

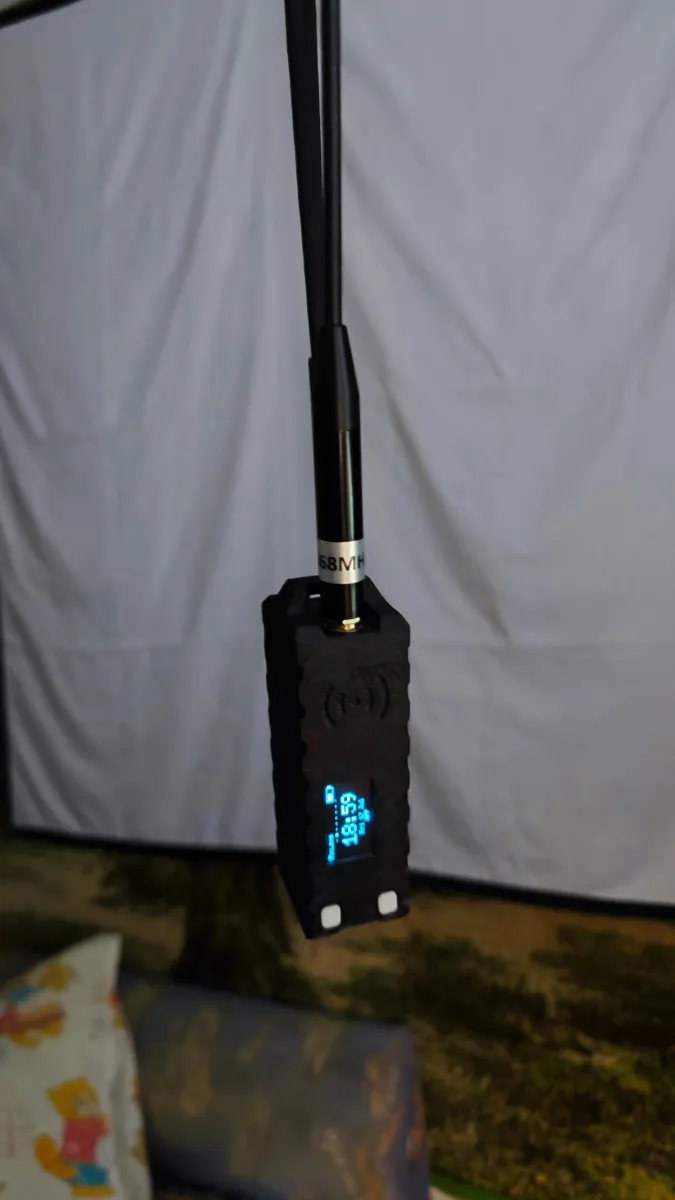

Case for Heltek V3 Fits Heltec V3 with soldered pins ! Requires: 4x M2x10mm screws and 4x M2 brass heat-set inserts. Battery: Designed for a 21700 battery. For an 18650 battery, you must add a soft spacer (gasket). BMS Required: You must use a battery protection board (BMS). Heltec does not have deep discharge protection and will drain the battery below 2V, damaging it. Buttons: Use transparent plastic for the buttons so the LED light can shine through. Charging: The built-in Heltec charge current is only 150–200mA. The battery will charge very slowly. Power Consumption: ESP32-S3: ~120mA (idle) or ~30–50mA with optimized firmware. SX1262 (LoRa): ~5mA (idle/RX) and up to 140mA @ 22dBm during packet transmission (lasts less than a second). Future Upgrade: A future case version may include an external charging board with a BMS (like a TP4056 module). There is already some free space inside for this.
