Logical Wall Bin – Auto-Opening Wall & Cabinet-Door Trash Bin

Designer

logicalplanet

Designer relation

Ingen

Kategori

Home & Garden/All

Licens

da47501f-058b-4e56-834b-787e4a728404/LP NC License 20241029.pdf Ikke mappet til Scout licenskatalog

Designer commercial

Other

Først set

2026-07-24 16:30

Sidst set

2026-07-24 20:41

Tags

wall bin trash bin garbage bin waste bin cabinet door bin hanging bin kitchen organization garage organization barbecue patio RV space saving functional print home organization removable bin auto opening

Beskrivelse

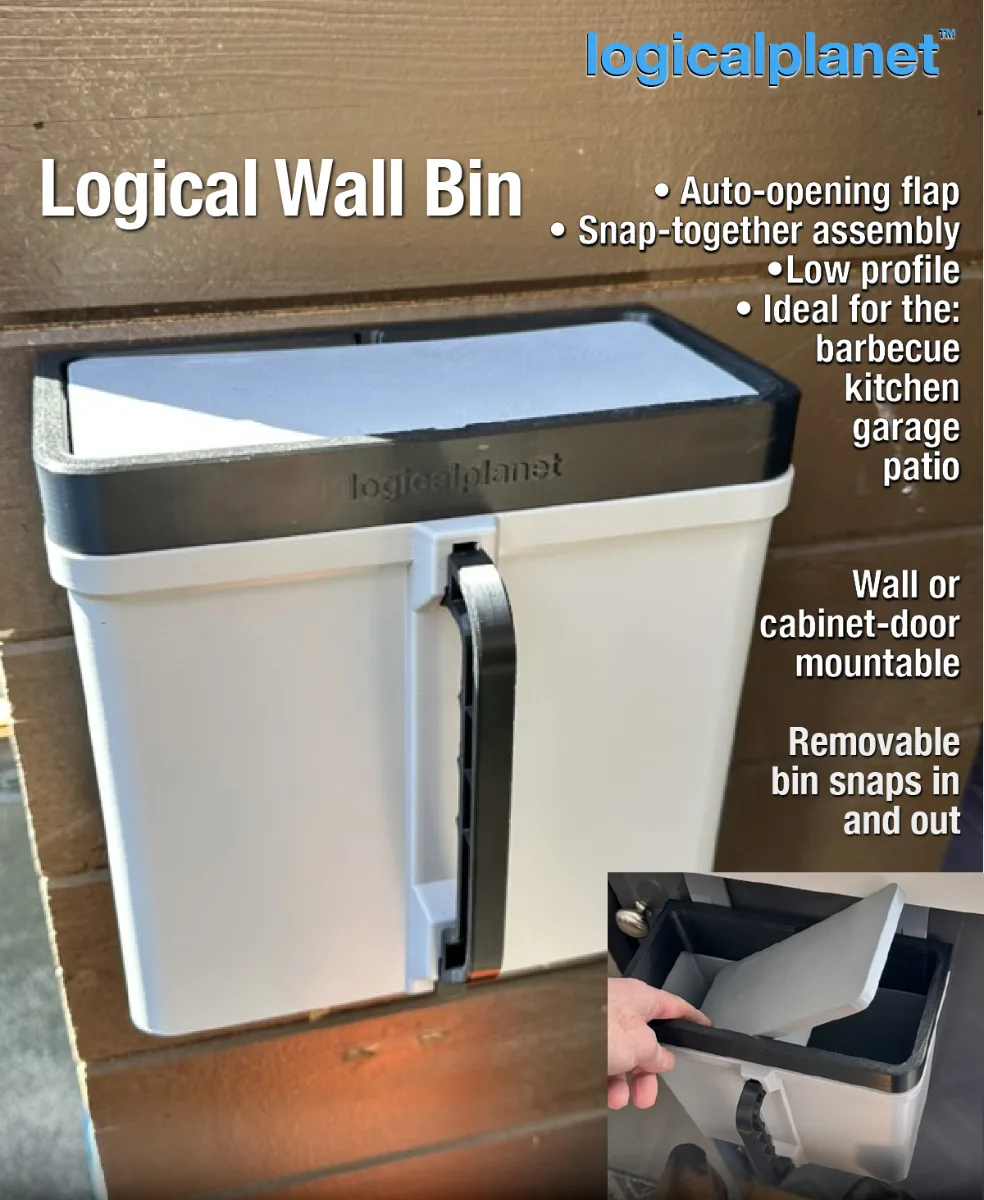

**Logical Wall Bin** A compact, auto-opening trash bin that mounts to a wall or hangs directly from a cabinet door. No lid to touch and no bin taking up floor space. Drop waste onto the flap and it opens automatically under the weight, then returns to a closed position when the waste falls into the bin. The removable bin snaps in and out of the frame in seconds, making it easy to carry and empty. Ideal for the barbecue, kitchen, garage, workshop, patio, RV or anywhere floor space is limited. **Features** - Auto-opening flap opens under the weight of waste and closes automatically after use - Magnetic stabilization holds the flap closed when idle and helps prevent wind, birds and large insects from opening it - Removable snap-in bin releases quickly for carrying and emptying - Two mounting options: mount it directly to a wall or hang it over a cabinet door - Three cabinet-door hanger sizes included for different door thicknesses - Large snap-on handle makes carrying and emptying easier - Compact, low-profile design keeps waste conveniently off the floor - Snap-together assembly with no separate hinges or springs - Reversible flap can be rotated 180 degrees to disable the magnetic hold when desired **Dimensions and Capacity** - Width: 248 mm (9.8 in.) - Depth: 130 mm (5.1 in.) - Height: 230 mm (9.1 in.) - Capacity: approximately 4.5 L (1.2 US gal) Three cabinet-door hanger sizes are included: - 19.1 mm (0.75 in.) - 25.4 mm (1.00 in.) - 31.8 mm (1.25 in.) **Additional Parts Required** - Four 6 x 3 mm round magnets - Suitable fasteners if using the wall mount **Print Notes** ASA is recommended for outdoor use and greater heat and weather resistance. PLA or PETG can be used indoors. This is a functional design, so stronger-than-default slicer settings are recommended. I used four walls, five top and bottom layers, and 40% cubic infill. Use the Arachne wall generator or equivalent if available. If your slicer uses a conventional wall generator, enable its thin-wall detection feature. No slicer-generated supports, brim or raft should be required when the parts are printed in the supplied orientations. The cabinet-door hangers include built-in breakaway supports. Remove the sections identified in the included guide before use. **Important Magnet Information** Magnet polarity matters. Check the polarity before fully pressing the magnets into place. The opposing magnets must attract each other. The magnet positions are offset from front to back. Install the flap in the orientation that provides the opening force you prefer, or rotate it 180 degrees to disable the magnetic hold. The magnets are designed to press-fit into place, but a small amount of adhesive can be used if necessary. Please review the included assembly and installation illustrations before assembling the bin. **Related Links** Find LogicalPlanet on social media and other platforms: https://linktr.ee/logicalplanet Visit LogicalPlanet for more designs and information: https://www.logicalplanet.com/ **Revisions and Updates** I occasionally update and improve my designs. Any changes will be documented here, so check back periodically for the latest revision notes, especially if you are experiencing an issue with the model. If you encounter a problem, have a suggestion or would like to request a revision, please email: [email protected]
