RC Jet Boat

Designer

PiratDuck

Designer relation

Ingen

Kategori

R/C Vehicles

Licens

Creative Commons Attribution ShareAlike Creative Commons - Attribution - Share Alike

$ ↺ SA

Attribution påkrævet; afledte værker skal deles under kompatibel ShareAlike-licens.

Designer commercial

None

Først set

2026-07-24 11:54

Sidst set

2026-07-24 20:41

Tags

elegant design Jet Boat jet drive M-Jet no support radio controlled RC Boat snapmaker snapmaker artisan Water Jet Drive

Beskrivelse

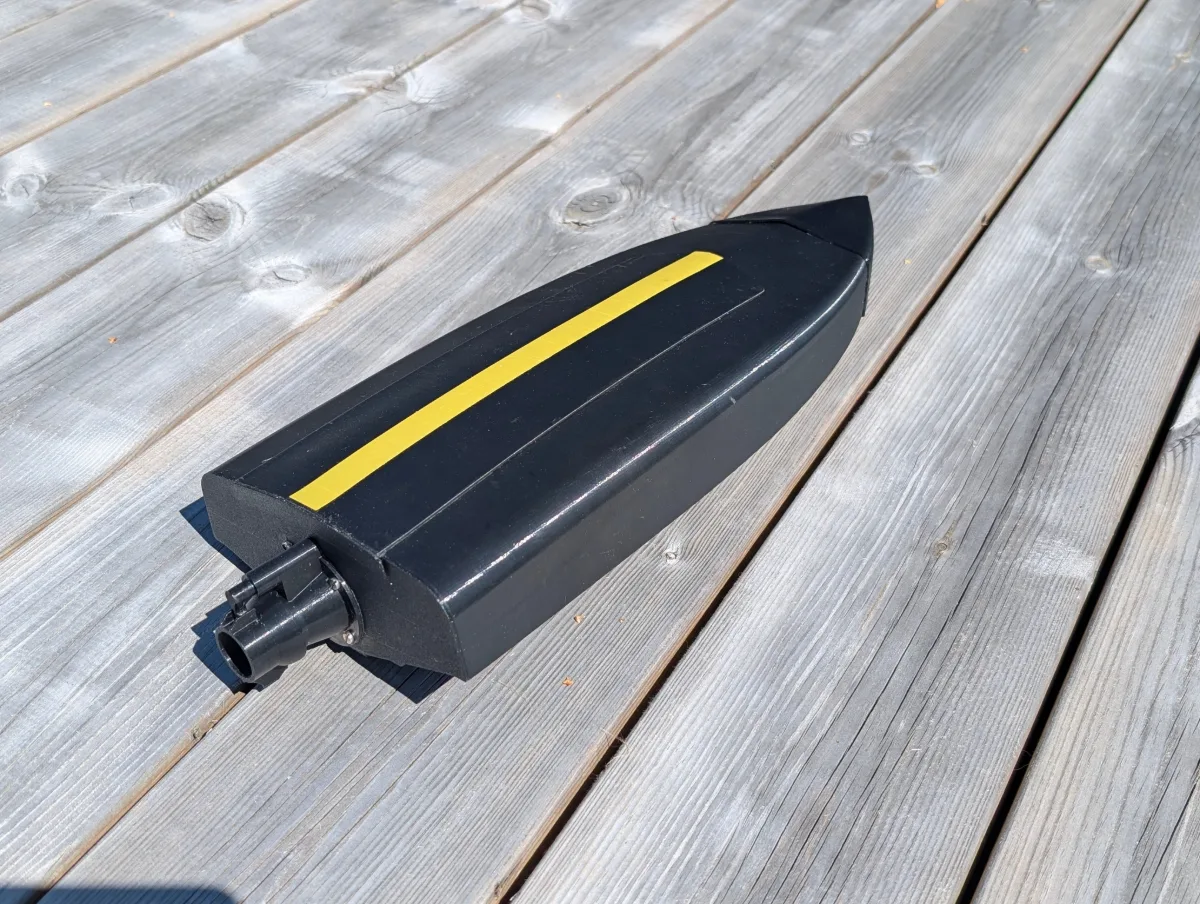

RC Jet Boat My own take of an RC jet boat. Heavily remixed the hull of: https://www.thingiverse.com/thing:930577 And AI-generated impeller, which turned out to be almost 2x faster than my own design. Short Clip of it: https://www.youtube.com/watch?v=RP5WTFzeF3E https://www.youtube.com/shorts/Fqduyz7H2Mk Material used Similar parts should work as well. 1x 3660 2200KV brushless motor 1x 60A ESC 1x 3S 2200mAh LiPo (I also use a 2S 2200mAh a lot since 3S is harder to handle.) 1x receiver 1x SG90 servo (22.7 x 12.2 x 27 mm) 1x 3mm x 100mm steel axle 2x 3x4x10mm stainless steel bearings 2x 3mm x 4mm grub screws 1x MultiBond glue 8x M3 screws (4 for the motor mount, 4 for the jet nozzle) 2x M2.5 screws (servo) Print settings Printed on a Snapmaker Artisan. If your printer can't fit the full hull, print the top section with 0.9 mm larger X/Y dimensions. Overlap the two hull sections by about 20 mm and glue them together. PETG for everything except the impeller, which was printed in PLA+. I wasn't able to get smooth overhangs with PETG. No supports for anything. Vase mode (0.45mm line width) AxelSleave Battery_Box Esc_Box WaterCoolingConnectors Vase mode (0.9mm line width) Hull HullTop (0mm tolerance, so used -0.4mm Horizontal Expansion) Optional These are only there as extra security in case water gets into the hull. Battery_Box Esc_Battery_Holder Esc_Box If you don't want water cooling, print WaterCoolingConnectors as Solid with 25% height and glue them in as plugs. Instructions Eh, you'll figure it out. :D Just file two flat spots on the axle for the grub screws to grab onto for the impeller. Payment Payment is taken in ideas for improvements, or even better, upload a remix with your improvements.
