spring hex bit holder . allways tight perfekt fit

Designer

Tannenbaum18

Designer relation

Ingen

Kategori

Tool Holders & Boxes

Licens

Creative Commons CC0 Creative Commons - Public Domain Dedication

$ ↺

Ingen attribution påkrævet.

Designer commercial

None

Først set

2026-07-24 11:54

Sidst set

2026-07-24 20:41

Tags

gridfinity hex bit hex bit holder hex bit organizer hex bit storage spring loaded

Beskrivelse

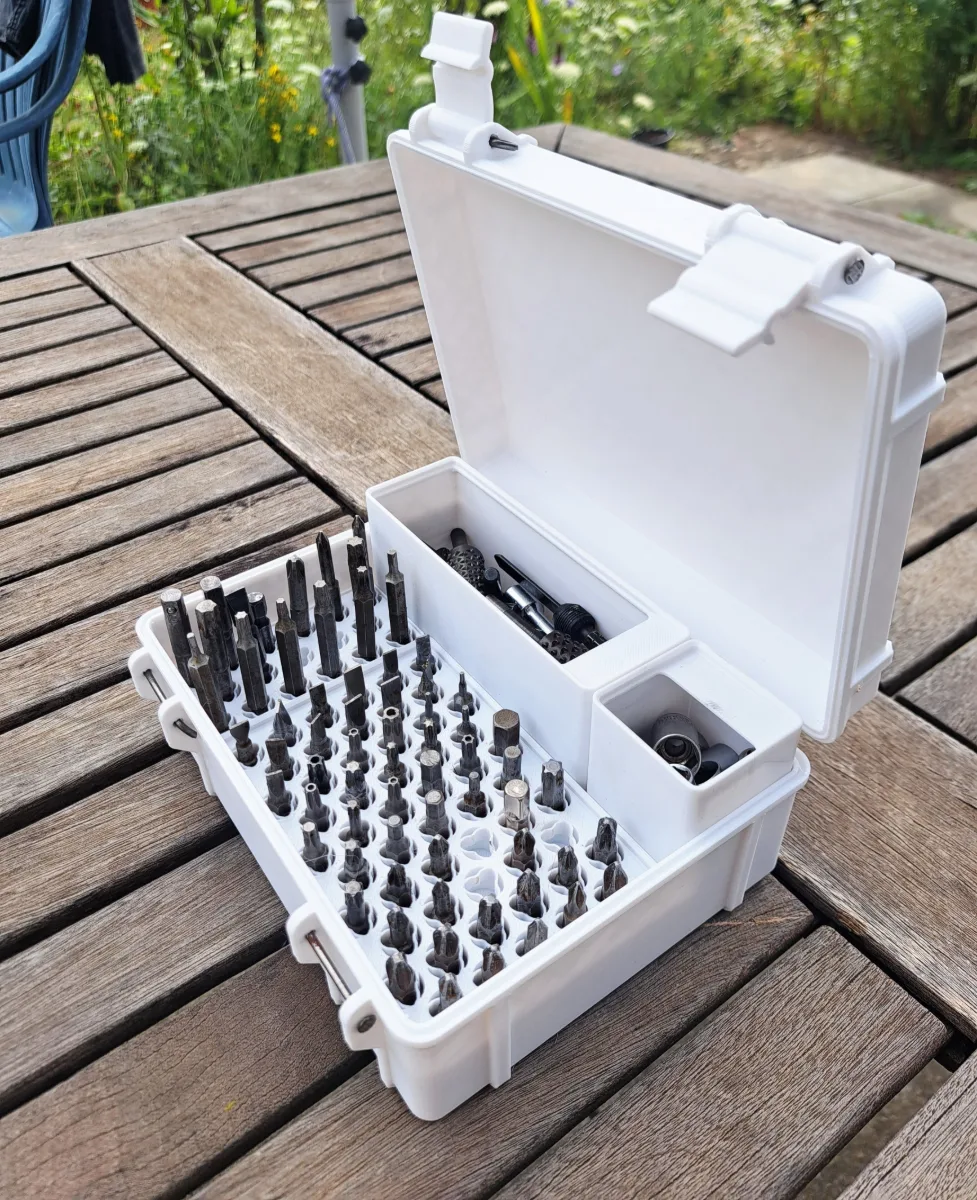

A hex bit holder that holds the bits even upside down, but not too tight to pull them out. Gridfinity compatible because I like it. Works with an integrated compliant spring, so it should be more stable with different printers, settings, and filaments. Tested with 0.2 layer height, 0.4 walls, and RANDOM SEAMS (so they don't align in one of the thin springs and create a gap). I used the https://www.printables.com/model/495142-rugged-gridfinity-box-parametric in combination with generated bins from https://gridfinity.perplexinglabs.com to get a box with everything I previously just had thrown into a metal box. Also includes an "only inner core" file that you can import into your design and just subtract to get a hole for a bit. The whole Fusion 360 file can be downloaded also, but it's messy and not well documented. Though, it should be easy to understand.
