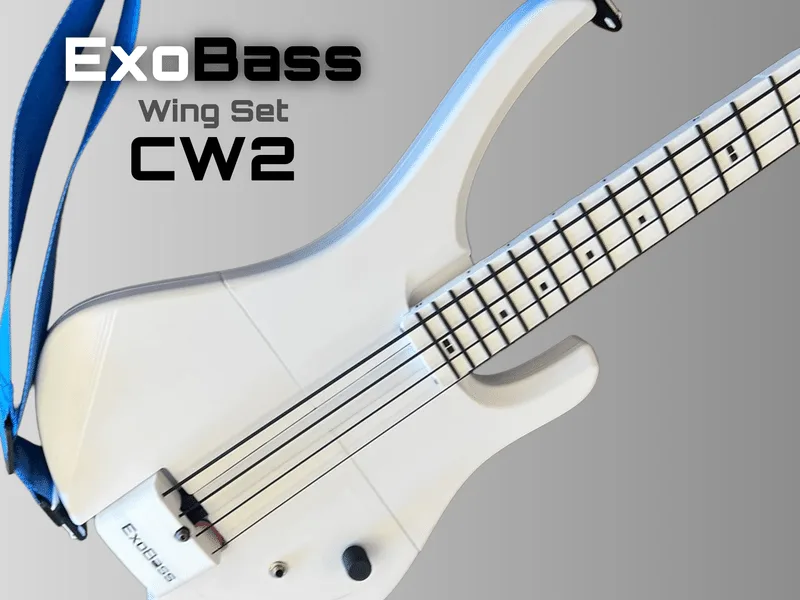

ExoBass - Wing Sets - CW2

Designer

Spikeon

Designer relation

Ingen

Kategori

Music

Licens

Creative Commons Attribution NonCommercial ShareAlike Creative Commons - Attribution - Non-Commercial - Share Alike

$ ↺ SA

Attribution påkrævet; kommerciel brug er ikke tilladt; ShareAlike gælder for afledte værker.

Designer commercial

None

Først set

2026-07-24 11:54

Sidst set

2026-07-24 16:20

Tags

bass cw2 diy exobass exoworks music standard

Beskrivelse

Part of the ExoBass project — full catalog, build planner, and assembly guides at https://exobass.com Plan Your Build & Get Hardware ExoBass can be confusing! Head over to our build planner to plan your entire build - it'll walk you through every available part and handle compatibility along the way, and it covers all ExoBass parts. It's also the best way to get hardware, since it lets you buy everything for a full build in one go, not just this part. You can find this specific part, ExoBass - Wing Sets - CW2 , on our site. Step 1: Heat set inserts Step 1a: Insert strap connector heat set inserts Using a soldering iron, insert the Strap Connector Heat Set Inserts. Step 1b: Insert pickup mount heat set inserts ℹ️ This is optional, if you don't want to use the Over String Pickup Mount or the Lace Ultra Thin Pickup you can skip this step. Step 2: Put together body pieces Printed parts come with built-in supports at a few overhangs — clip and clean these out before assembly, particularly around the truss rod access notch and the neck pickup route. Position the top pieces on top of the back pieces. Step 3: Screws Then screw it all together using the BT3x20 screws Step 4: Attach Core Step 4a: Position 2020 Step 4b: Insert T Nuts Step 4c: Attach body to T nuts with screws Step 5: Control Panel Step 6: Electronics Step 7: Close Control Panel Step 8: Strap Buttons Put together the Strap Mount assemblies (heat-set insert + Strap Button) at the top and bottom of the body before moving on. Heavy Metal Core builds: use the Strap Connector heat-set inserts you installed in Step 1a for these mounts. Step 8a: Install top Strap Button Step 8b: Instal bottom Strap Button Step 9: Install Pickup (Optional) Install Ultra Thin Lace Pickup Install Over String Pickup Mount Hardware DIY Kit You can order a DIY kit for your entire build from our build planner , the estimate for this part's kit is $8.68 plus shipping. Self Source If you want to order the parts yourself, here's a list. Estimated cost: $75.98. 12x Screw - Button Head - M5x10 12x Nut - Slide In - M5 2x Heat Set Insert - M3 - 4.8mm OD - 4.6mm L - Flanged 10x Screw - Flat Head - M3x10 10x Screw - Flat Head - M3x20 20x Heat Set Insert - M3 - 5mm OD - 4mm L 2x Strap Buttons 1x Jack - Output - Mono 1/4in
