SC 140 - 3D Printed RC Airplane (1400mm Wingspan / Custom FPV Cargo Plane)

Designer

Spike141

Designer relation

Ingen

Kategori

R/C Vehicles

Licens

Creative Commons Attribution ShareAlike Creative Commons - Attribution - Share Alike

$ ↺ SA

Attribution påkrævet; afledte værker skal deles under kompatibel ShareAlike-licens.

Designer commercial

None

Først set

2026-07-24 11:54

Sidst set

2026-07-24 20:41

Tags

3d printed plane aeroplane Fixed Wing fixed wing fpv fixed-wing fpv plane model aeroplane Talon UAV

Beskrivelse

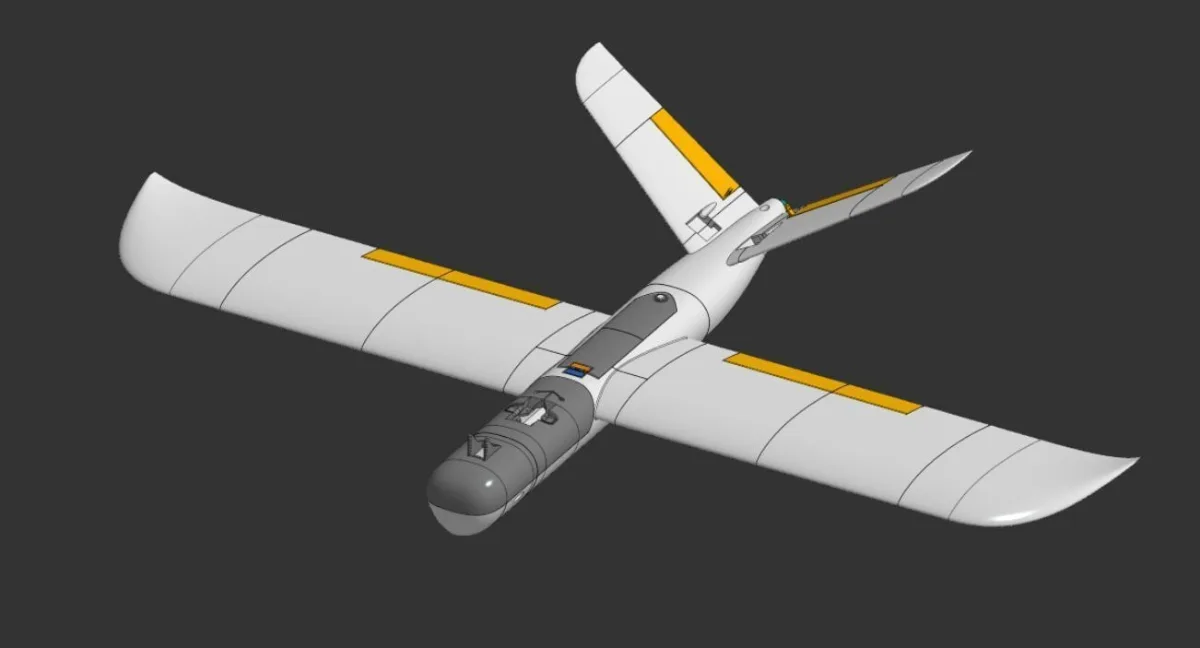

3D model description Overview The SC 140 is an upgraded, fully custom-engineered, 3D-printable RC airplane featuring an extended 1400mm wingspan. Designed for long-range flight, FPV setups, and stable aerodynamic performance, this aircraft combines a modular construction with optimized internal space for heavy electronics and payloads. Whether you are looking for a highly efficient FPV platform, a stable trainer, or a functional cargo and utility RC model, the SC 140 delivers excellent gliding performance, high lift, and a rewarding assembly experience. Technical Specifications Wingspan: 1400mm Length: 800mm Motor: Single motor setup Servos: 4x Micro servos Hardware & Reinforcement Rods Below is the required hardware list for reinforcement and assembly. You can use standard carbon fiber rods, or alternative budget-friendly items as specified: Main Wing Rod: 6mm x 1000mm (1x) Secondary Wing Rod: 6mm x 300mm (1x) - Carbon Rod (or BBQ skewer stick) Elevator Trim Rod: 3mm x 160mm (2x) - Carbon Rod (or BBQ skewer stick) Aileron Trim Rod: 3mm x 300mm (2x) - Carbon Rod (or BBQ skewer stick) Main Connections: 3mm x 30mm (4x) - Carbon Rod (or BBQ skewer stick) Alignment Connections: 2mm x 20mm (16x) - 3D Printing Filament (or toothpick) Features & Design Specs Modular Fuselage: Divided into functional interlocking sections (Front Fuselage, Rear Fuselage, Mid Wings) designed to fit standard 3D printer build plates. Removable Canopies: Features quick-access Front and Rear Canopy hatches with secure locking tabs for rapid battery swaps and effortless electronics maintenance. Aerodynamic Efficiency: Precision wing profiles with integrated control surfaces (Ailerons, Elevator, and Rudder) and built-in trim tabs for stable tracking. Generous Electronics Bay: Ample internal volume tailored to accommodate advanced flight controllers, GPS modules, high-power digital FPV air units, and large LiPo/Li-Ion battery configurations.
