INDX Rear Filament Sensor Mount Core One

Designer

Yurtle Ahern

Designer relation

Ingen

Kategori

3D Printers > Prusa Parts & Upgrades

Licens

Creative Commons Attribution NonCommercial ShareAlike Creative Commons — Attribution — Noncommercial — Share Alike

$ ↺ SA

Attribution påkrævet; kommerciel brug er ikke tilladt; ShareAlike gælder for afledte værker.

Designer commercial

None

Først set

2026-07-24 11:53

Sidst set

2026-07-24 12:20

Tags

prusa filament mount sensor rear runout indx

Beskrivelse

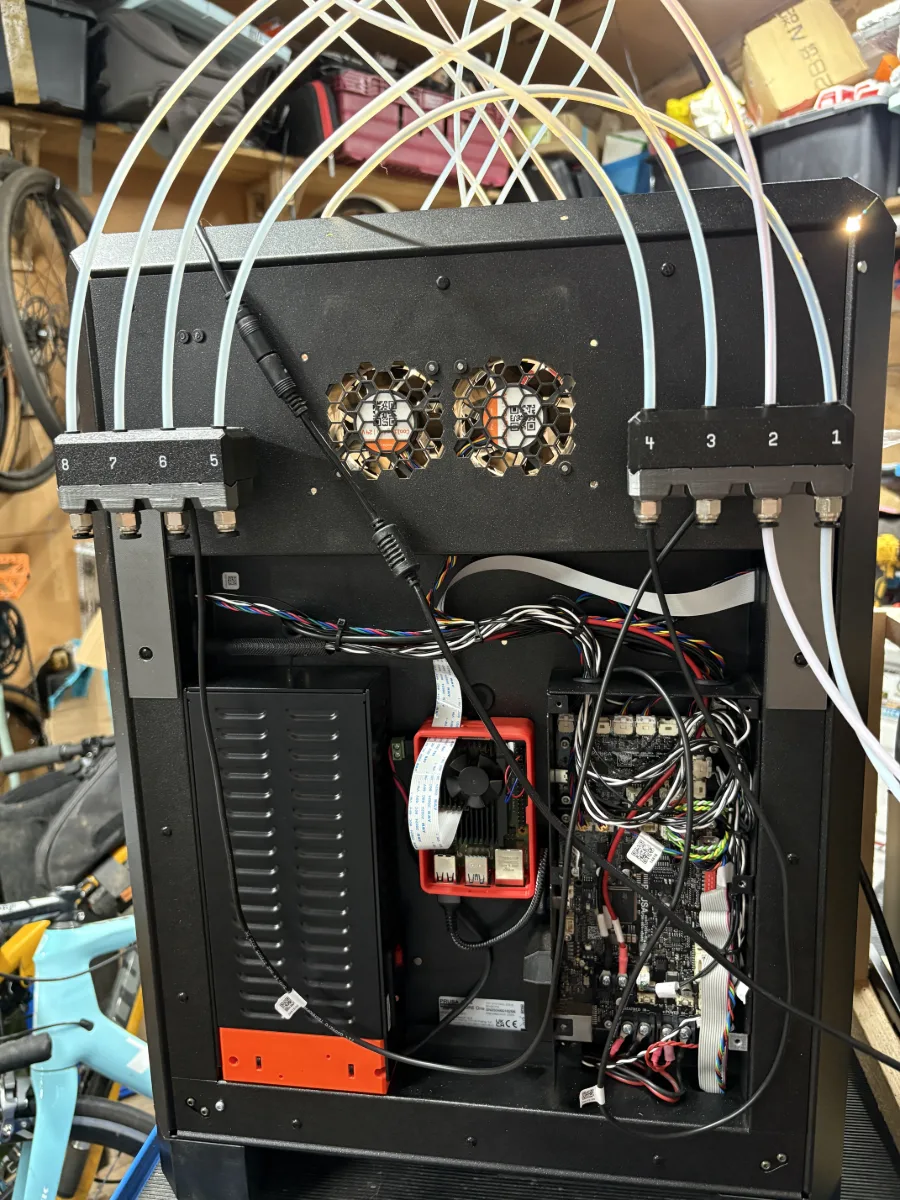

Print the bracket PETG or stronger, PLA might be too brittle and will be exposed to the heat from the printer case. I recommend at least 4 walls, 4 top and 4 bottom, 20% Gyroid infill to endure strength around the screw holes. STEP 1: Start by removing the four plastic rivets circled on the rear. STEP 2: Insert the self tapping torx screw, that came with the sensor, through the mount. STEP 3: Using the torx screw, attach the filament sensor to the mount. The sensor will fit snugly into the notch on the mount and the screw holes will be aligned. STEP 4: Insert the plastic rivets through the top and bottom hole on the mount. TIP:Remove the centre piece from the rivet to make it easier to install. STEP 5: Press the mount and the plastic rivets into the holes in the printer frame. Reinsert the centre piece into the plastic rived. This might be a little hard to push in so be careful not to bend the rivet out of shape. It will pop in securely and hold the mount to the printer frame. STEP 6: If you have an 8 tool printer, repeat the process for the other side.
